Rolls Surrette
Rolls Surrette 12-CS13P 12VDC 445Ah Deep Cycle Battery
$1,507.33 USD
SKU: 12-CS13P
- Capacity: 445Ah
- Product Type: Renewable Energy
Quantity
1
Shipping & Returns Policy
Orders are processed within 24-72 business hours. Freight items ship from the closest available warehouse; a Freight Terms & Conditions form is sent for review and signature before dispatch. Returns follow our Return Merchandise Authorization (RMA) policy.
Description
Rolls Surrette Battery 12 CS 13P
Designed in compliance with applicable BCI,DIN,BS and IEC standards.
Tested in compliance to BCI and IEC standards.
Technical Specifications:
- Weight: 136 kg / 300 lbs
- Length: 492 mm / 19.38"
- Width: 273 mm / 10.75"
- Height Incl. Term.: 425 mm / 16.75"
- Electrolyte Reserve: 8.6 mm / 3.38"
- Handles : Integrated Top Mount
- Series: 5000
- Volts: 12
- Design: SPEC
- Cells: 6
- Plates/Cell: 131
- Terminal Type: Flag L
- Included Hardware: S/S Hex Cap Screw, Nut, Lock & Flat Washer
- Size & Thread: 5/16"-18
- Charge Voltage Range: 14.7-15 V/cell @ 25°C (77°F)
- Recommended Charge Current: 45 A
- Maximum Charge Current: 70 A
- Self-Discharge Rate: 5%-10% per month at 25°C (77°F)
- Cold Crank Amps (CCA) 0°F / -18°C: 1045
- Marine Crank Amps (MCA) 32°F / 0°C: 1306
- Reserve Capacity (RC @ 25A): 1068 Minutes
- Reserve Capacity (RC @ 75A): 356 Minutes
- Capacity AMP @ 20 Hour Rate: 375 Ah
Resources

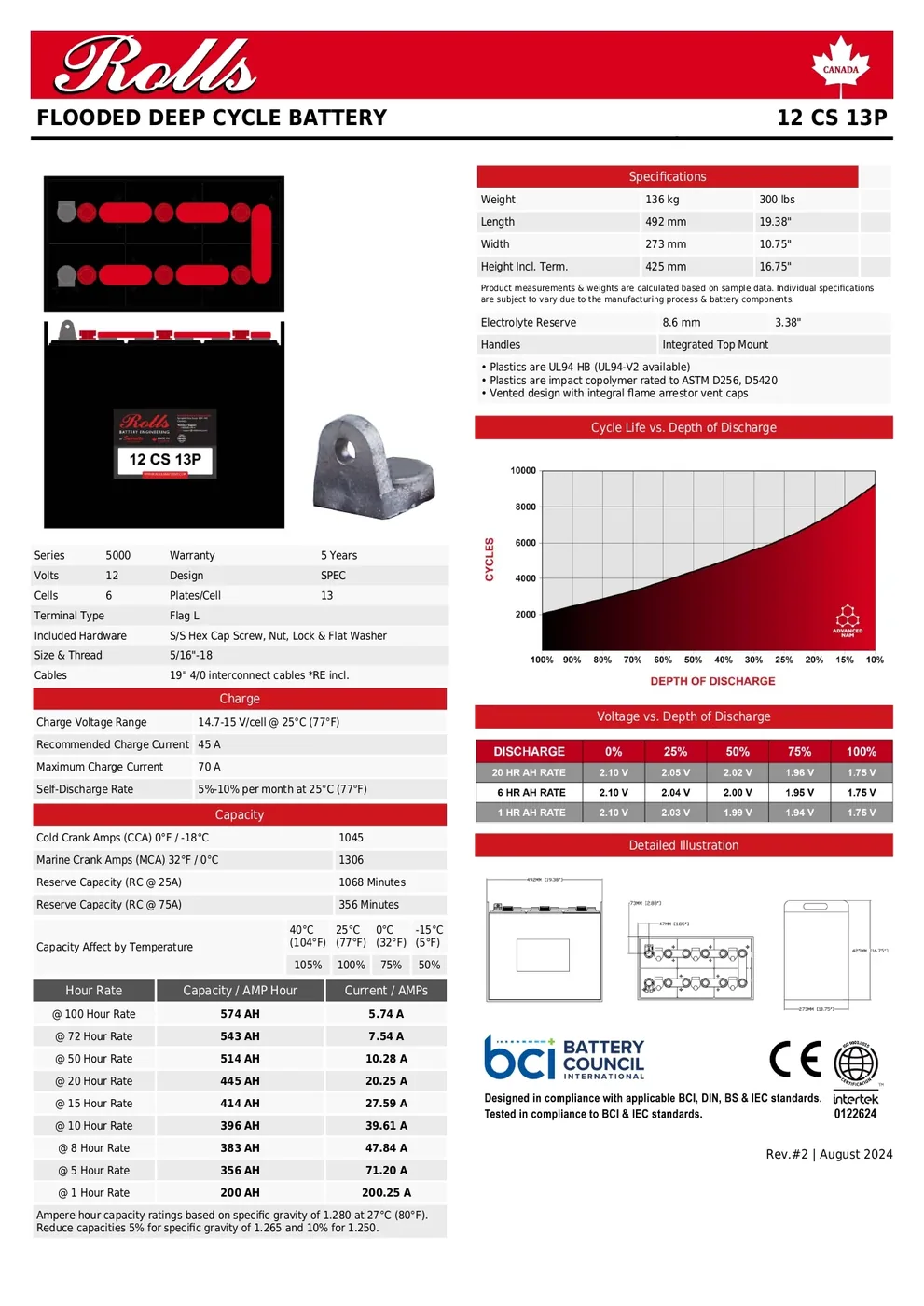

Datasheet
Installation Guide
No installation guide available. Email support@novaasolaris.com for file request.
Warranty
5 Years Warranty
