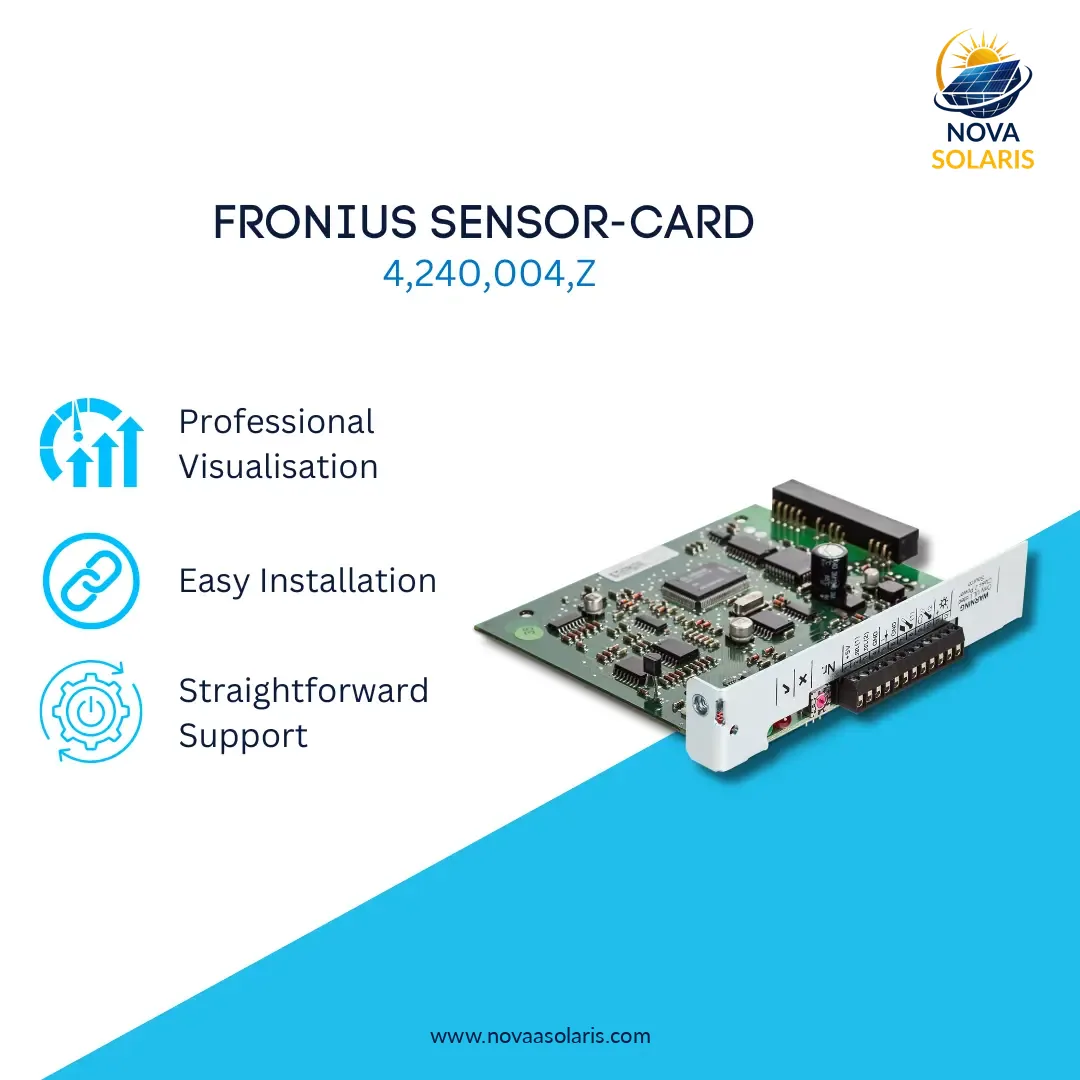

Fronius Sensor-Card retrofit IG
SKU: 4,240,004,Z
- Product Type: Monitoring Accessory
Shipping & Returns Policy
Orders are processed within 24-72 business hours. Freight items ship from the closest available warehouse; a Freight Terms & Conditions form is sent for review and signature before dispatch. Returns follow our Return Merchandise Authorization (RMA) policy.
Description

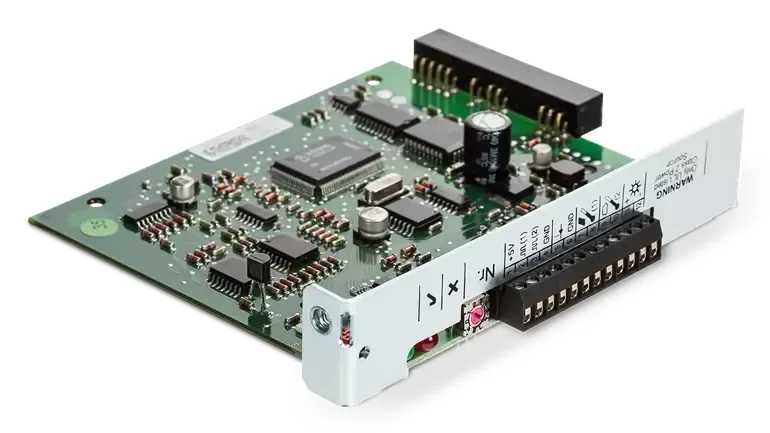

Fronius Sensor-Card retrofit IG
With the Fronius Sensor Card / Box, up to six sensors for measuring irradiation, ambient temperature, module temperature, wind speed, etc. can be integrated into the Fronius system monitoring package. Even when measuring irradiation levels and module temperature, you can quickly identify anomalies in the system output to keep performance at a consistently high level. You can choose between a box and a card.
Technical Specifications
- Length: 140 mm
- Width: 100 mm
- Height: 26 mm
- Weight: 0.3 kg
- Supply voltage: 12 V DC
- Energy consumption: 1.1 W
- Max. cable length (distance: Sensor Card/Box to sensor): 3 m
Channel irradiation
- Measuring range: 0 - 100 mV / 0 - 200 mV / 0 - 1 V
- Accuracy 3% from meter reading
Channel power input
- Measuring range: 0 - 20 mA / 4 - 20 mA
- Accuracy: 5% from meter reading
Channels D1 D2
- Max. voltage level: 5.5 V
- Max. Frequency: 2500 Hz
- Min. pulse duration: 0.25 ms
- Operating point “OFF” (“LOW”): 0 - 0,5 V
- Operating point “ON” (“HIGH”): 3 - 5,5 V
Channels T1 T2
- Sensors: PT1000
- Measuring range: -25°C - +75°C
- Accuracy: 0.5 °C
- Resolution: 1 °C
Resources

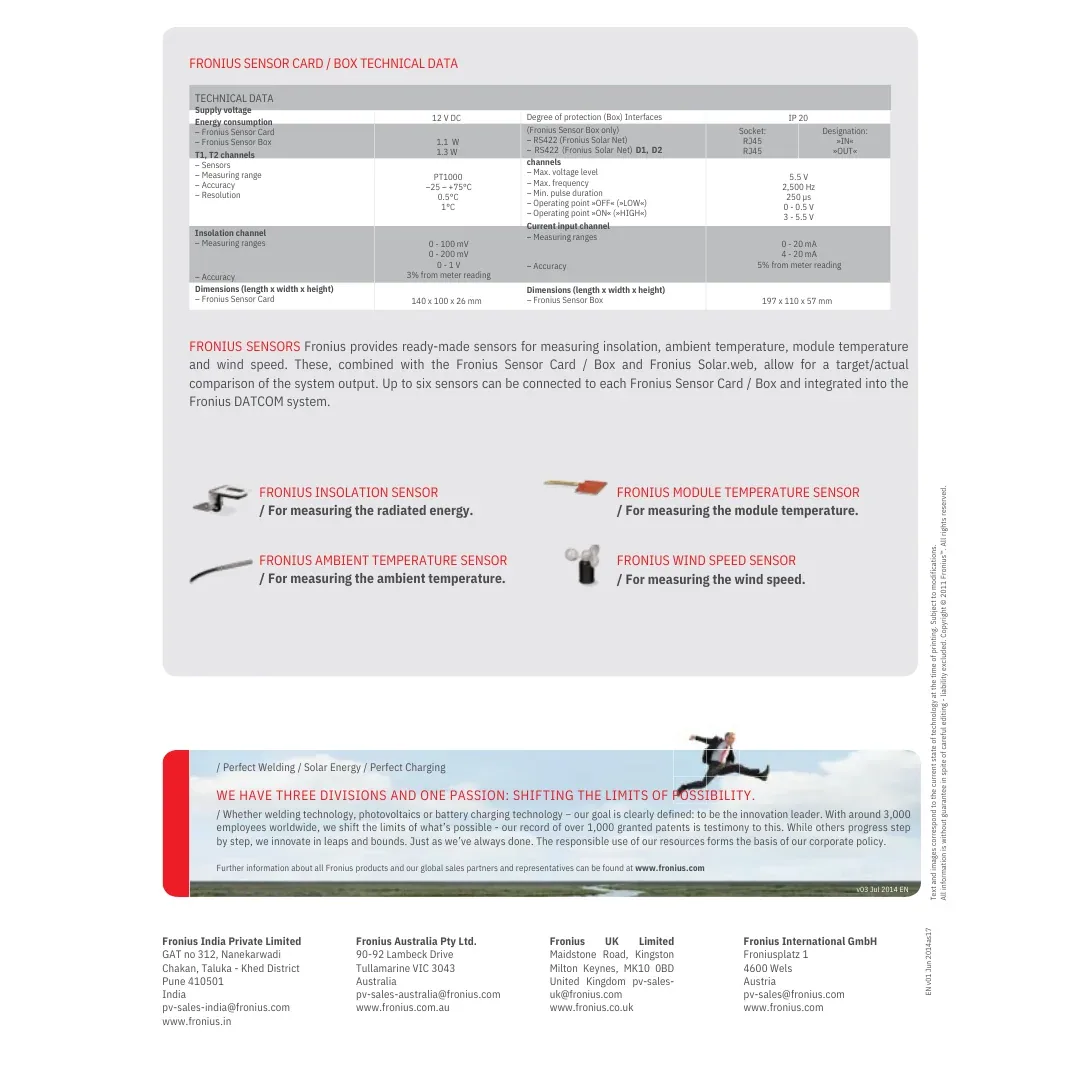

Datasheet
No installation guide available. Email support@novaasolaris.com for file request.
Quick Installation Guide
✔️ Quick Installation Guide
