Rolls Surrette 4-KS-25P 4VDC 1404Ah Deep Cycle Battery
Rolls Surrette

Rolls Surrette 4-KS-25P 4VDC 1404Ah Deep Cycle Battery

$1,599.33 USD

SKU: 4-KS-25P

  • Capacity: 1404Ah
  • Product Type: Renewable Energy
Quantity
1
Shipping & Returns Policy

Orders are processed within 24-72 business hours. Freight items ship from the closest available warehouse; a Freight Terms & Conditions form is sent for review and signature before dispatch. Returns follow our Return Merchandise Authorization (RMA) policy.

Product description

Description

Rolls Surrette Battery 4 KS 21P

Designed in compliance with applicable BCI,DIN,BS and IEC standards.
Tested in compliance to BCI and IEC standards.

Technical Specifications:

  • Weight: 121 kg / 267 lbs
  • Length: 400 mm / 15.75"
  • Width: 238 mm / 9.38"
  • Height Incl. Term.: 629 mm / 24.75"
  • Electrolyte Reserve: 95 mm / 3.75"
  • Container (Inner): Polypropylene
  • Cover (Inner): Polypropylene - heat sealed to inner container
  • Container (Outer): High Density Polyethylene
  • Cover (Outer): High Density Polyethylene snap fit to outer container
  • Handles: Molded
  • Series: 5000
  • Volts: 4
  • Design: SPEC
  • Cells: 2
  • Plates/Cell : 21
  • Terminal Type: Flag
  • Included Hardware: S/S Hex Cap Screw, Nut, Lock & Flat Washer
  • Size & Thread: 5/16"-18
  • Cables: 19" 4/0 interconnect cables *RE incl.
  • Charge Voltage Range: 2.45-2.5 V/cell @ 25°C (77°F)
  • Float Voltage Range: 2.25 V/cell @ 25°C (77°F)
  • Self-Discharge Rate: 5%-10% per month at 25°C (77°F)
  • Cold Crank Amps (CCA) 0°F / -18°C: 2754
  • Marine Crank Amps (MCA) 32°F / 0°C: 3443
  • Reserve Capacity (RC @ 25A): 2756 Minutes
  • Reserve Capacity (RC @ 75A): 919 Minutes * ### Description

Rolls Surrette Battery 4 KS 21P

Designed in compliance with applicable BCI,DIN,BS and IEC standards.
Tested in compliance to BCI and IEC standards.

Technical Specifications:

  • Weight: 121 kg / 267 lbs
  • Length: 400 mm / 15.75"
  • Width: 238 mm / 9.38"
  • Height Incl. Term.: 629 mm / 24.75"
  • Electrolyte Reserve: 95 mm / 3.75"
  • Container (Inner): Polypropylene
  • Cover (Inner): Polypropylene - heat sealed to inner container
  • Container (Outer): High Density Polyethylene
  • Cover (Outer): High Density Polyethylene snap fit to outer container
  • Handles: Molded
  • Series: 5000
  • Volts: 4
  • Design: SPEC
  • Cells: 2
  • Plates/Cell : 21
  • Terminal Type: Flag
  • Included Hardware: S/S Hex Cap Screw, Nut, Lock & Flat Washer
  • Size & Thread: 5/16"-18
  • Cables: 19" 4/0 interconnect cables *RE incl.
  • Charge Voltage Range: 2.45-2.5 V/cell @ 25°C (77°F)
  • Float Voltage Range: 2.25 V/cell @ 25°C (77°F)
  • Self-Discharge Rate: 5%-10% per month at 25°C (77°F)
  • Cold Crank Amps (CCA) 0°F / -18°C: 2754
  • Marine Crank Amps (MCA) 32°F / 0°C: 3443
  • Reserve Capacity (RC @ 25A): 2756 Minutes
  • Reserve Capacity (RC @ 75A): 919 Minutes
  • Capacity AMP @ 20 Hour Rate: 1148 Ah
Resources

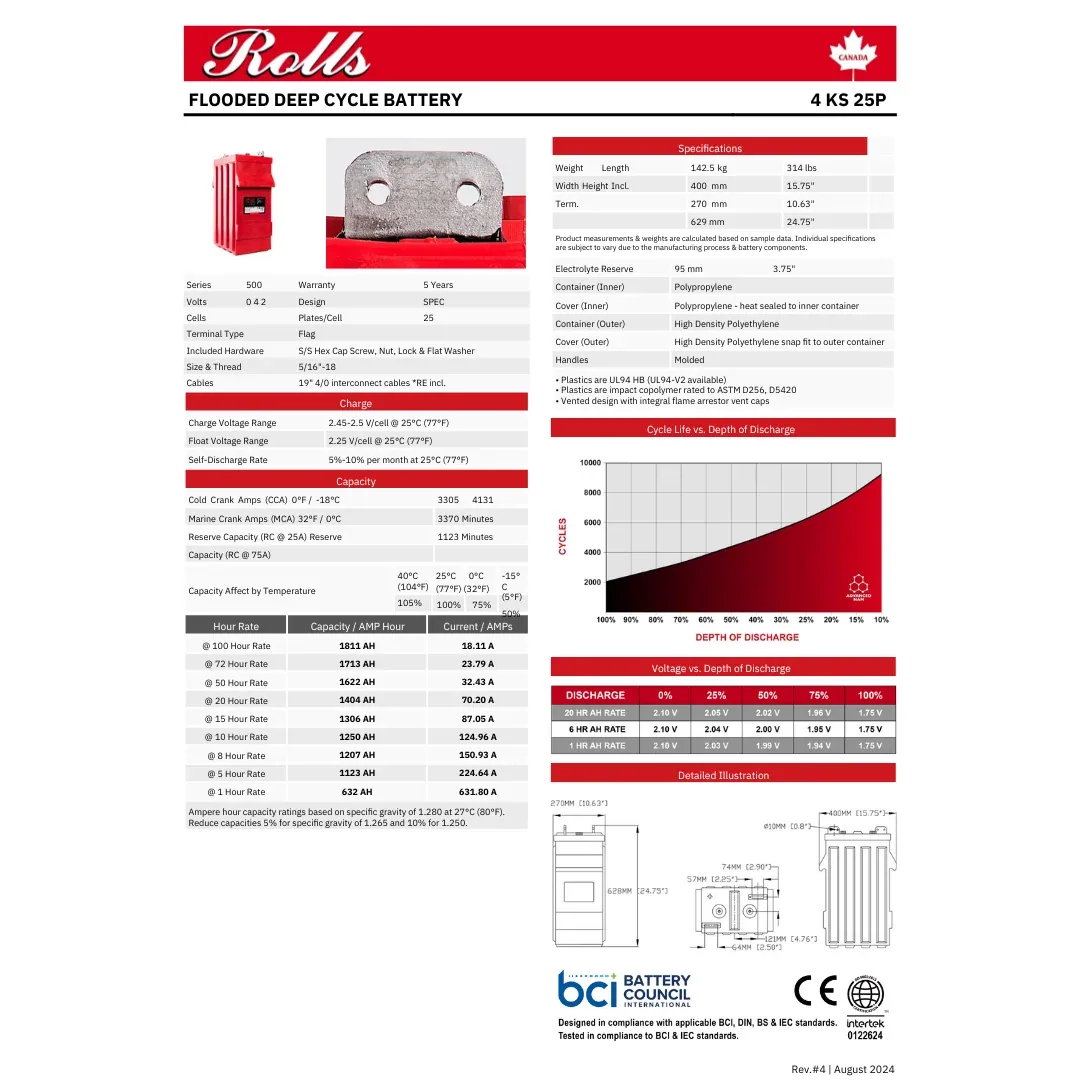

Datasheet

Quick Installation Guide

No installation guide available. Email support@novaasolaris.com for file request.

Warranty

5 Years Warranty.

Rolls Surrette Battery 4 KS 25P

Designed in compliance with applicable BCI,DIN,BS and IEC standards.
Tested in compliance to BCI and IEC standards.

Technical Specifications:

  • Weight: 142.5 kg / 314 lbs
  • Length: 400 mm / 15.75"
  • Width: 270 mm / 10.63"
  • Height Incl. Term.: 629 mm / 24.75"
  • Electrolyte Reserve: 95 mm / 3.75"
  • Container (Inner): Polypropylene
  • Cover (Inner): Polypropylene - heat sealed to inner container
  • Container (Outer): High Density Polyethylene
  • Cover (Outer): High Density Polyethylene snap fit to outer container
  • Handles: Molded
  • Series: 5000
  • Volts: 4
  • Design: SPEC
  • Cells: 2
  • Plates/Cell : 25
  • Terminal Type: Flag
  • Included Hardware: S/S Hex Cap Screw, Nut, Lock & Flat Washer
  • Size & Thread: 5/16"-18
  • Cables: 19" 4/0 interconnect cables *RE incl.
  • Charge Voltage Range: 2.45-2.5 V/cell @ 25°C (77°F)
  • Float Voltage Range: 2.25 V/cell @ 25°C (77°F)
  • Self-Discharge Rate: 5%-10% per month at 25°C (77°F)
  • Cold Crank Amps (CCA) 0°F / -18°C: 3305
  • Marine Crank Amps (MCA) 32°F / 0°C: 4131
  • Reserve Capacity (RC @ 25A): 3370 Minutes
  • Reserve Capacity (RC @ 75A): 1123 Minutes
  • Capacity AMP @ 20 Hour Rate: 1404 Ah
Resources

Datasheet

Quick Installation Guide

No installation guide available. Email support@novaasolaris.com for file request.

Warranty

5 Years Warranty.
