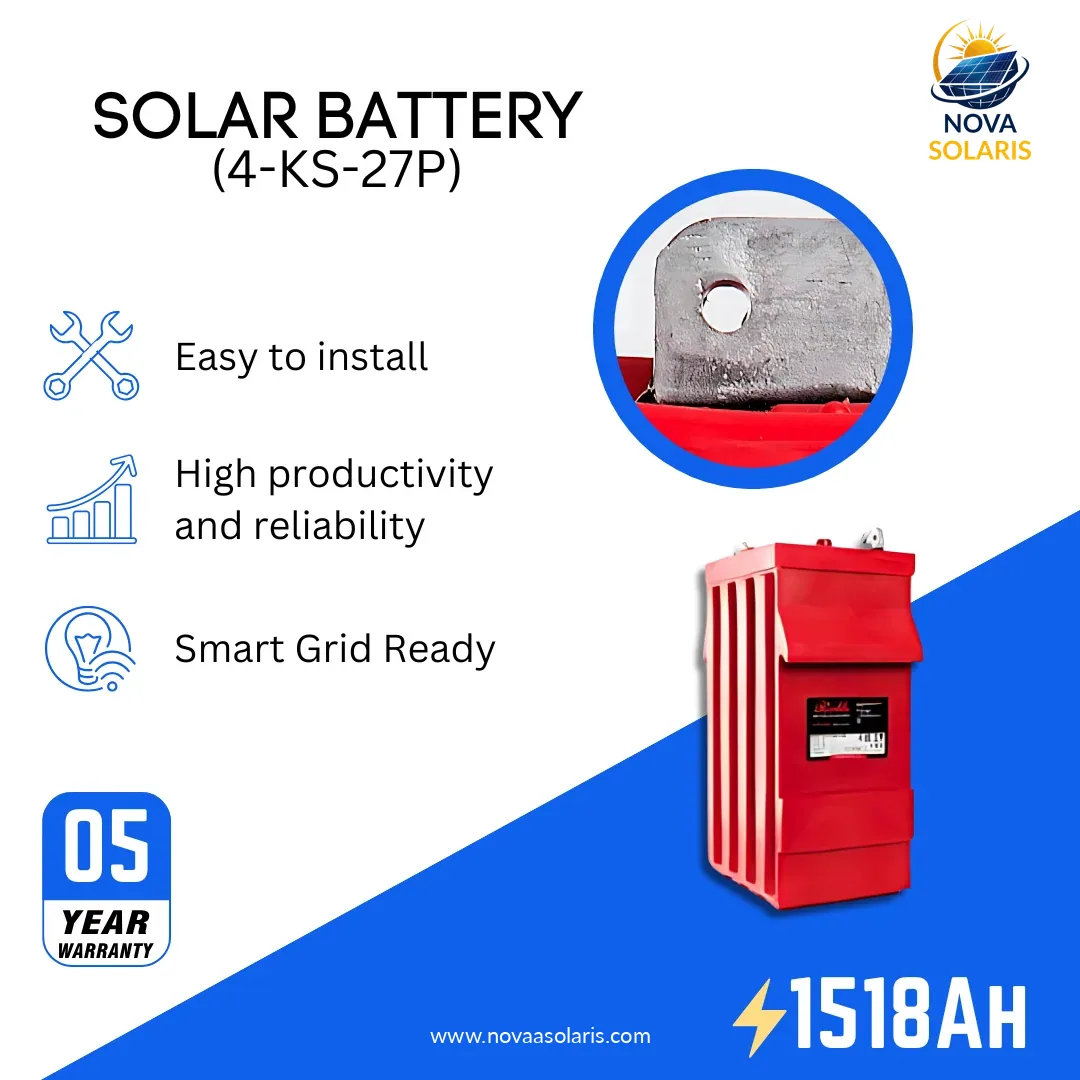

Rolls Surrette 4-KS-27P 4VDC 1518Ah Deep Cycle Battery
$1,713.39 USD
SKU: 4-KS-27P
- Capacity: 1518Ah
- Product Type: Renewable Energy
Quantity
1
Shipping & Returns Policy
Orders are processed within 24-72 business hours. Freight items ship from the closest available warehouse; a Freight Terms & Conditions form is sent for review and signature before dispatch. Returns follow our Return Merchandise Authorization (RMA) policy.
Description
Rolls Surrette Battery 4 KS 27P
Designed in compliance with applicable BCI,DIN,BS and IEC standards.
Tested in compliance to BCI and IEC standards.
Technical Specifications:
- Weight: 153.5 kg / 338.5 lbs
- Length: 400 mm / 15.75"
- Width: 270 mm / 10.63"
- Height Incl. Term.: 629 mm / 24.75"
- Electrolyte Reserve: 95 mm / 3.75"
- Container (Inner): Polypropylene
- Cover (Inner): Polypropylene - heat sealed to inner container
- Container (Outer): High Density Polyethylene
- Cover (Outer): High Density Polyethylene snap fit to outer container
- Handles: Molded
- Series: 5000
- Volts: 4
- Design: SPEC
- Cells: 2
- Plates/Cell : 27
- Terminal Type: Flag
- Included Hardware: S/S Hex Cap Screw, Nut, Lock & Flat Washer
- Size & Thread: 5/16"-18
- Cables: 19" 4/0 interconnect cables *RE incl.
- Charge Voltage Range: 2.45-2.5 V/cell @ 25°C (77°F)
- Float Voltage Range: 2.25 V/cell @ 25°C (77°F)
- Self-Discharge Rate: 5%-10% per month at 25°C (77°F)
- Cold Crank Amps (CCA) 0°F / -18°C: 3580
- Marine Crank Amps (MCA) 32°F / 0°C: 4475
- Reserve Capacity (RC @ 25A): 3644 Minutes
- Reserve Capacity (RC @ 75A): 1215 Minutes
- Capacity AMP @ 20 Hour Rate: 1518 Ah
Resources

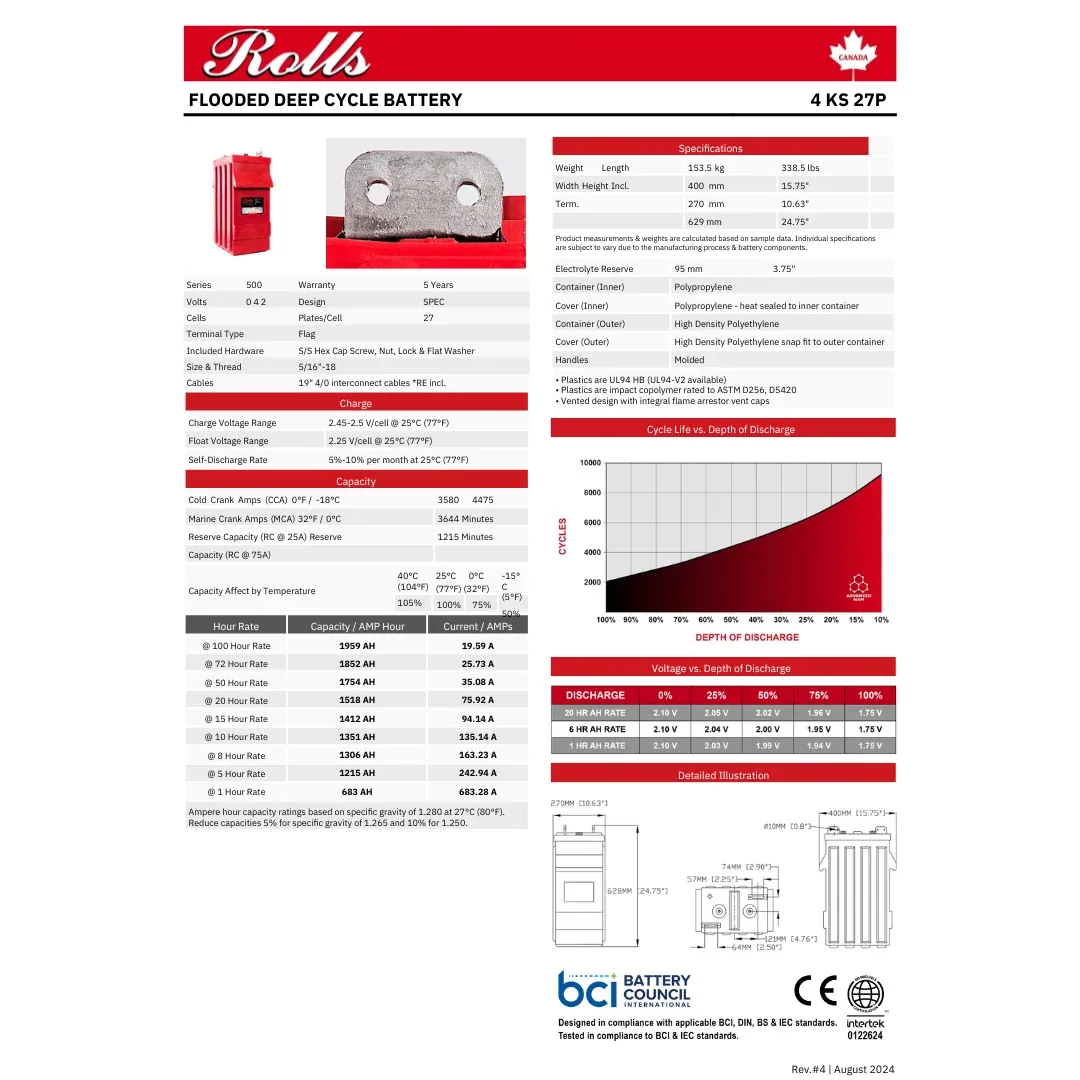

Datasheet
Quick Installation Guide
No installation guide available. Email support@novaasolaris.com for file request.
Warranty
5 Years Warranty.
