APsystems
APSystems 415002 RSD-S-PLC Rapid Shutdown
$38.10 USD
SKU: 415002
Quantity
1
Shipping & Returns Policy
Orders are processed within 24-72 business hours. Freight items ship from the closest available warehouse; a Freight Terms & Conditions form is sent for review and signature before dispatch. Returns follow our Return Merchandise Authorization (RMA) policy.
Description

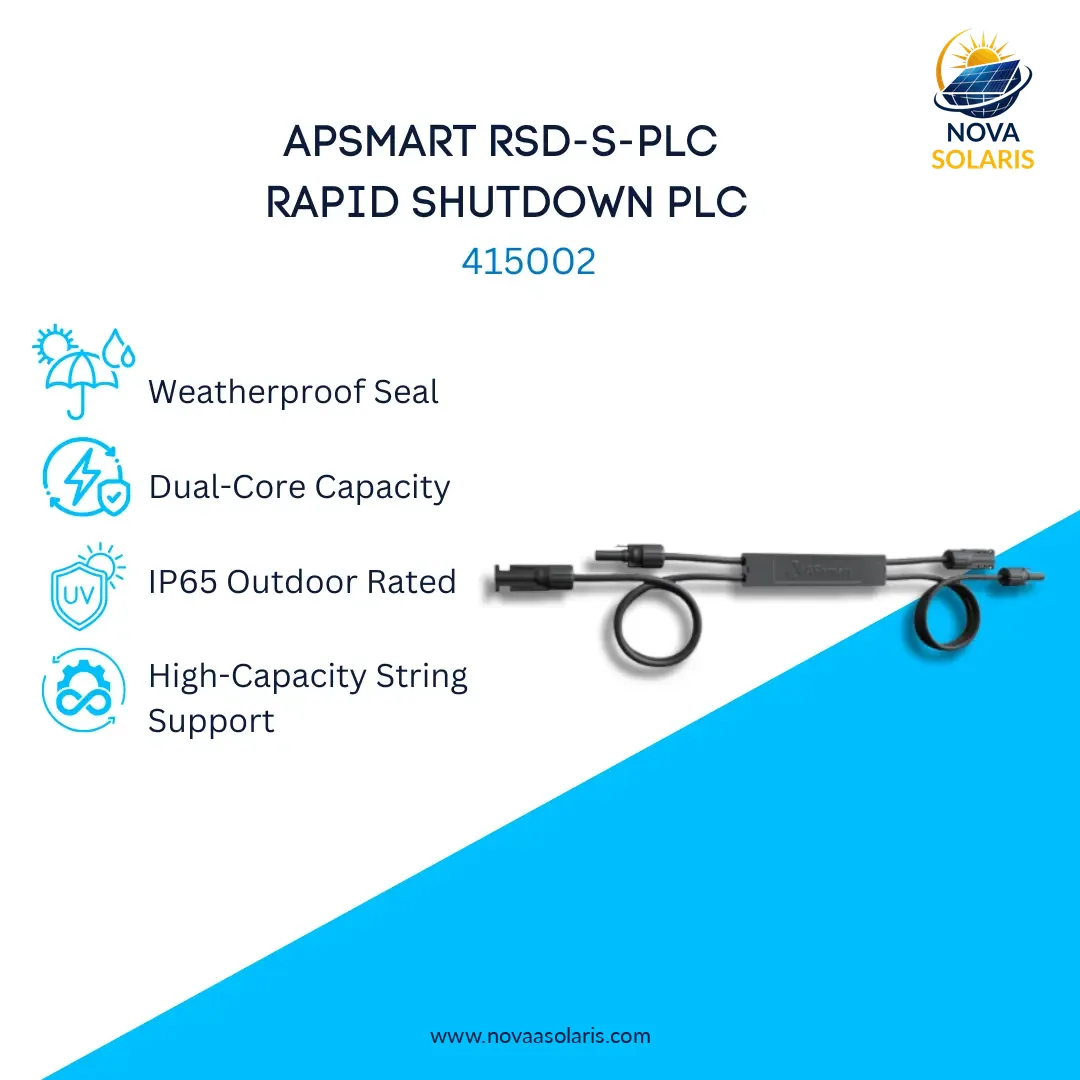

APSystems 415002 RSD-S-PLC Rapid Shutdown
The APsmart Rapid Shutdown System Transmitter-PLC is part of a rapid shutdown solution whenpairedwithAPsmart RSD-S-PLC, a PV module rapid shutdown unit. While powered on, the Transmitter-PLCsends asignal tothe RSD-S-PLC units to keep their PV modules connected and supplying energy.
Technical Specifications:
- Shipping Dimensions: 12.09 x 8.94 x 7.83 in
- Case Qty: 10 Pcs
- Input Voltage: 12 VDC
- Max. Current: 150A Per core
- Max. System Voltage: 1500VDC
- Internal Opening for Wires/Outside Dimensions: ~29mm/65mm
- Max. Supported PV Modules per String: 30 modules
- Enclosure Environmental Rating: IP65
Resources
Datasheet
✔️ Datasheet
Quick Installation Guide
✔️ Quick Installation Guide
Warranty
