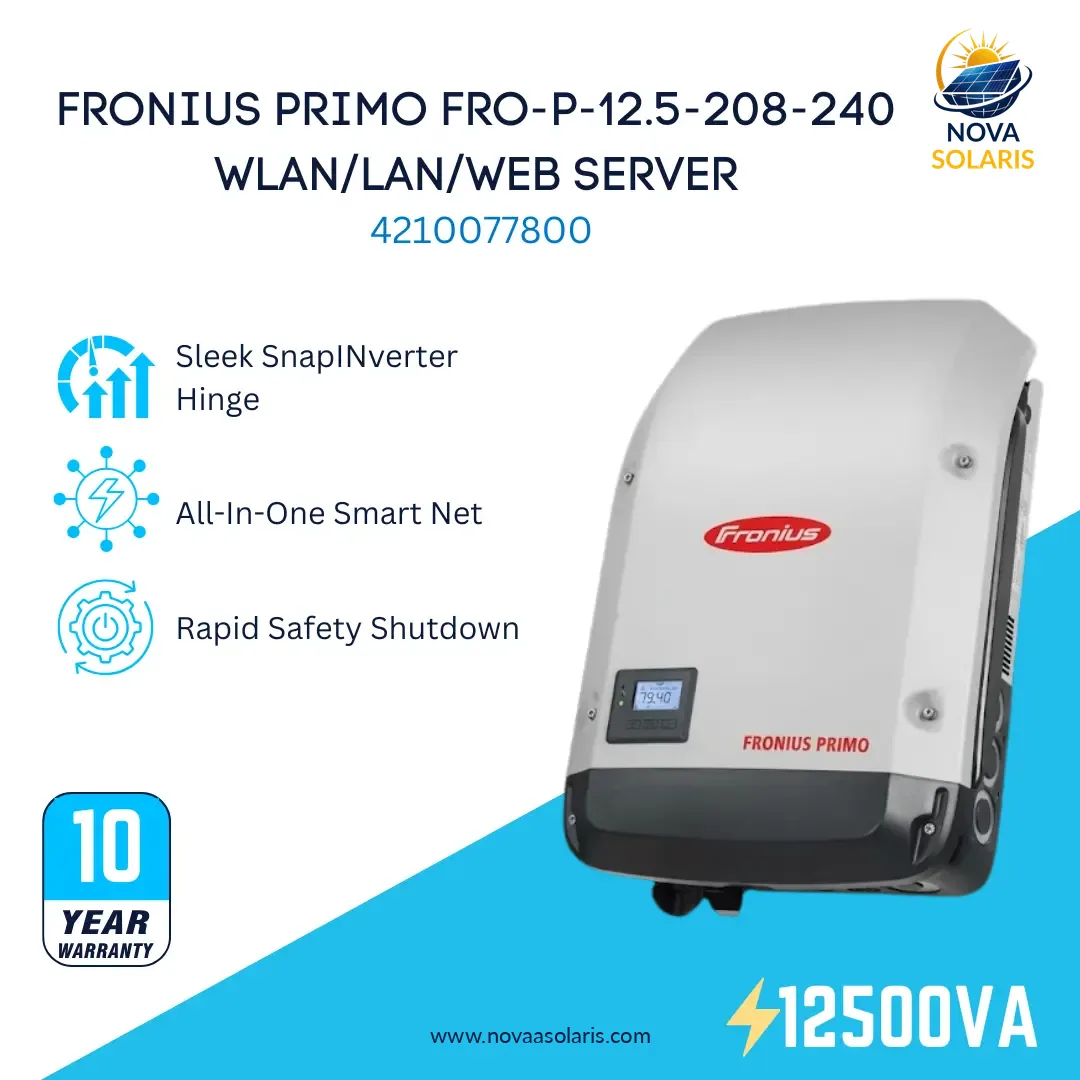

Fronius Primo FRO-P-12.5-208-240 WLAN/LAN/web server

Fronius Primo FRO-P-12.5-208-240 WLAN/LAN/web server

The Fronius Primo inverter series has been specially developed for the demands of the North American market. With power categories from 3.8 to 15 kW, the single-phase, transformerless device is the perfect inverter for private households. Its innovative SuperFlex Design provides maximum flexibility in system design, while the SnapINverter mounting system makes installation and maintenance as easy as possible. The communication package included as standard, with WLAN, energy management, several interfaces and much more besides, makes the Fronius Primo a communicative inverter for home owners. Standard equipment also includes a built-in arc detector (AFCI = Arc Fault Circuit Interrupter), in keeping with all other North American SnapINverters.

Technical Specifications:

• Number of MPP trackers: 2
• Recommended PV Power (kWp): 10.0 - 19.3 kW
• Max. usable input current: 33,0 / 18,0 A
• Max. usable input current total: (MPPT1 + MPPT2): 51 A
• Max. array short circuit current (1.5 * Imax): 49,5 / 27 A
• Nominal input voltage (Udc,r): 655 V
• DC input voltage range (Udc min - Udc max): 80 - 1000 V
• MPP voltage range (Umpp min - Umpp max): 260 - 800 V
• Max. input voltage: 1000 V
• Integrated DC string fuse holders: 4- and 4+ for MPPT 1 / no fusing required on MPPT 2
• Max. output power @ 240 V: 12.5 kVA
• Max. output power @ 208 V: 12.5 kVA
• Output configuration: 1~ NPE 208 / 240 V
• Frequency range: 45 - 66 Hz
• Frequency: 60 Hz
• Total harmonic distortion: < 2.5 %
• Power factor range: 0 - 1 ind./cap.
• Max. continuous output current 240 V: 52.1 A
• Max. continuous output current 208 V: 60.1 A
• OCPD/AC breaker size 208 V: 80 A
• Max. Efficiency: 97.9 %
• CEC efficiency 240 V: 96,5 %
• Weight: 82.45 lb.

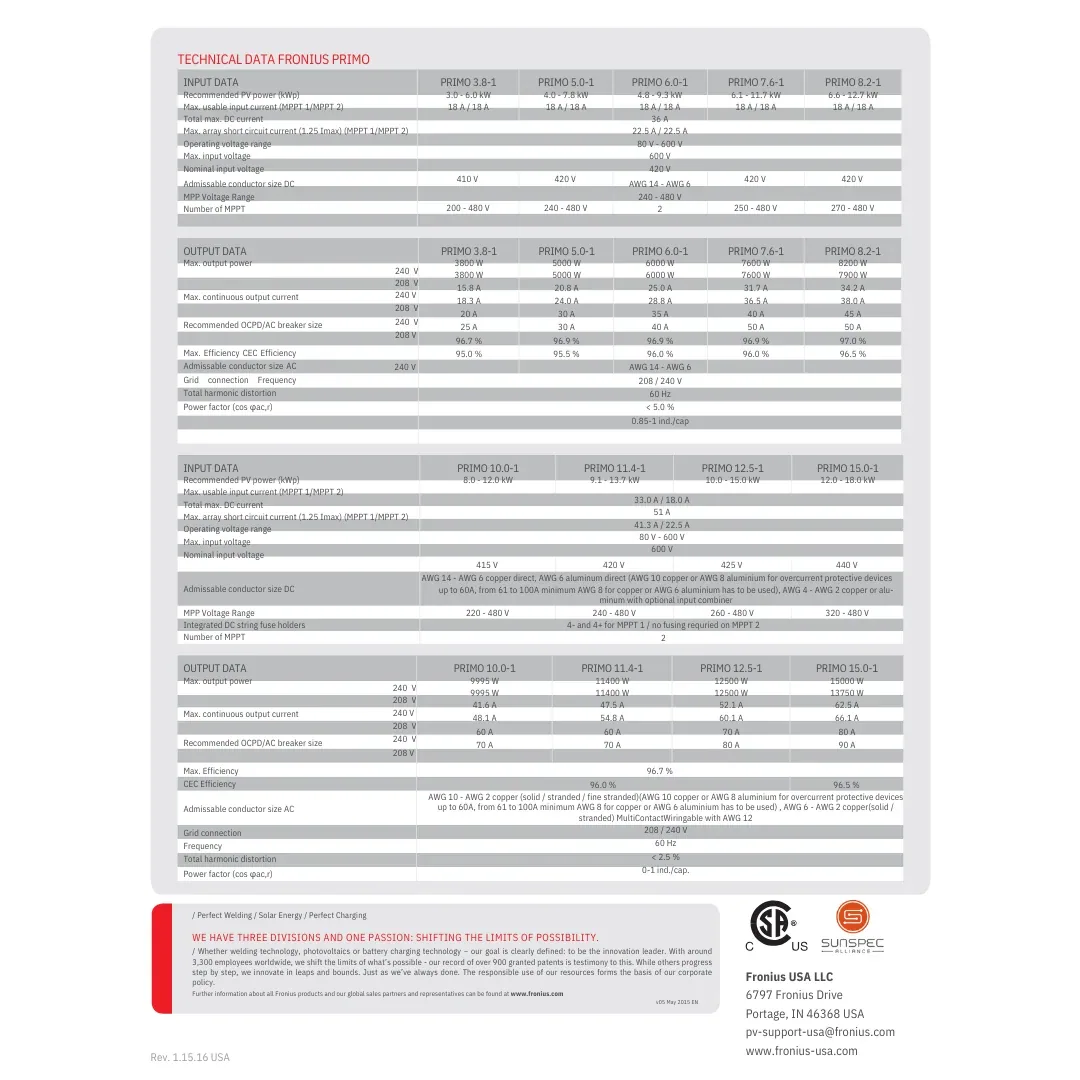

Datasheet

✔️ Datasheet

Quick Installation Guide

No installation guide available. Email support@novaasolaris.com for file request.

Warranty

10 Years Warranty
