Description

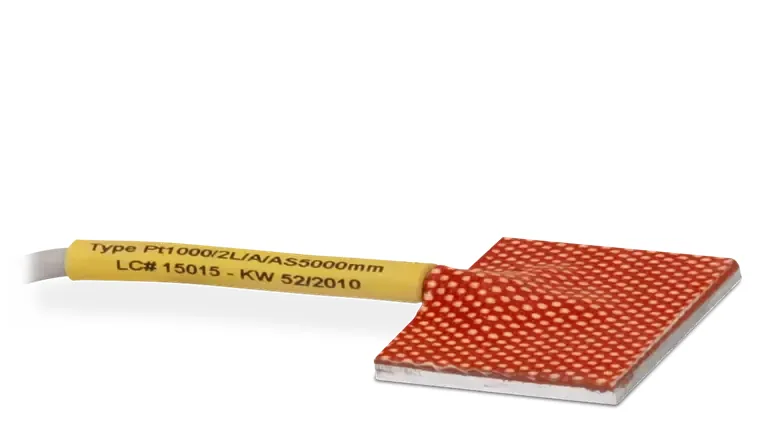

Fronius Module Temperature Sensor
This sensor is generally used to measure surface temperatures. By fastening the sensor to the rear of a solar module, it can accurately track the module's temperature, which plays a crucial role in determining its energy output. Monitoring these changes allows you to easily estimate and analyze the system's performance curve.
Technical Specifications:
- Dimension / length: 50 mm
- Sensor: PT1000
- Measuring range: -20°C - +150°C
- Tolerance: ±0.8°C (from -20°C to +100°C)
- Design: Self-adhesive sensor for measurements on surfaces, two-wire technology
- Connection cable: 3 m Cu cable, silicone-insulated, exposed ends, ferrules, UV-resistant
- Max. cable length (distance: Sensor Card/Box to sensor): 3 m/li>
Resources

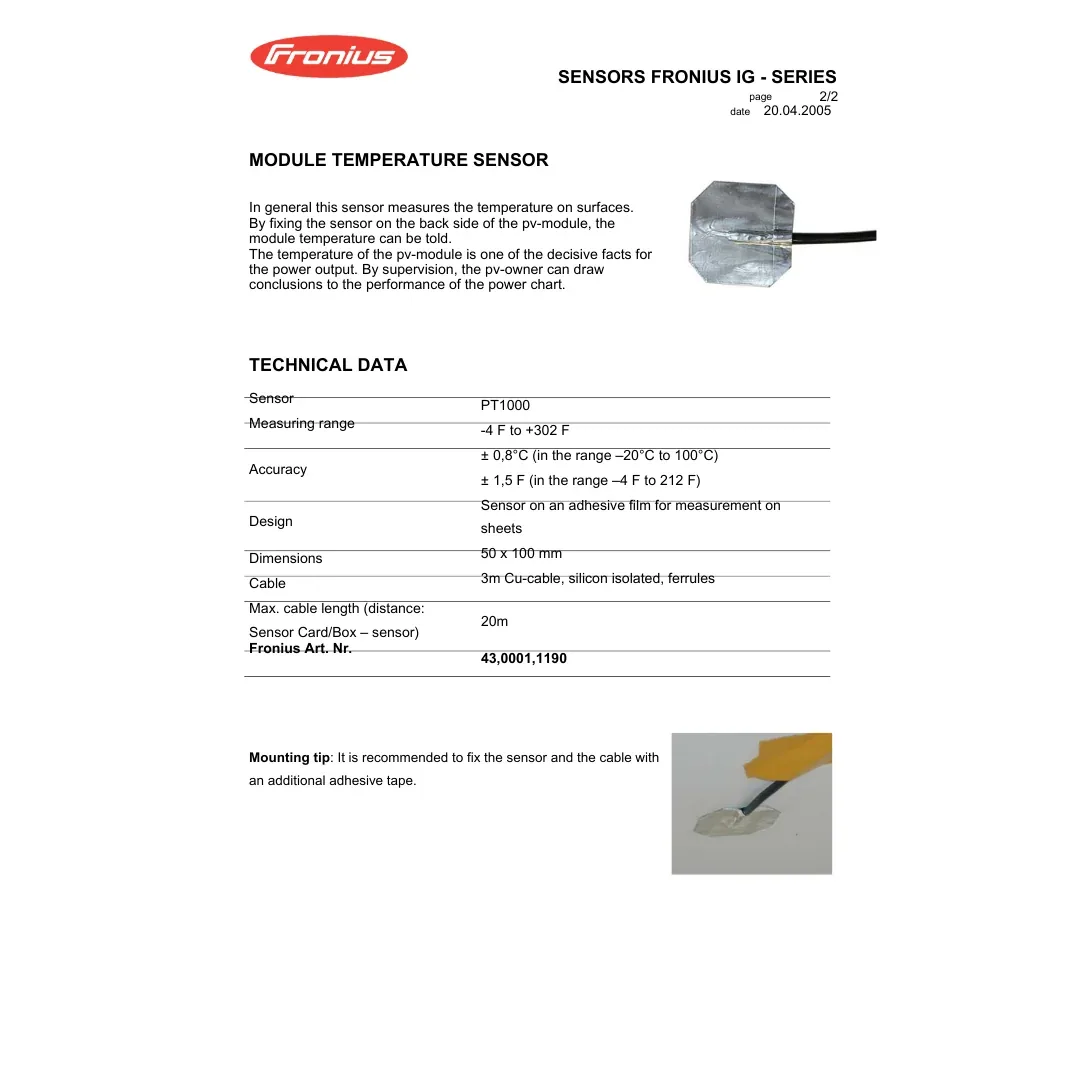

Datasheet
