Fronius Smart Meter WR 100 - 600

$315.37 USD

SKU: 4300013591

Product Type: Monitoring Accessory

Quantity

Shipping & Returns Policy

Orders are processed within 24-72 business hours. Freight items ship from the closest available warehouse; a Freight Terms & Conditions form is sent for review and signature before dispatch. Returns follow our Return Merchandise Authorization (RMA) policy.

Product description

Fronius

Description

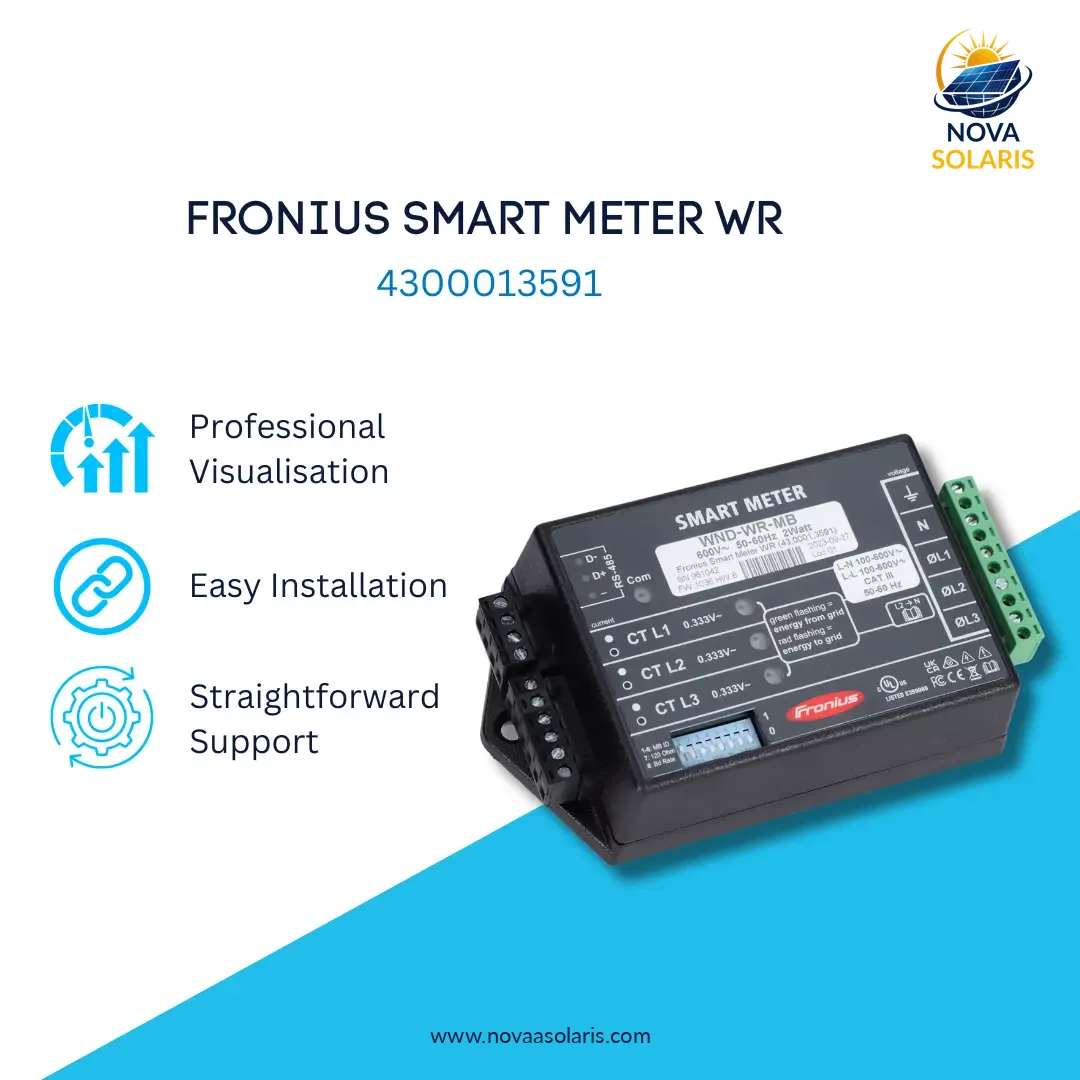

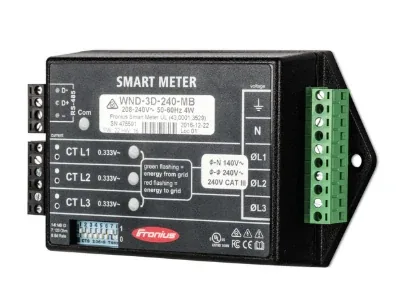

Fronius Smart Meter WR 100 - 600

Bi-directional energy meter for feed-in management and energy consumption monitoring
Introducing the Fronius Smart Meter WR, a smart two-way energy meter. Thanks to its high accuracy and lightning-fast communication, this meter is perfect for controlling how much solar power you send back to the grid and managing zero-export systems. Working together with the Fronius Solar.web app, the Smart Meter gives you a clear, detailed breakdown of exactly how your home or business uses energy.

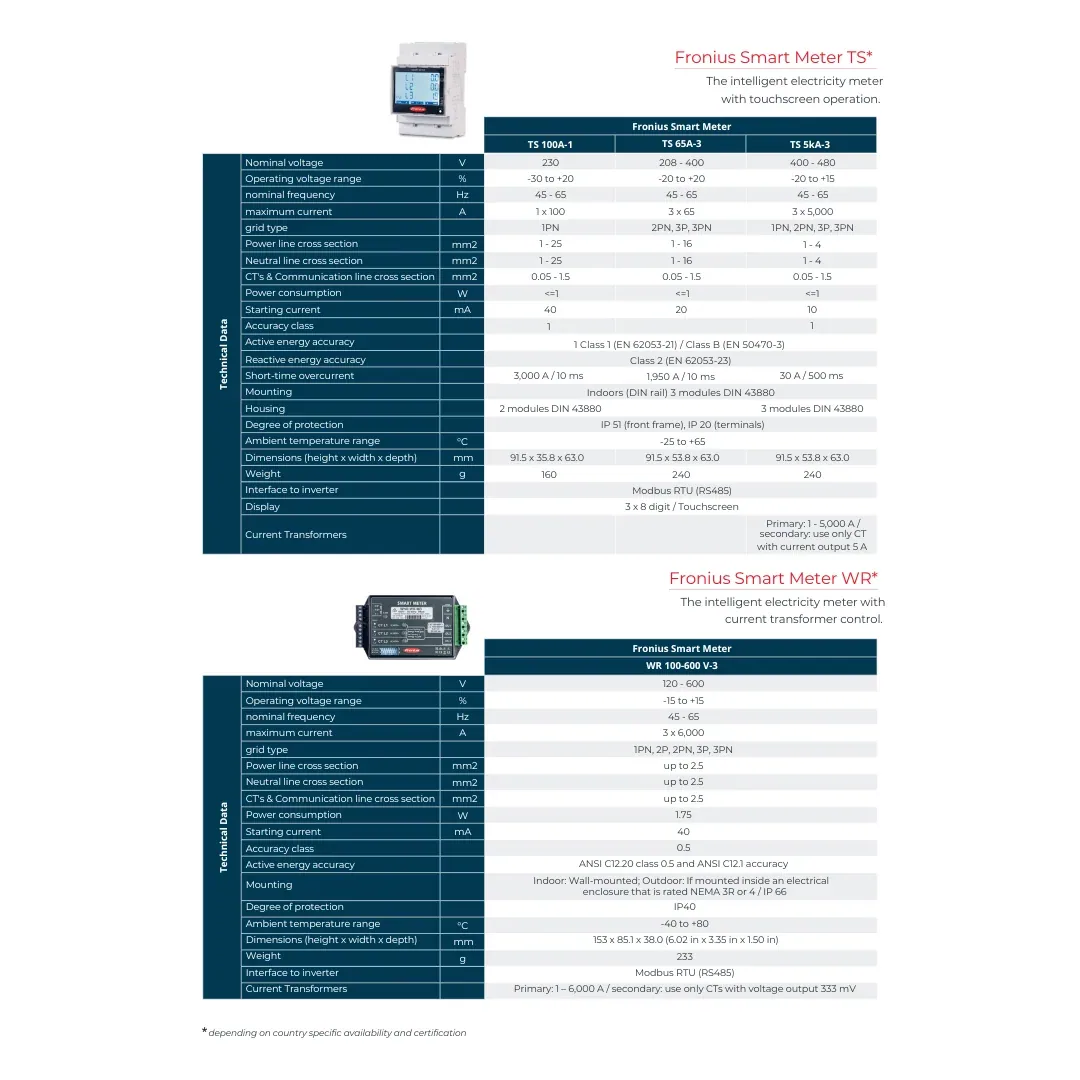

Technical Specifications

Nominal voltage: 120 - 600 V
Operating voltage range: -15 to +15 %
nominal frequency: 45 - 65 Hz
maximum current: 3 x 6,000 A
Grid type: 1PN, 2P, 2PN, 3P, 3PN
Power line cross section: up to 2.5 mm2
Neutral line cross section: up to 2.5 mm2
CT's & Communication line cross section: up to 2.5 mm2
Power consumption: 1.75 W
Starting current: 40 mA
Accuracy class: ANSI C12.20 class 0.5 and ANSI C12.1 accuracy
Mounting: (Indoor) Wall-mounted; Outdoor: If mounted inside an electrical enclosure that is rated NEMA 3R or 4 / IP 66
Degree of protection: IP40
Ambient temperature range: -40 to +80 °C
Dimensions (height x width x depth): 153 mm x 85.1 mm x 38.0 mm (
Weight: 233 G
Interface to inverter: Modbus RTU (RS485)
Current Transformers: Primary: 1 – 6,000 A / secondary: use only CTs with voltage output 333 mV
