Tigo 605-00200-00 200A, 2CTs, Energy Meter
$305.75 USD
SKU: 605-00200-00
Quantity
1
Shipping & Returns Policy
Orders are processed within 24-72 business hours. Freight items ship from the closest available warehouse; a Freight Terms & Conditions form is sent for review and signature before dispatch. Returns follow our Return Merchandise Authorization (RMA) policy.
Description

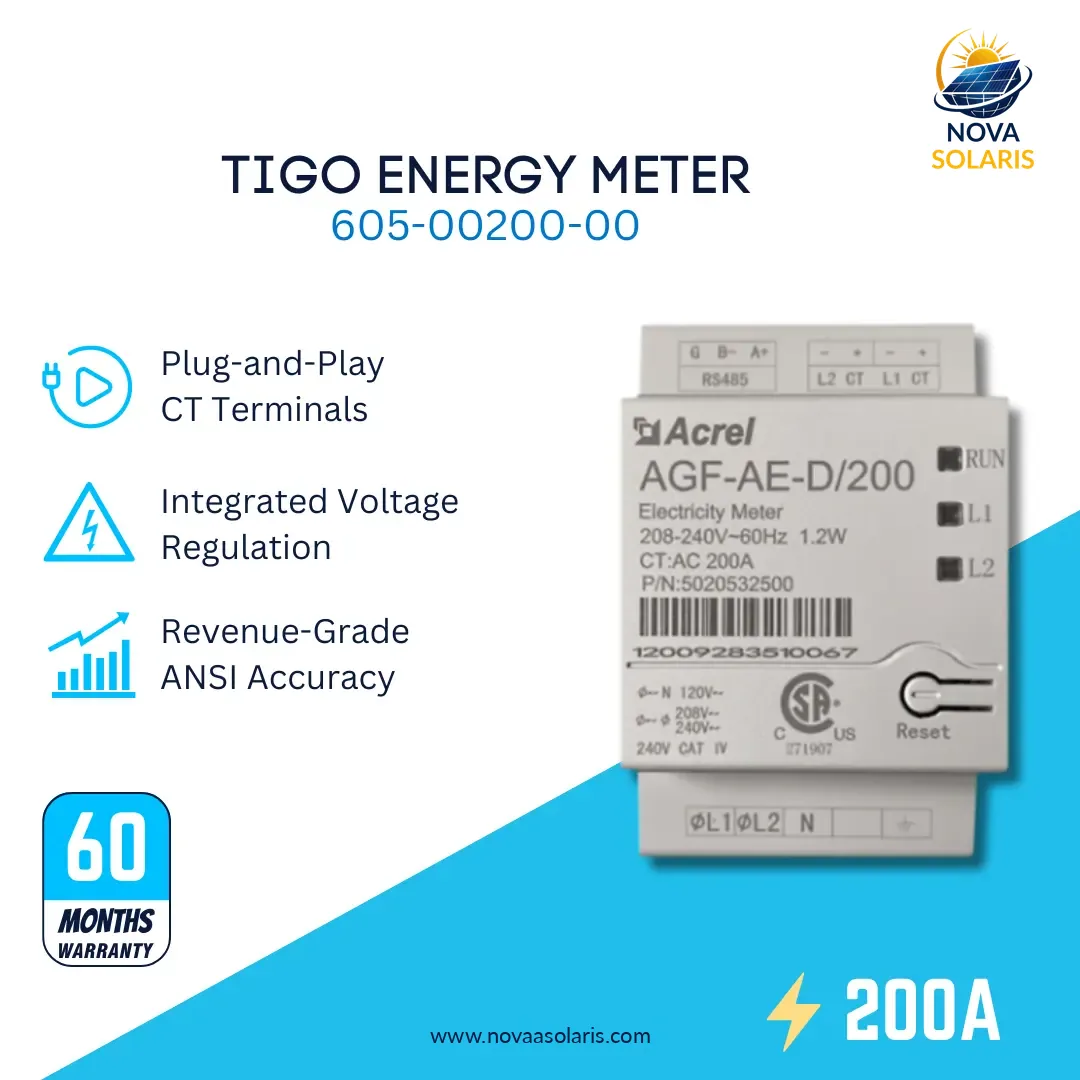

Tigo Energy 605-00200-00 Energy Meter
Supports the EI Energy Storage Solution operating modes
Attached connectors allow the CTs to simply plug into the meter terminals
Meter data displayed in the EI monitoring platform upon activation, no configuration needed
Technical Specifications
- Dimensions: (W x D x H) 54.1 x 52 x 87.8mm / (2.1 x 2.0 x 3.5in)
- Weight: 0.2kg (0.44lbs)
- Nominal Voltage: 240/208V
- Voltage Range: 88%-110%
- Nominal Current: 200A
- Nominal Frequency: 60Hz
- Voltage Input Type: 1P2W,2P3W
- Serial Reporting Interval: <1s
- Accuracy Class: ANSI C12.20 1.0 (meets 1% accuracy)
- Operational Temperature Range: -22°F~131°F (-30°C ~55°C)
- Relative Humidity: 5~95% Non-condensing
- Accessories: 2 pcs 200A Rated CT
- Communication: RS485
Resources

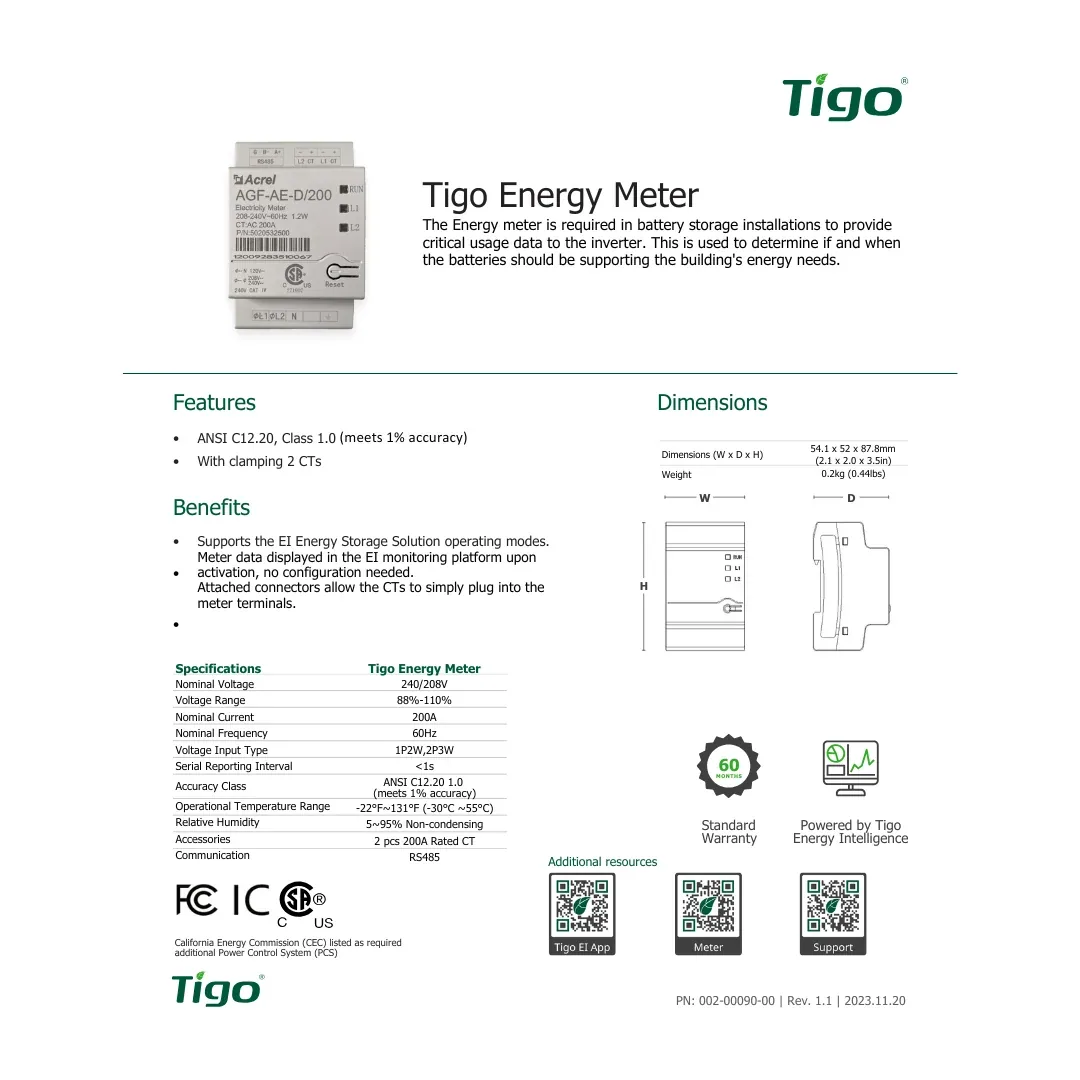

Datasheet
✔️ Datasheet
Quick Installation Guide
No installation guide available. Email support@novaasolaris.com for file request.
