Rolls Surrette 8-CS-17P 8VDC 568Ah Deep Cycle Battery
Rolls Surrette

Rolls Surrette 8-CS-17P 8VDC 568Ah Deep Cycle Battery

$1,555.65 USD

SKU: 8-CS-17P

  • Capacity: 568Ah
  • Product Type: Renewable Energy
Quantity
1
Shipping & Returns Policy

Orders are processed within 24-72 business hours. Freight items ship from the closest available warehouse; a Freight Terms & Conditions form is sent for review and signature before dispatch. Returns follow our Return Merchandise Authorization (RMA) policy.

Product description

Description

Rolls Surrette Battery 8 CS 17P

Designed in compliance with applicable BCI,DIN,BS and IEC standards.
Tested in compliance to BCI and IEC standards.

Technical Specifications:

  • Weight: 133 kg / 293 lbs
  • Length: 718 mm / 28.25"
  • Width: 210 mm / 8.25"
  • Height Incl. Term.: 464 mm / 18.25"
  • Electrolyte Reserve: 95 mm / 3.75"
  • Container (Inner): Polypropylene
  • Cover (Inner): Polypropylene - heat sealed to inner container
  • Container (Outer): High Density Polyethylene
  • Cover (Outer): High Density Polyethylene snap fit to outer container
  • Handles: Molded
  • Series: 5000
  • Volts: 8
  • Design: SPEC
  • Cells: 4
  • Plates/Cell : 17
  • Terminal Type: Flag
  • Included Hardware: S/S Hex Cap Screw, Nut, Lock & Flat Washer
  • Size & Thread: 5/16"-18
  • Charge Voltage Range: 2.45-2.5 V/cell @ 25°C (77°F)
  • Float Voltage Range: 2.25 V/cell @ 25°C (77°F)
  • Self-Discharge Rate: 5%-10% per month at 25°C (77°F)
  • Cold Crank Amps (CCA) 0°F / -18°C: 1393
  • Marine Crank Amps (MCA) 32°F / 0°C: 1742
  • Reserve Capacity (RC @ 25A): 1363 Minutes
  • Reserve Capacity (RC @ 75A): 454Minutes
  • Capacity AMP @ 20 Hour Rate: 568 Ah
Resources

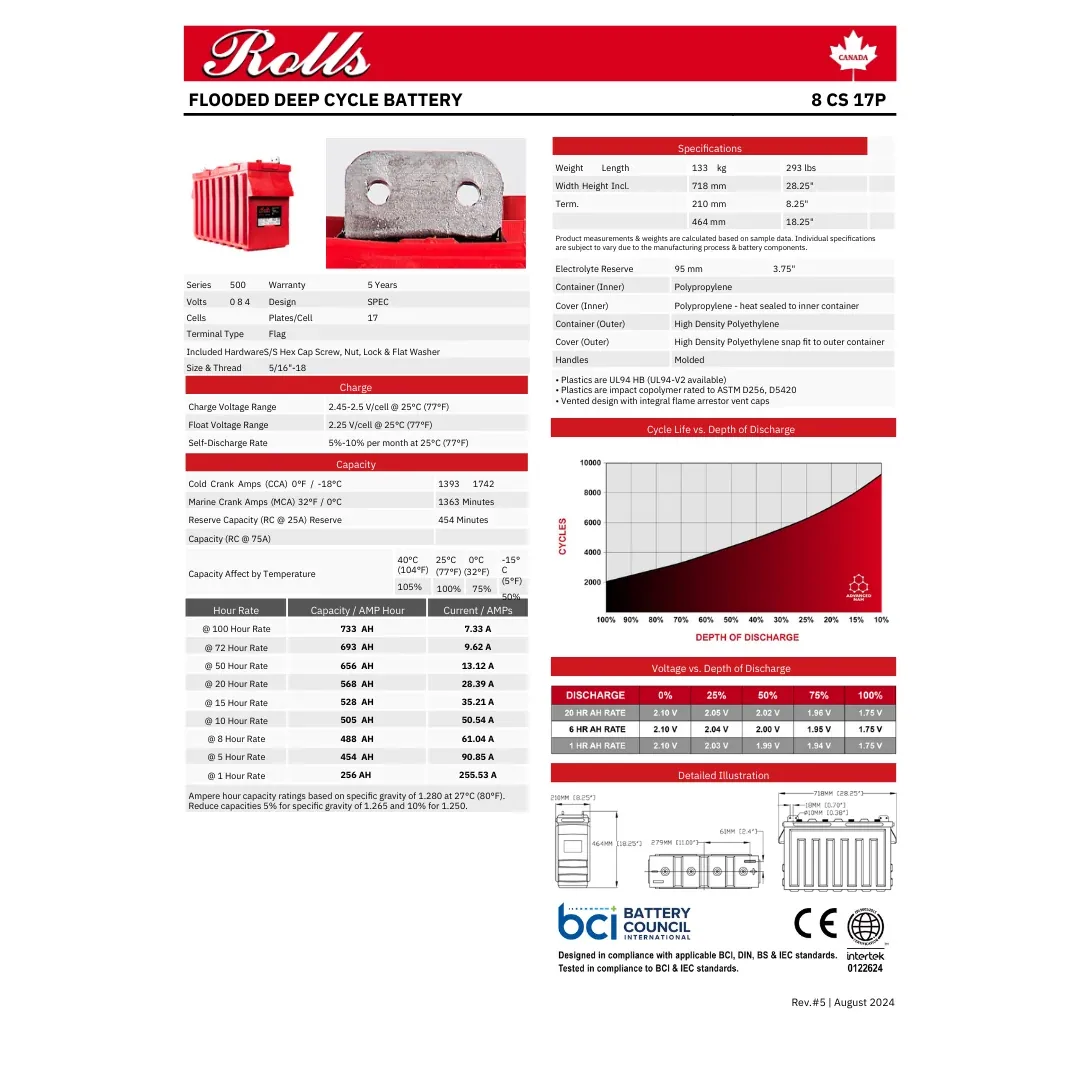

Datasheet

Quick Installation Guide

No installation guide available. Email support@novaasolaris.com for file request.

Warranty

5 Years Warranty
