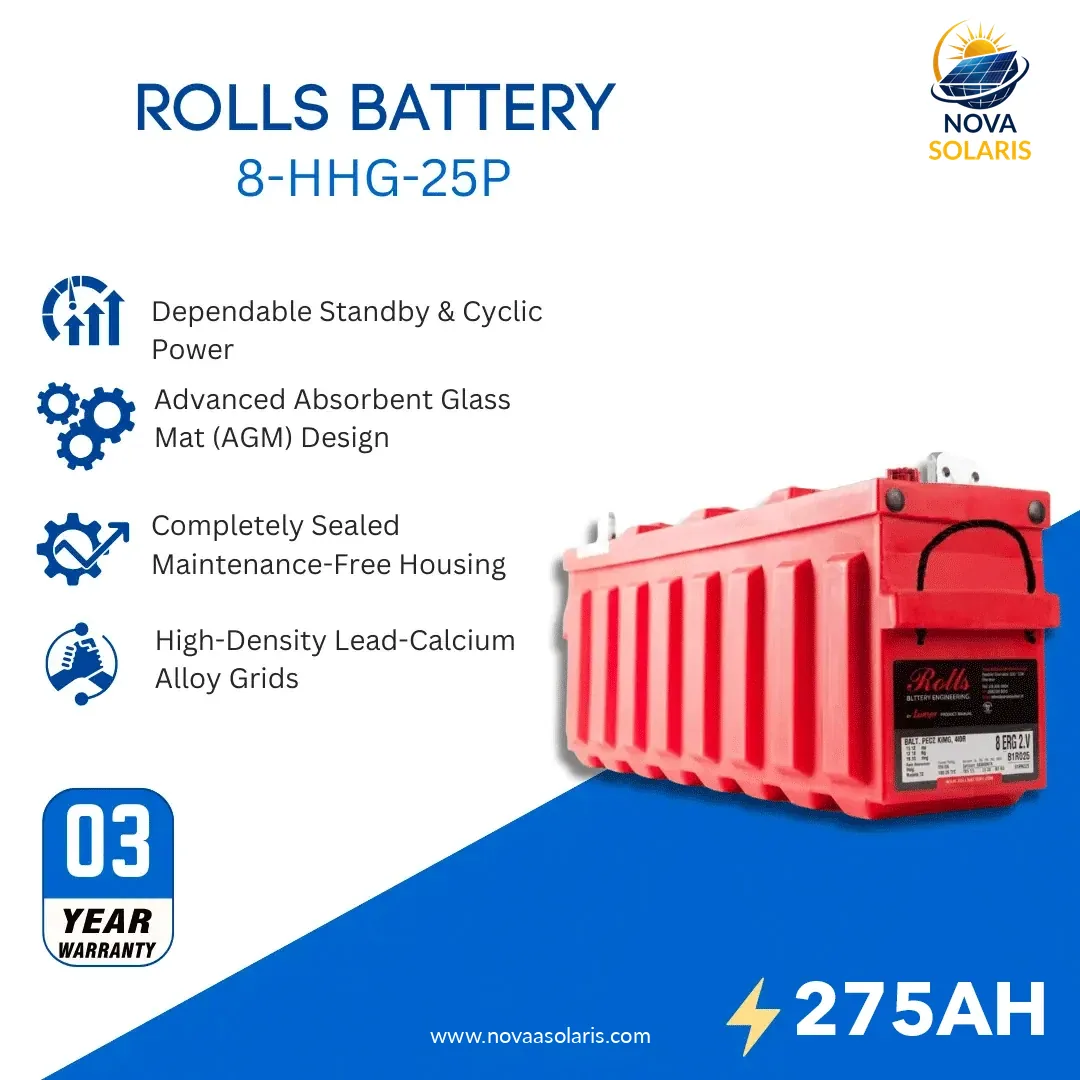

Rolls Surrette 8-HHG-25P 275Ah 8VDC Deep Cycle Battery
$763.66 USD
SKU: 8-HHG-25P
- Capacity: 275Ah
- Product Type: Renewable Energy
Quantity
1
Shipping & Returns Policy
Orders are processed within 24-72 business hours. Freight items ship from the closest available warehouse; a Freight Terms & Conditions form is sent for review and signature before dispatch. Returns follow our Return Merchandise Authorization (RMA) policy.
Description
Rolls Surrette Battery 8 HHG 25P
Designed in compliance with applicable BCI,DIN,BS and IEC standards.
Tested in compliance to BCI and IEC standards.
Technical Specifications:
- Weight: 59 kg / 130 lbs
- Length: 622 mm / 24.5"
- Width: 187 mm / 7.38"
- Height Incl. Term.: 292 mm / 11.5"
- Electrolyte Reserve: 70 mm / 2.75"
- Container (Inner): Polypropylene
- Cover (Inner): Polypropylene - heat sealed to inner container
- Container (Outer) High Density Polyethylene
- Cover (Outer): High Density Polyethylene snap fit to outer container
- Handles: Rope / Plastic Handle
- Series: 4000
- Volts: 8
- Design: SLI
- Cells: 4
- Plates/Cell : 25
- Terminal Type: Flag L
- Included Hardware: S/S Hex Cap Screw, Nut, Lock & Flat Washer
- Size & Thread: 5/16"-18
- Charge Voltage Range: 14.7-15 V/cell @ 25°C (77°F)
- Float Voltage Range 2.25 V/cell @ 25°C (77°F)
- Self-Discharge Rate: 5%-10% per month at 25°C (77°F)
- Cold Crank Amps (CCA) 0°F / -18°C: 1239
- Marine Crank Amps (MCA) 32°F / 0°C: 1549
- Reserve Capacity (RC @ 25A): 660 Minutes
- Reserve Capacity (RC @ 75A): 220Minutes
- Capacity AMP @ 20 Hour Rate: 275 Ah
Resources

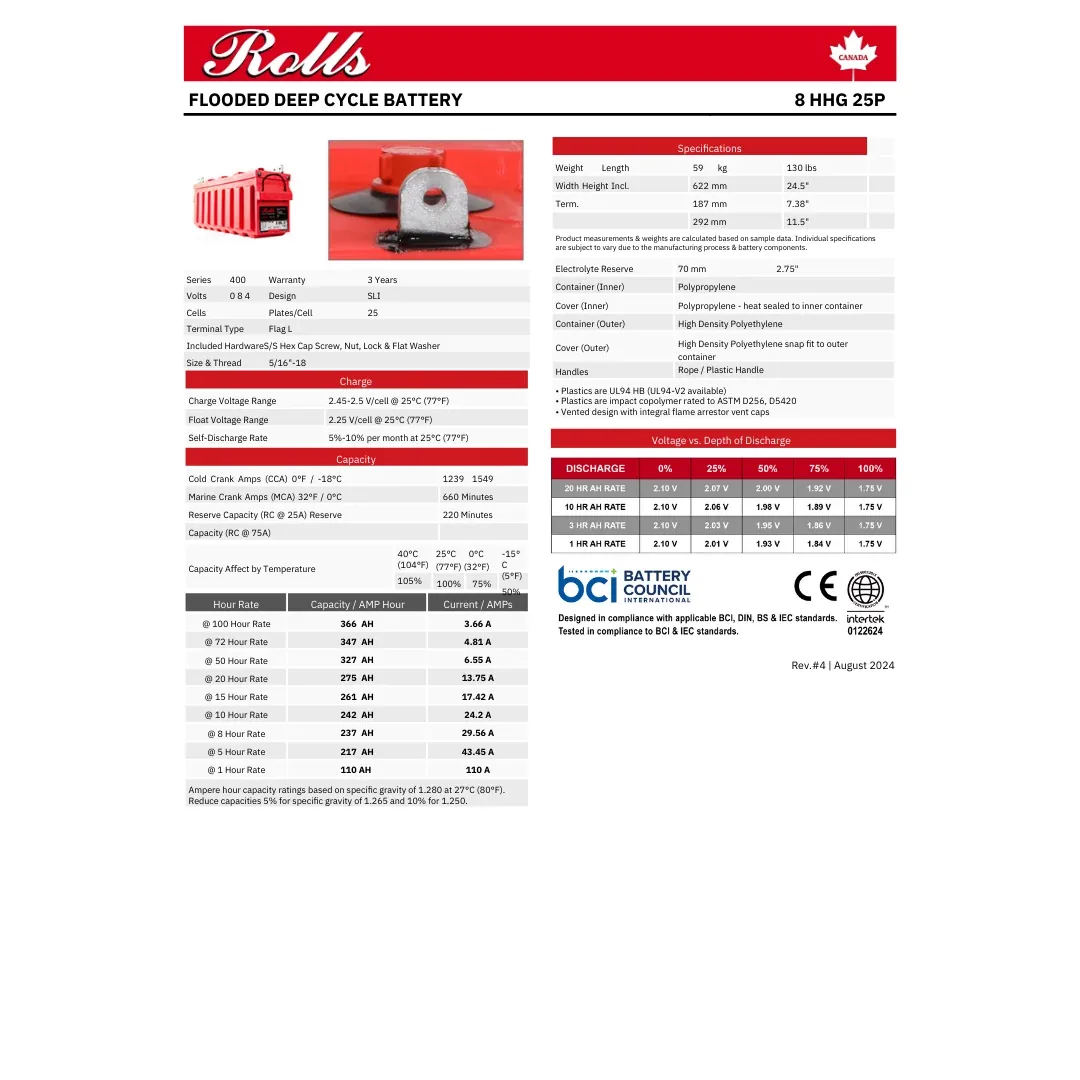

Datasheet
Quick Installation Guide
No installation guide available. Email support@novaasolaris.com for file request.
Warranty
3 Year Warranty
