Generac APKE00010 PV Link - 2500W MPPT Substring Optimizer
Generac

Generac APKE00010 PV Link - 2500W MPPT Substring Optimizer

$569.91 USD

SKU: APKE00010

  • Wattage: 2500W
Quantity
1
Shipping & Returns Policy

Orders are processed within 24-72 business hours. Freight items ship from the closest available warehouse; a Freight Terms & Conditions form is sent for review and signature before dispatch. Returns follow our Return Merchandise Authorization (RMA) policy.

Product description

Generac

Description

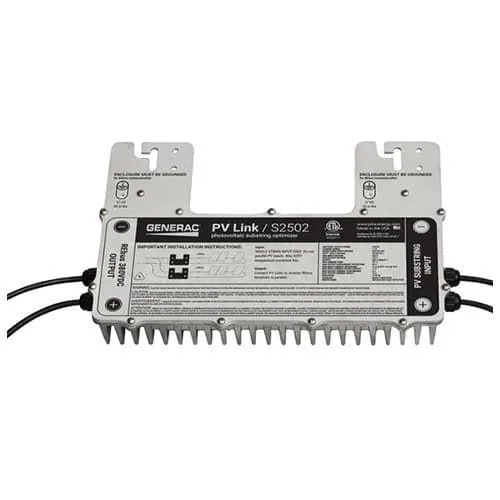

Generac APKE00010 PV Link - 2500W MPPT Substring Optimizer

The APKE00010 is a substring optimizer made by Generac under its PWRcell / PV Link line. It serves to boost the performance and safety of solar PV systems by optimizing power output from a group (substring) of solar panels.

Technical Specifications:

  • Rated Power: 2500 W
  • MPPT Voltage Range: 60 - 360 VMP
  • Max Input Voltage (when cold): 420 VOC
  • Nominal Output Voltage: 380 VDC
  • Maximum Output Current: 8 A
  • Max Short Circuit Current (ISC): 18 A
  • Protections: Ground-fault, Arc-fault (Type 1 AFCI, Integrated)
  • Peak Efficiency: 99%
  • Maximum Operating Temperature: 70 C (158 F)
  • Dimensions: 51 x 391 x 244 mm (2" x 15.4" x 9.6")
  • Compliance: UL 1741, CSA 22.2
Downloads

Datasheet

✔️ Datasheet

Quick Installation Guide

✔️ Quick Installation Guide

Warranty

✔️ Warranty
