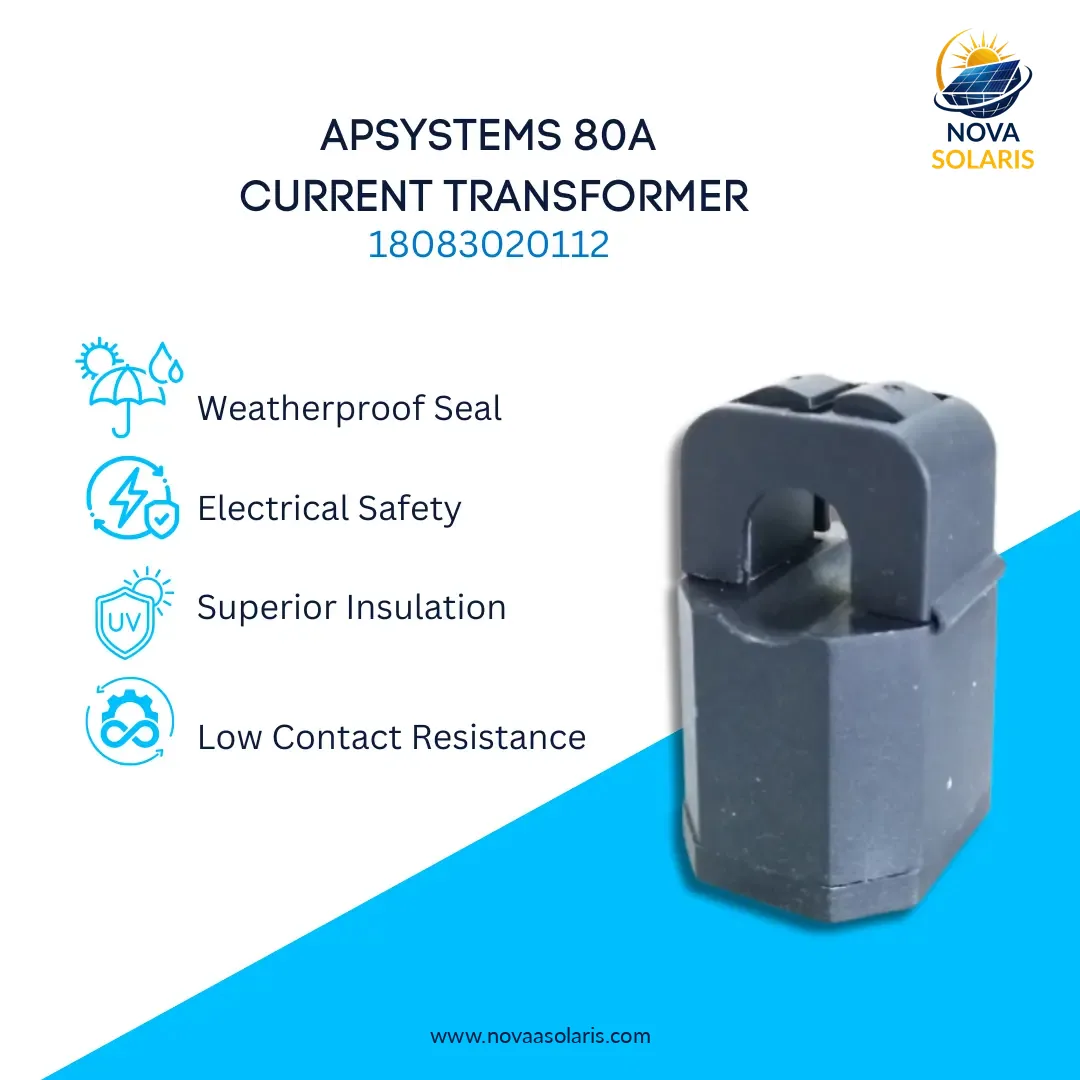

APsystems 18083020112 80A Current Transformer
SKU: 18083020112
Shipping & Returns Policy
Orders are processed within 24-72 business hours. Freight items ship from the closest available warehouse; a Freight Terms & Conditions form is sent for review and signature before dispatch. Returns follow our Return Merchandise Authorization (RMA) policy.
Description
APsystems 18083020112 80A Current Transformer
The product code 18083020112 is an APsystems/APsmart 80A Current Transformer (CT), model SCT-T10. It is a monitoring accessory used in solar power systems to measure electrical current and provide energy consumption/production data to compatible APsystems monitoring devices such as the ECU series.

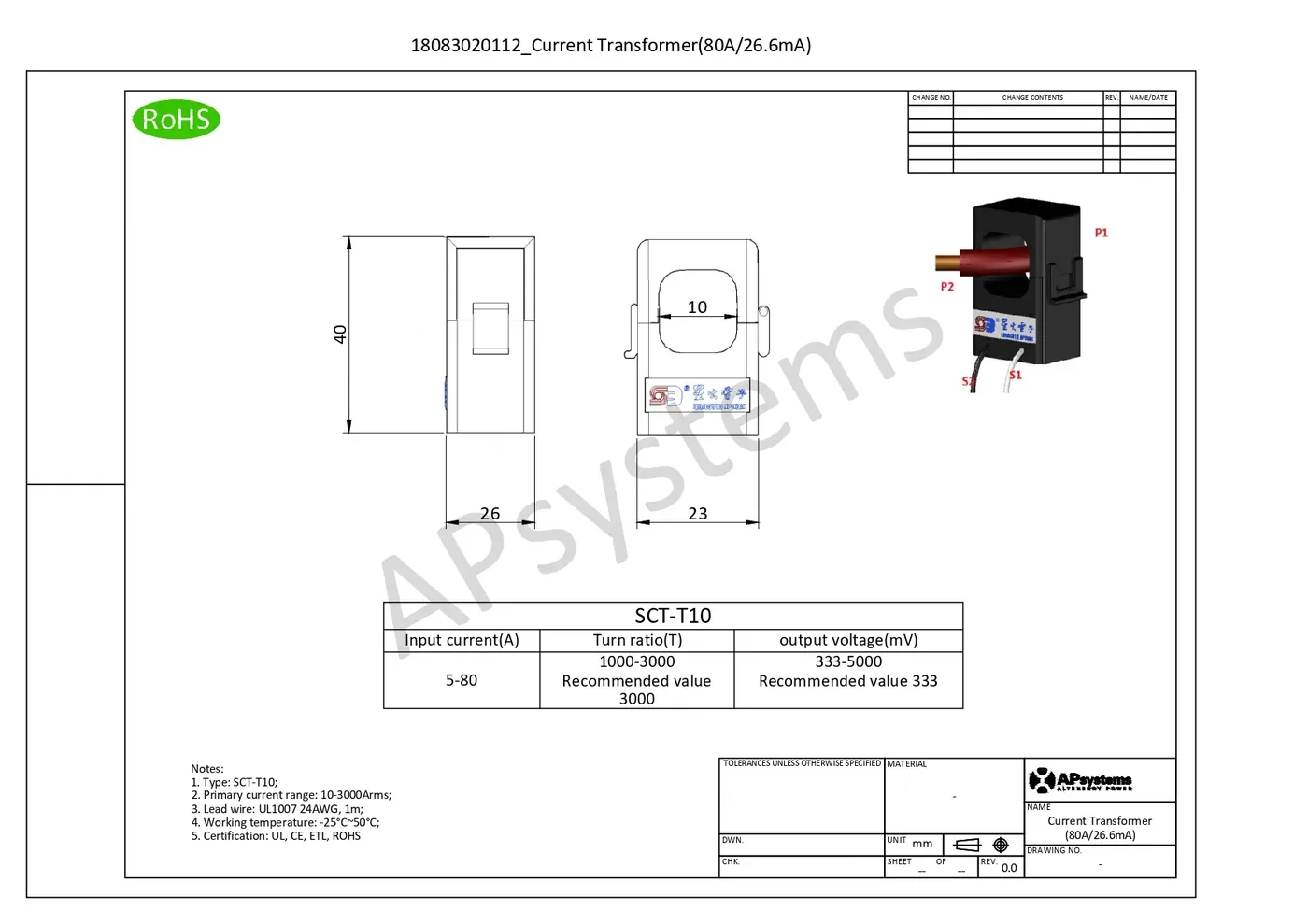

Technical Specifications
- Type: Current Transformer (CT) / Split-core sensor
- Current Rating: 80A AC
- Voltage: 120/240 VAC
- Operating Temperature: -25°C to +50°C
- Dimensions: 40 × 26 × 23 mm (1.57 × 1.02 × 0.91 in)
Resources
Datasheet
✔️ Datasheet
Quick Installation Guide
No installation guide file resource available. Email support@novaasolaris.com for file request.
Warranty
No warranty file resource available. Email support@novaasolaris.com for file request.
