SolarEdge BI-EUSGN-02 Backup Interface, 5kw ATX Service Side Connection
SKU: BI-EUSGN-02
- Product Type: Home Backup Interface
Shipping & Returns Policy
Orders are processed within 24-72 business hours. Freight items ship from the closest available warehouse; a Freight Terms & Conditions form is sent for review and signature before dispatch. Returns follow our Return Merchandise Authorization (RMA) policy.
Description

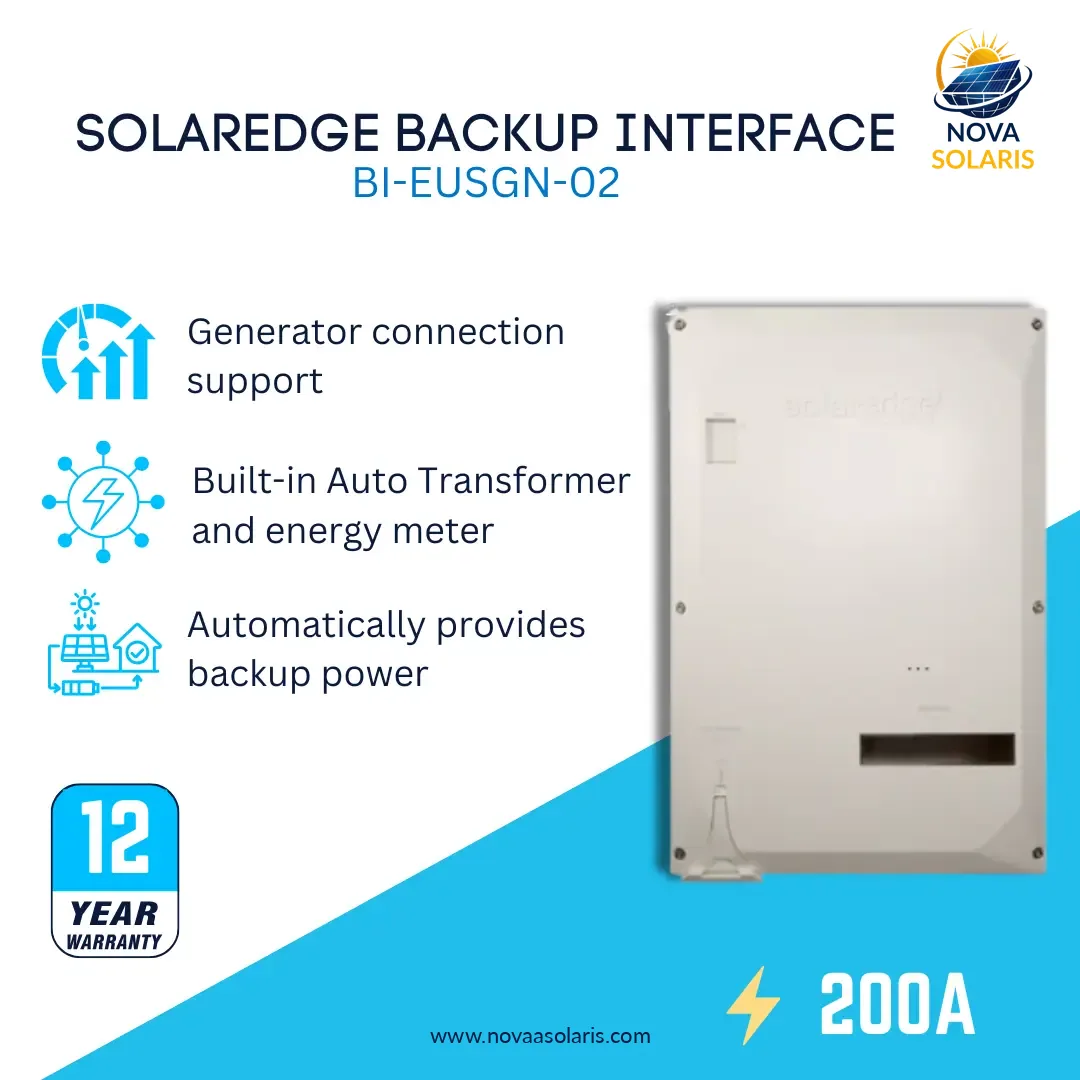

SolarEdge, BI-EUSGN-02, Home Backup Interface
The SolarEdge Home Backup Interface (BI-EUSGN-02) is the core device that automatically provides backup power to your home loads in the event of a grid interruption. This interface provides full flexibility in deciding which household loads to back up, supporting full or partial home backup. It is a scalable solution built to support higher power and capacity, and it seamlessly integrates with the Energy Hub Inverter to manage and monitor both PV generation and energy storage.
This unit's integrated Auto Transformer and Energy Meter allow for easier and faster installation. It features Generator connection support and is the key to ensuring reliable partial home backup for your crucial systems.

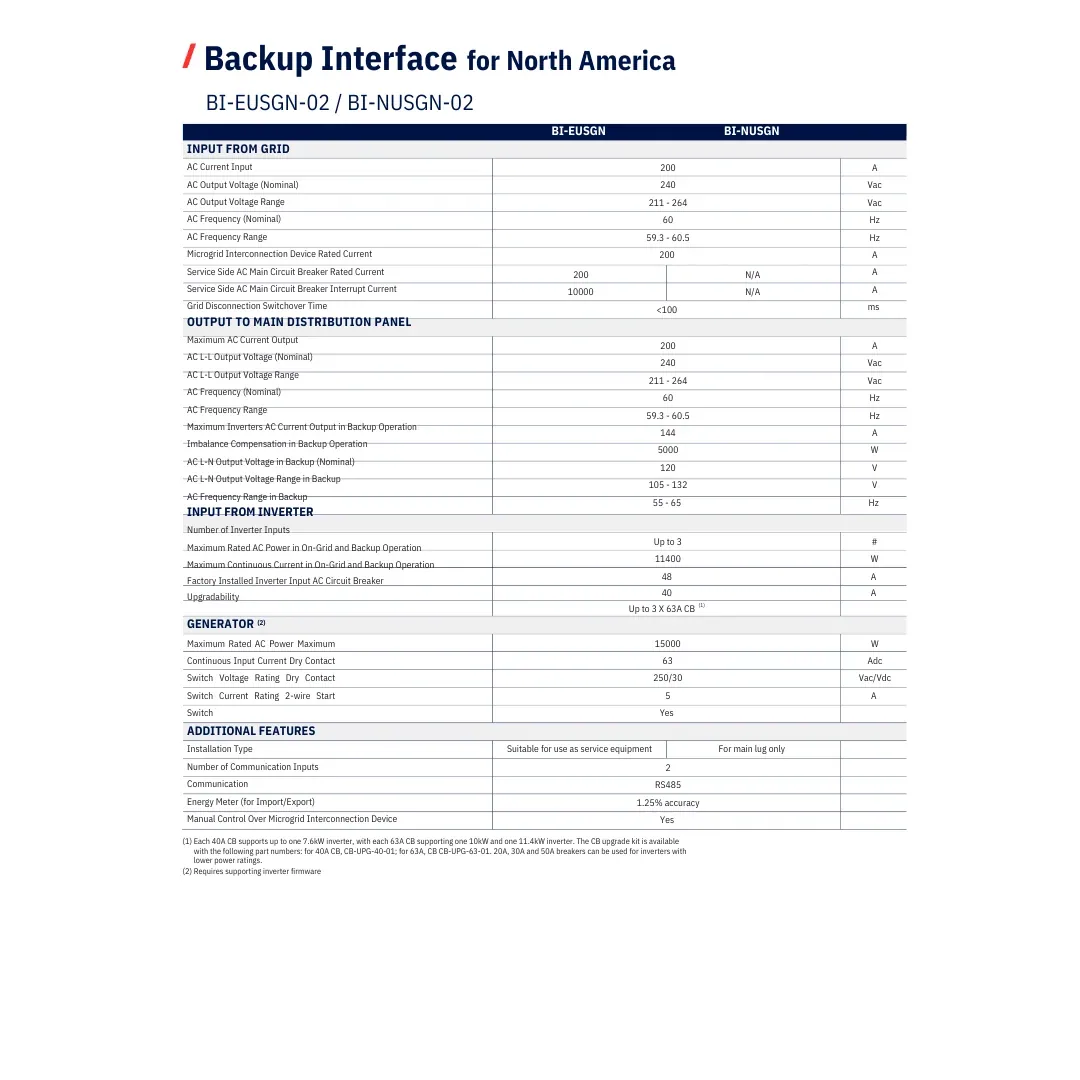

Technical Specifications
- AC Current Input: 200 A
- AC Output Voltage (Nominal): 240 Vac
- AC Output Voltage Range: 211 - 264 Vac
- AC Frequency (Nominal): 60 Hz
- AC Frequency Range: 59.3 - 60.5 Hz
- Microgrid Interconnection Device Rated Current: 200 A
- Maximum AC Current Output: 200 A
- AC L-L Output Voltage (Nominal): 240 Vac
- AC L-L Output Voltage Range: 211 - 264 Vac
- AC Frequency (Nominal): 60 Hz
- AC Frequency Range: 59.3 - 60.5 Hz
- Weight: 73lb / 33kg
Downloads
Datasheet
✔️ Datasheet
Quick Installation Guide
No installation guide available. Email support@novaasolaris.com for file request.
Warranty
12 Years Warranty
