Enphase BRK-175A-2P-240V 175A 2P Main Breaker
SKU: BRK-175A-2P-240V
- Product Type: Balance of System (Electrical)
Shipping & Returns Policy
Orders are processed within 24-72 business hours. Freight items ship from the closest available warehouse; a Freight Terms & Conditions form is sent for review and signature before dispatch. Returns follow our Return Merchandise Authorization (RMA) policy.
Description

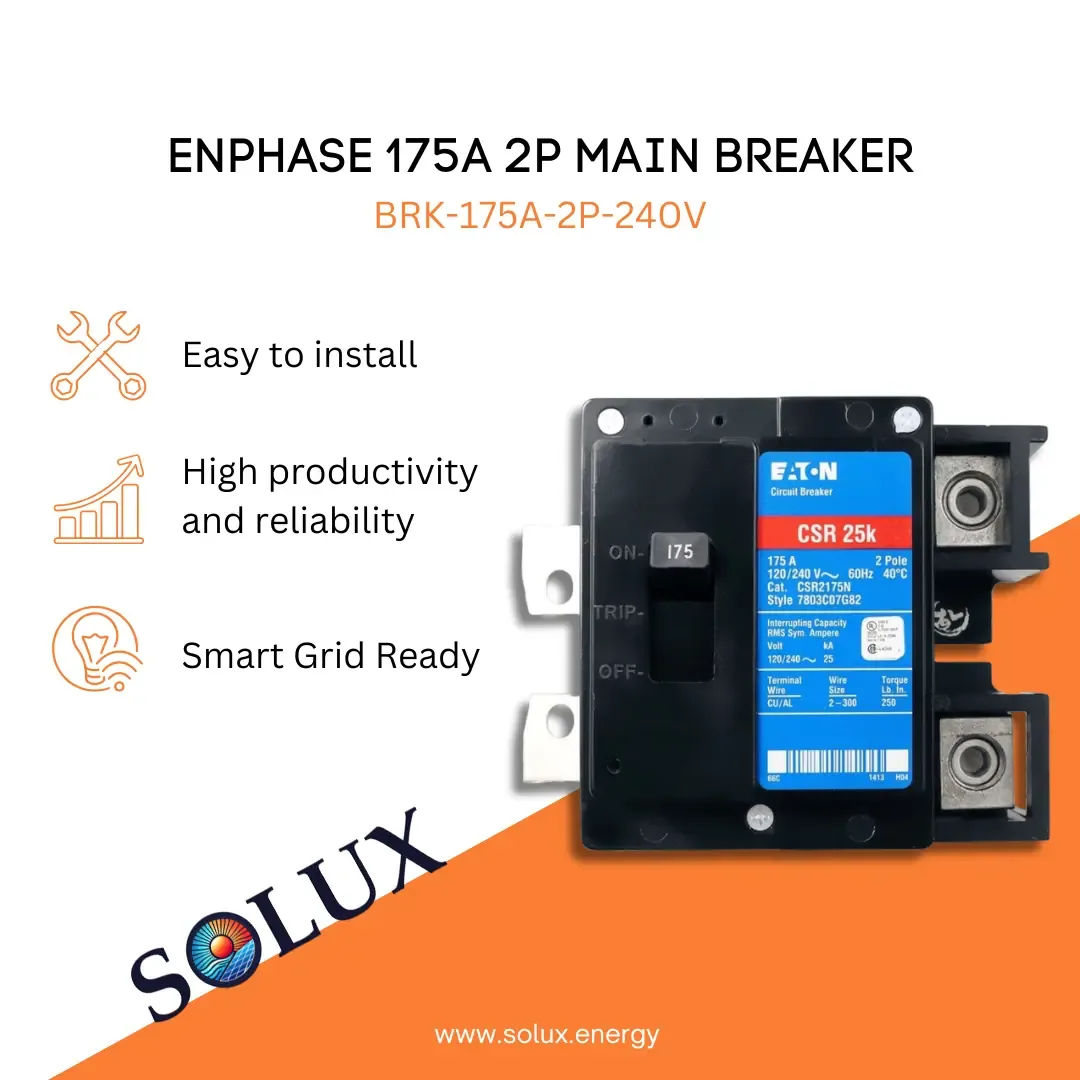

Enphase BRK-175A-2P-240V 175A 2P Main Breaker
The Enphase BRK‑175A‑2P‑240V is a 175 amp, two‑pole main circuit breaker designed for use in Enphase IQ Combiner and System Controller enclosures and compatible load‑centers. It provides reliable overcurrent protection for 240 VAC main feeds in renewable energy systems.
Technical Specifications:
- Max Current: 175 A
- Ampere Interrupting Capacity: 25 kAIC
- Poles: 2 Poles
- Input Current: 175 A
- Power Output: 475 Watts
- Voltage Rating: 120/240 V AC
- Interrupting Capacity: ~25 kAIC (short-circuit rating)
- Shipping Weight: 3.0 lb
- Shipping Dimensions: 6 x 3 x 3 in
Resources
Datasheet
No datasheet file resource available. Email support@novaasolaris.com for file request.
Quick Installation Guide
No Quick Installation guide available. Email support@novaasolaris.com for file request.
Warranty
No Warranty file resource available. Email support@novaasolaris.com for file request.
