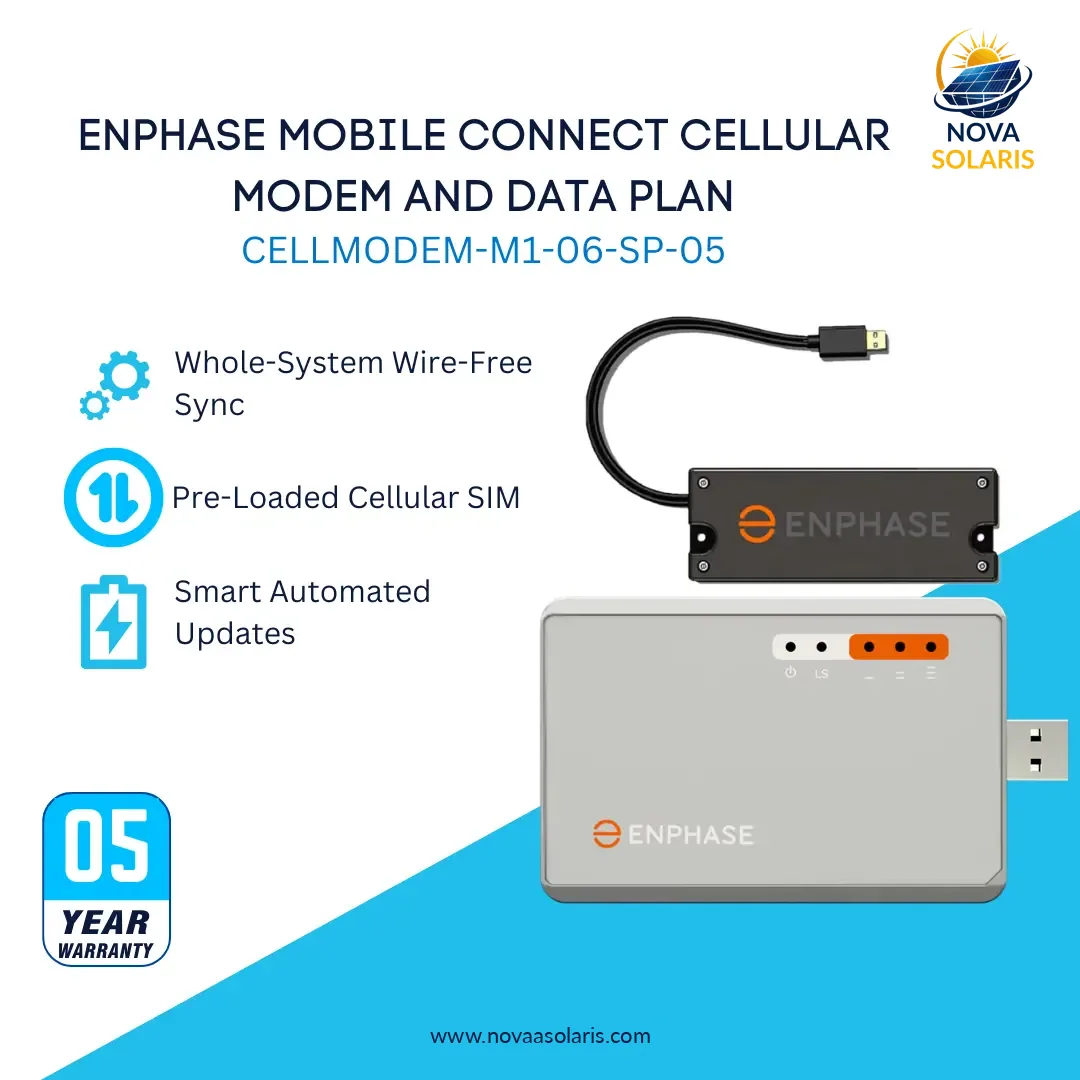

Enphase CELLMODEM-M1-06-SP-05 Mobile Connect Cellular Modem and Data Plan
SKU: CELLMODEM-M1-06-SP-05
- Product Type: Networking Accessory
Shipping & Returns Policy
Orders are processed within 24-72 business hours. Freight items ship from the closest available warehouse; a Freight Terms & Conditions form is sent for review and signature before dispatch. Returns follow our Return Merchandise Authorization (RMA) policy.
Enphase Communications Kit with CELLMODEM-M1-06-SP-05
This kit contains two Enphase products:
- Enphase Energy System Communications Kit (COMMS-KIT-01)
- Enphase Mobile Connect Cellular Modem CELLMODEM-M1-06-SP-05 with T-Mobile SIM
The Enphase Communications Kit (COMMS-KIT-01) contains a wireless USB adapter that facilitates continuous communication between IQ Gateway/IQ Combiner/Envoy-S Metered, IQ Gateway S Metered/IQ Gateway S combiner box, IQ Battery 3/3T/10/10T and IQ System Controller 1/2.
The Enphase Mobile Connect Cellular Modem delivers easy, reliable networking for Enphase Energy Systems. CELLMODEM-M1-06-SP-05 is an LTE CAT M1 cellular modem. It includes a prepaid 5-year data plan and acts as a backup communication path for an Enphase Energy System in case the Wi-Fi or Ethernet connectivity fails.
Details
Communications Kit
- Enables direct communication between the IQ Battery, IQ System Controller, and IQ Gateway/Envoy-S or IQ Combiner box
- Needed for the proper functioning of the Enphase Energy System
- Connected to one of the USB ports on the IQ Gateway/Envoy-S Metered, usually located within the IQ Combiner
Enphase Mobile Connect Cellular Modem
- Comes with an internal antenna
- Pre-installed T-Mobile SIM
- Coverage available in US, Canada, Puerto Rico, and the US Virgin Islands
- LTE CAT M1 cellular connectivity
- Pre-configured to activate when connected to the IQ Gateway
- Provides backup connectivity for Enphase Energy System
- Transmits data to the Enphase Cloud four times a day

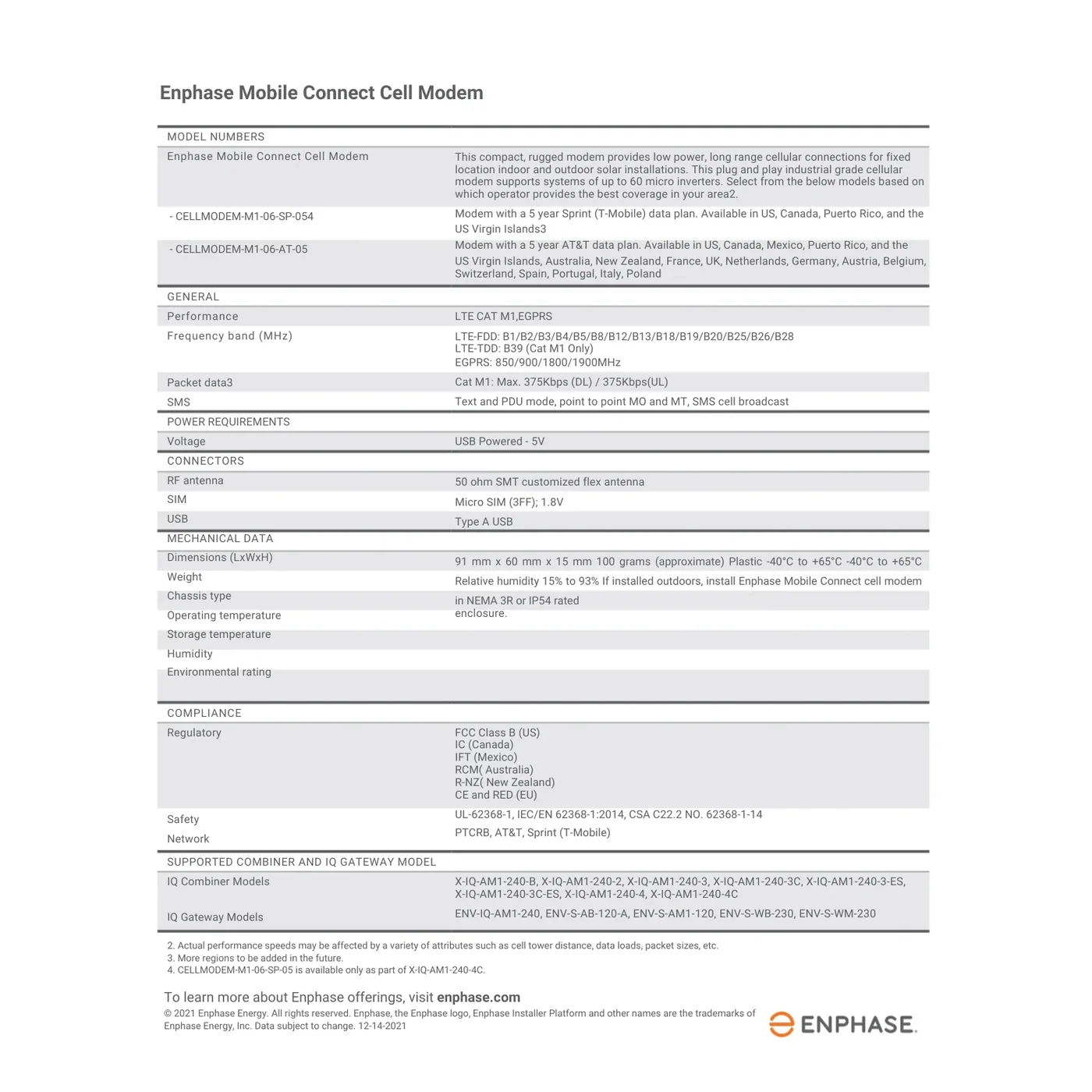

Technical specifications
✔️ Communications Kit
Length : 180.00 mm
Width : 66.50 mm
Height : 30.60 mm
✔️ Enphase Mobile Connect Cellular Modem
Length : 91.00 mm
Width : 60.00 mm
Height : 15.00 mm
Compatibility
- To be used with IQ Gateway/Envoy-S/IQ Combiner with Gateway software version 7.0 or later
- For Enphase Energy Systems with IQ Battery 3/3T/10/10T and/or IQ System Controller 1/2
What's in the box
✔️ Communications Kit
- 1 Enphase Communications Kit COMMS-KIT-01
- 3 plastic cable ties
- 1 Quick Installation Guide
✔️ Enphase Mobile Connect Cellular Modem
- 1 Enphase Connect Cellular Modem CELLMODEM-M1-06-SP-05
- 1 USB Type A female to type A male
- 1 mounting tab for installation in IQ Combiner 3/3C/3ES/3C-ES/4/4C/5/5C
- 2 snap rivets for the mounting tab
- 1 Quick Installation Guide
Resources
Datasheet
Installation Guide
Warranty
5 years
