SMA
SMA COMGW-US-10 Communication Gateway For RS485 Systems
$311.15 USD
SKU: COMGW-US-10
Quantity
1
Shipping & Returns Policy
Orders are processed within 24-72 business hours. Freight items ship from the closest available warehouse; a Freight Terms & Conditions form is sent for review and signature before dispatch. Returns follow our Return Merchandise Authorization (RMA) policy.
Description

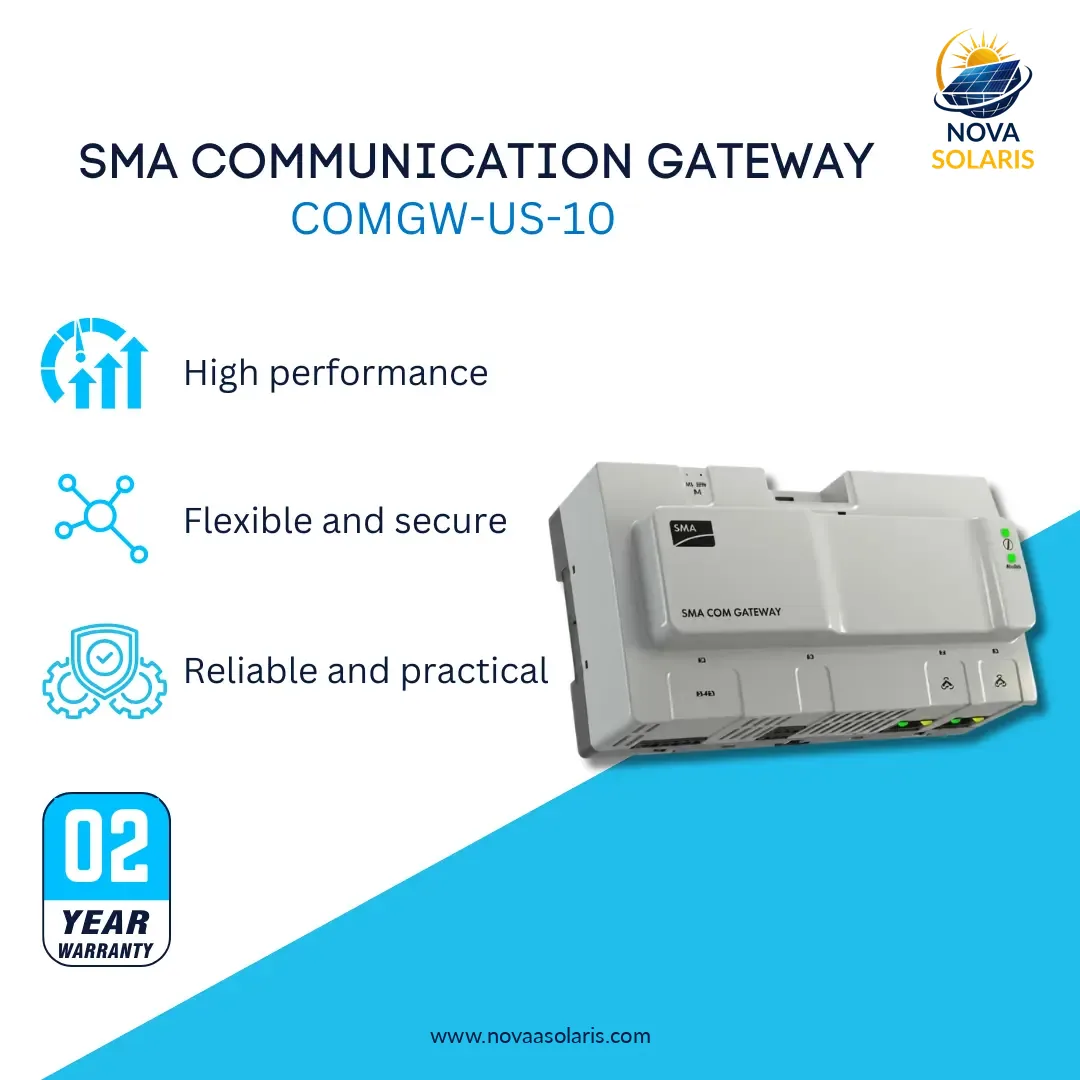

SMA COMGW-US-10 Communication Gateway For RS485 Systems
Simple - Integration into existing RS485 systems
Flexible - Top-hat rail or wall mounting and supports up to 50 x RS485 devices
Future Proof - Investment security for existing systems
Technical Specifications
- RS485 Devices: RS485, max. 50 devices, 1200 baud or 19200 baud
- SMA Data Logger: Speedwire, 10/100 Mbit/s
- Voltage Supply: 2-pole connection, MINI COMBICON
- RS485: 6-pole connection, MINI COMBICON
- SMA Data Logger / Network (LAN): 2 x RJ45, switched, 10BASE-T/100BASE-T
- USB: 1 x USB 2.0, type A
- Dimensions (W x H x D): 161.1 x 89.7 x 67.2 mm / 6.36 x 3.53 x 2.65 in
- Weight: 0.2 kg / 0.4 lbs
- Mounting Location: Indoors
- Mounting Type: Top-hat rail mounting / wall mounting
- Status Display: LEDs for system, RS485 and Ethernet status
Downloads

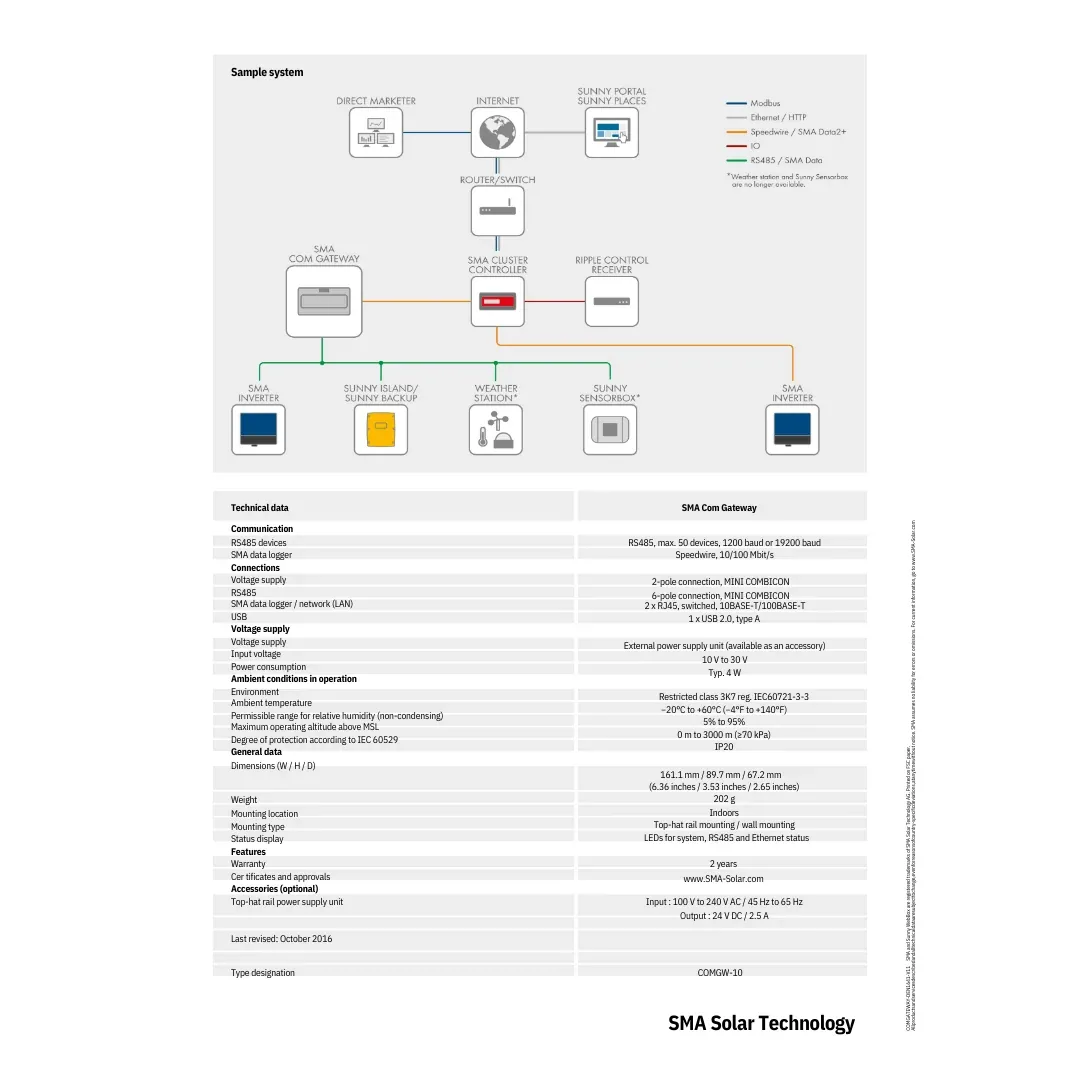

Datasheet
✔️ Datasheet
Quick Installation Guide
No installation guide available. Email support@novaasolaris.com for file request.
Warranty
2 Years Warranty
