Enphase CT-200-SPLIT Consumption Monitoring CT For Envoy S, IQ
SKU: CT-200-SPLIT
- Product Type: Monitoring Accessory
Shipping & Returns Policy
Orders are processed within 24-72 business hours. Freight items ship from the closest available warehouse; a Freight Terms & Conditions form is sent for review and signature before dispatch. Returns follow our Return Merchandise Authorization (RMA) policy.
Description

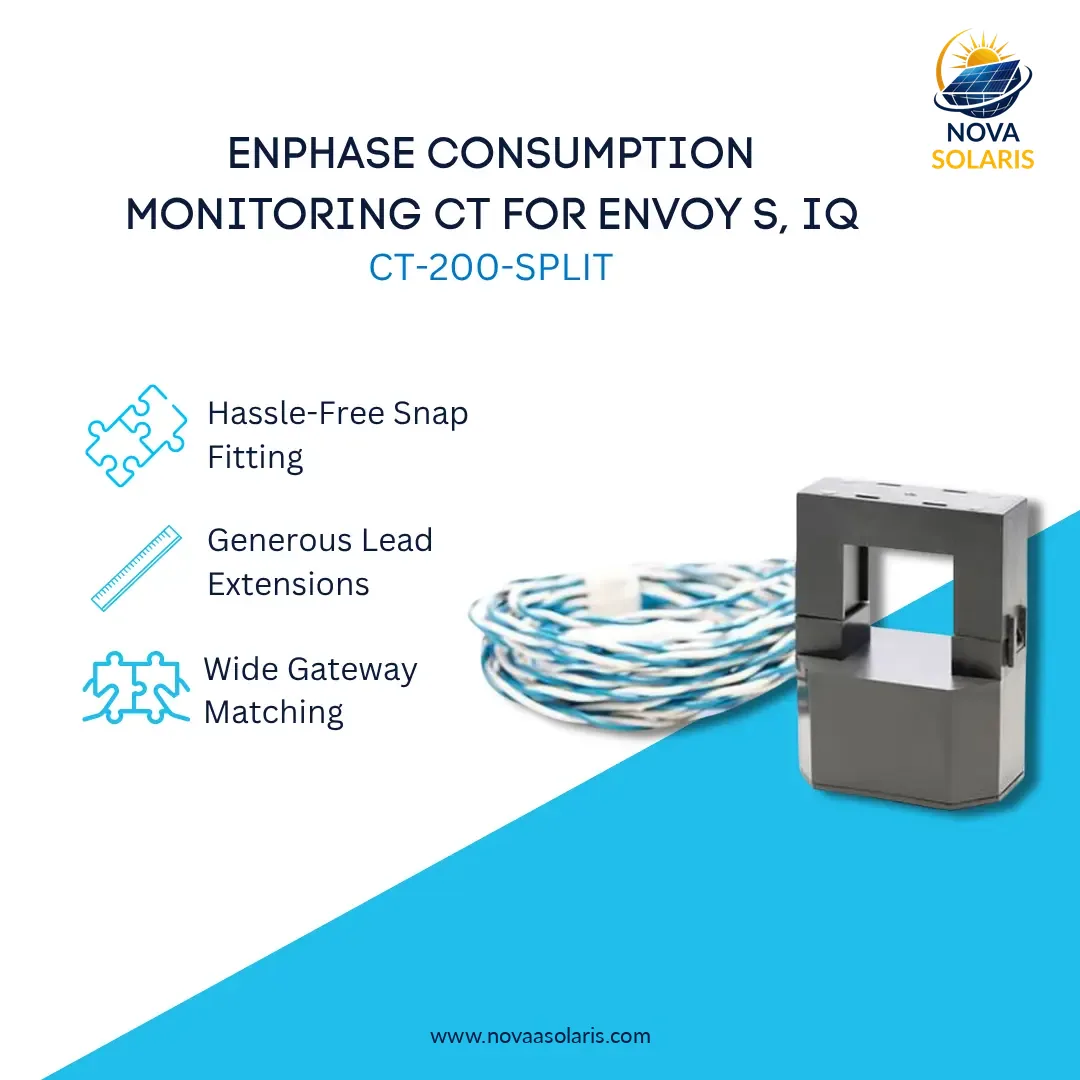

Enphase split-core current transformer for consumption metering. Compatible with IQ and S series metered envoys. Two CTs are required for most residential 240v applications. Three (or six) for commercial.
Split-core current transformers (CT's) enable whole-house consumption metering, accurate to +/- 2.5%. Two CTs needed per Envoy/gateway. Intended for residential use only. For installation inside existing load center, wires to the following using twisted-pair leads, up to 13ft(4m): - iQ Envoy (EN-ENV-IQ-AM1-240 M) - Envoy-S Metered gateway (ENV-S-AM1-120) - Enphase AC Combiner (EN-XAM1-120-M)
- Manufacturer Part Number: CT-200-SPLIT
- Manufacturer Warranty: 5 Years
- Shipping Weight: .75 lb
- Shipping Dimensions: 7 x 5 x 2 in
- Case Qty: 12
- Pallet Qty: 648
Datasheet
No datasheet file resource available. Email support@novaasolaris.com for file request.
