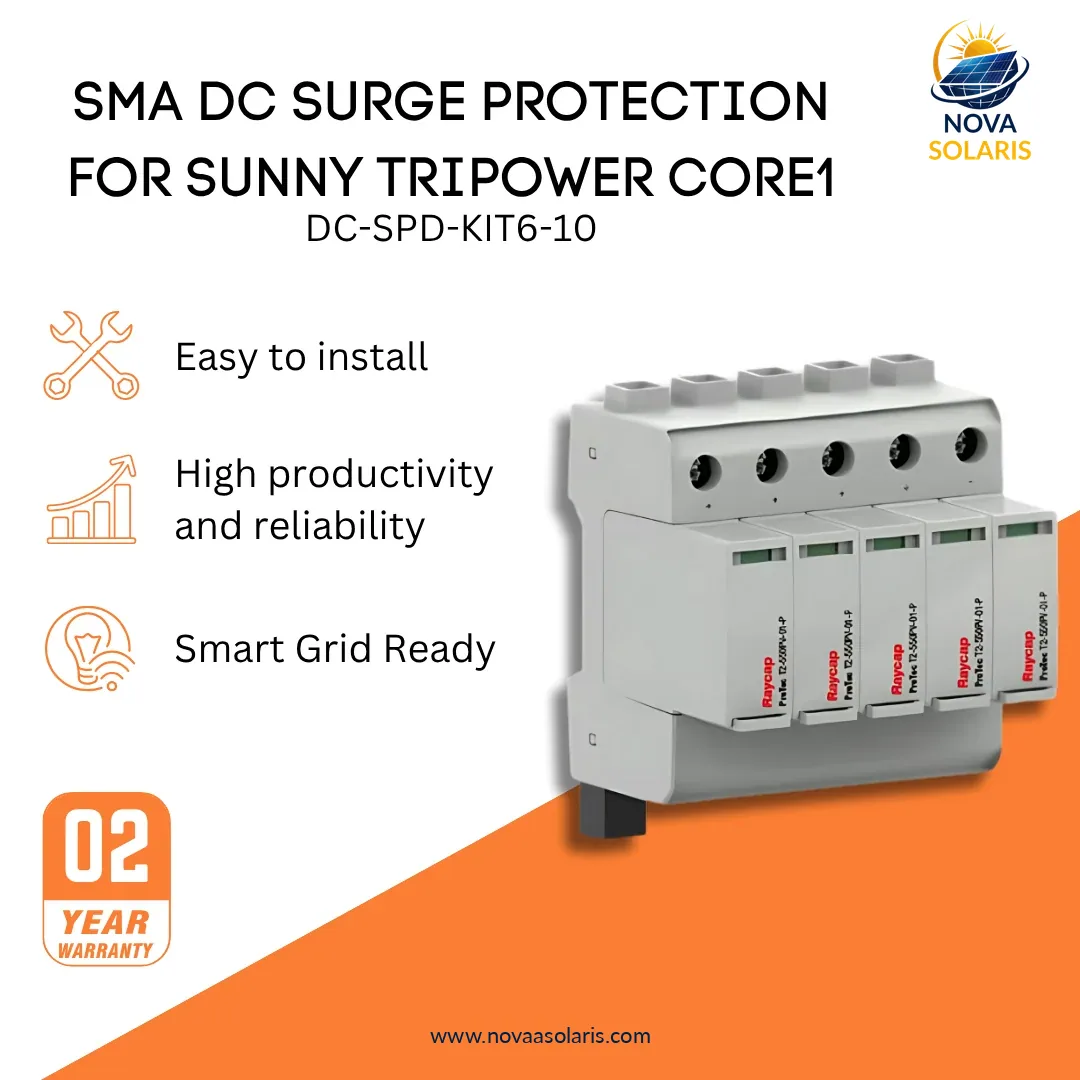

SMA DC-SPD-KIT6-10 DC Surge Protection For Sunny Tripower CORE1
$137.19 USD
SKU: DC-SPD-KIT6-10
Quantity
1
Shipping & Returns Policy
Orders are processed within 24-72 business hours. Freight items ship from the closest available warehouse; a Freight Terms & Conditions form is sent for review and signature before dispatch. Returns follow our Return Merchandise Authorization (RMA) policy.
Description
SMA DC Circuit Breaker Type 2 STP X (DC_SPD_KIT6-10)
DC Surge Arrester Type 2 for STP
Technical Specifications
- Maximum Continuous Operating Voltage (PV): UCPV 1100V
- Nominal Discharge Current (8/20 µs): In 20kA
- Total Discharge Current (8/20µs): ITotal 50kA
- Maximum Discharge Current (8/20µs): Imax 40kA
- Voltage Protection Level: (+/-)-PE Up 3800V
- Voltage Protection Level: (+)-(-) Up 3800V
- Short-Circuit Current Rating: ISCPV 11kA
- Number of Ports: 1
Downloads

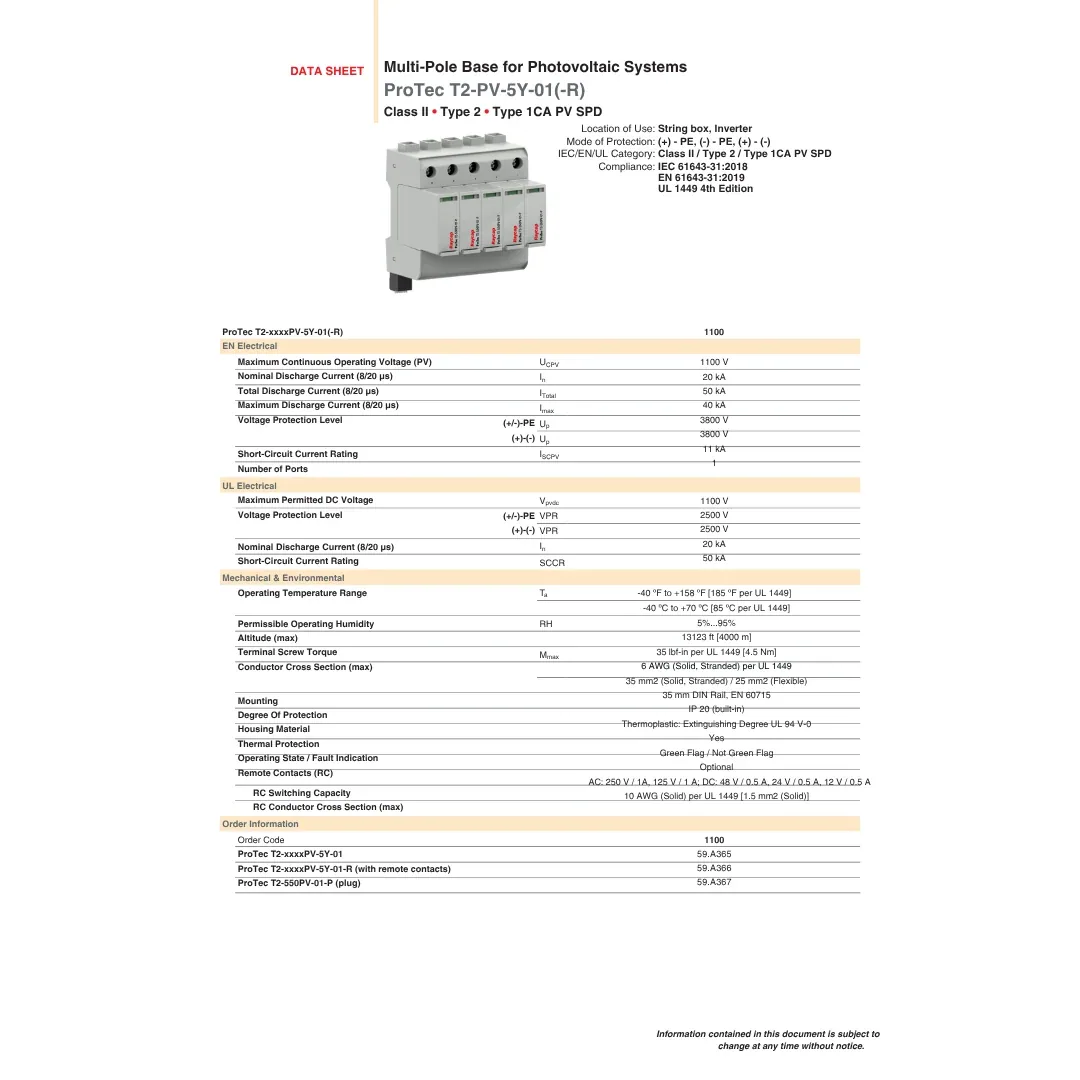

Datasheet
✔️ Datasheet
Quick Installation Guide
No installation guide available. Email support@novaasolaris.com for file request.
Warranty
✔️ Warranty
