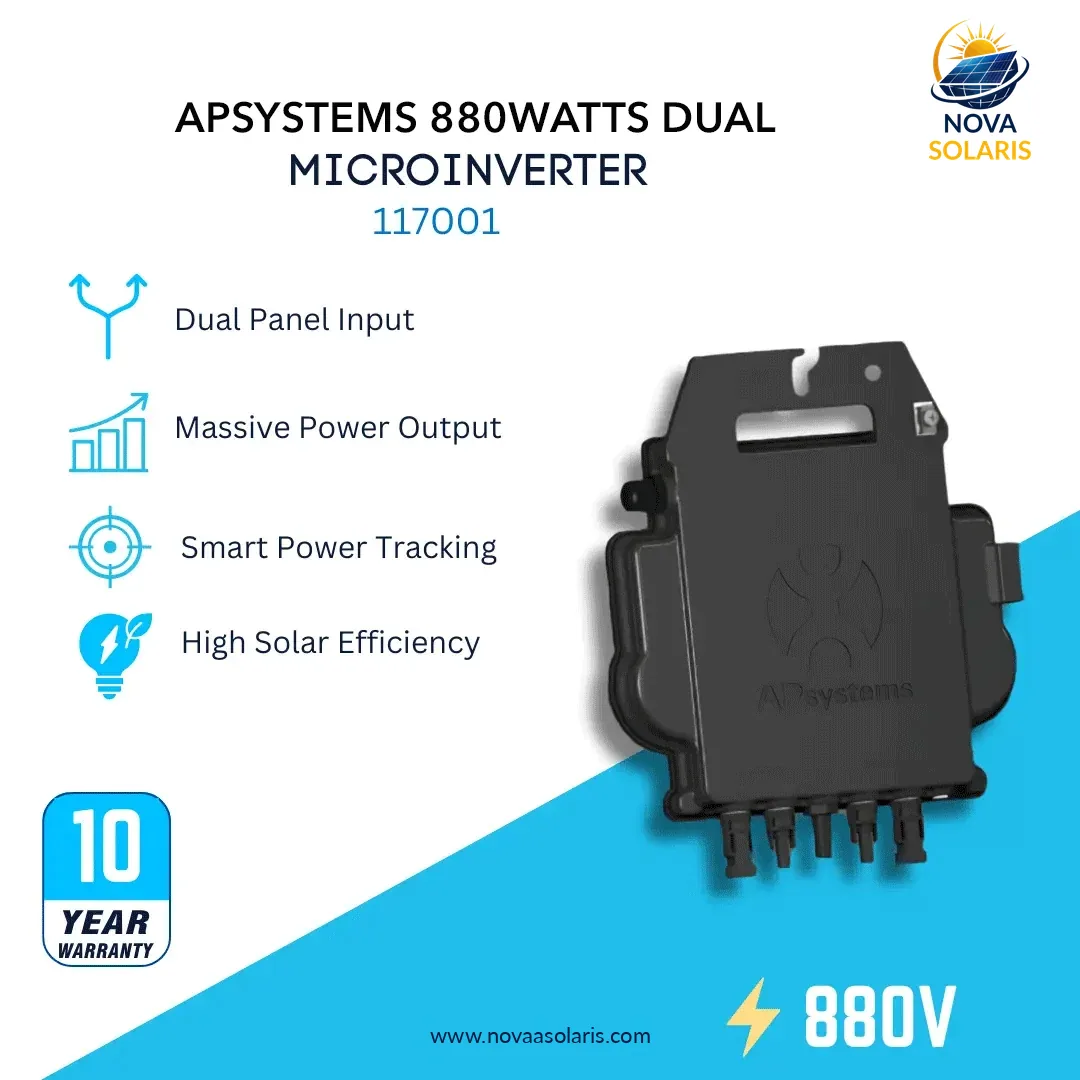

APsystems 117001 DS3-NA-880VA 880 Watts Dual Microinverter
SKU: 117001
- Wattage: 880W
Shipping & Returns Policy
Orders are processed within 24-72 business hours. Freight items ship from the closest available warehouse; a Freight Terms & Conditions form is sent for review and signature before dispatch. Returns follow our Return Merchandise Authorization (RMA) policy.
PRODUCT OVERVIEW
The most powerful Dual Microinverter.
APsystems’ 3rd generation of dual-module microinverters, the DS3 series reaches unprecedented levels of power output to maximize the performance of today’s high-capacity solar panels. Connecting a single microinverter to two PV modules, it features independent MPPT per channel and encrypted wireless ZigBee communication. Its innovative silicone-encapsulated design reduces component count by 20% while providing superior thermal dissipation and weatherproofing.
📡 Encrypted ZigBee
🎛️ ECU Gateway
📈 EMA Portal App
⚡ Dual MPPT Channels
⚖️ Reactive Power Control
TECHNICAL SPECIFICATION (DS3)
Max Output Power 880 VA
Recommended Input Power 300Wp - 660Wp+
Dimensions (W × H × D) 262 × 218 × 41.2 mm
Peak Efficiency 97.0%
Operating Voltage Range 26 - 60 V
Weight 6.8 lbs (3.08 kg)
COMPATIBILITY
- Dual PV Module Input (1-to-2)
- High-output 60 & 72-cell panels
- Stäubli MC4 PV connectors
- APsystems ECU-R / ECU-B Gateways
- Grid-tied single phase (240V)
- CA Rule 21 & NEC 2023 Compliant
WHAT'S IN THE BOX
- • DS3 Microinverter Unit
- • Integration / Mounting Hardware Guide
Downloads
📄 APsystems DS3 Datasheet 📁 DS3 Series User Manual
