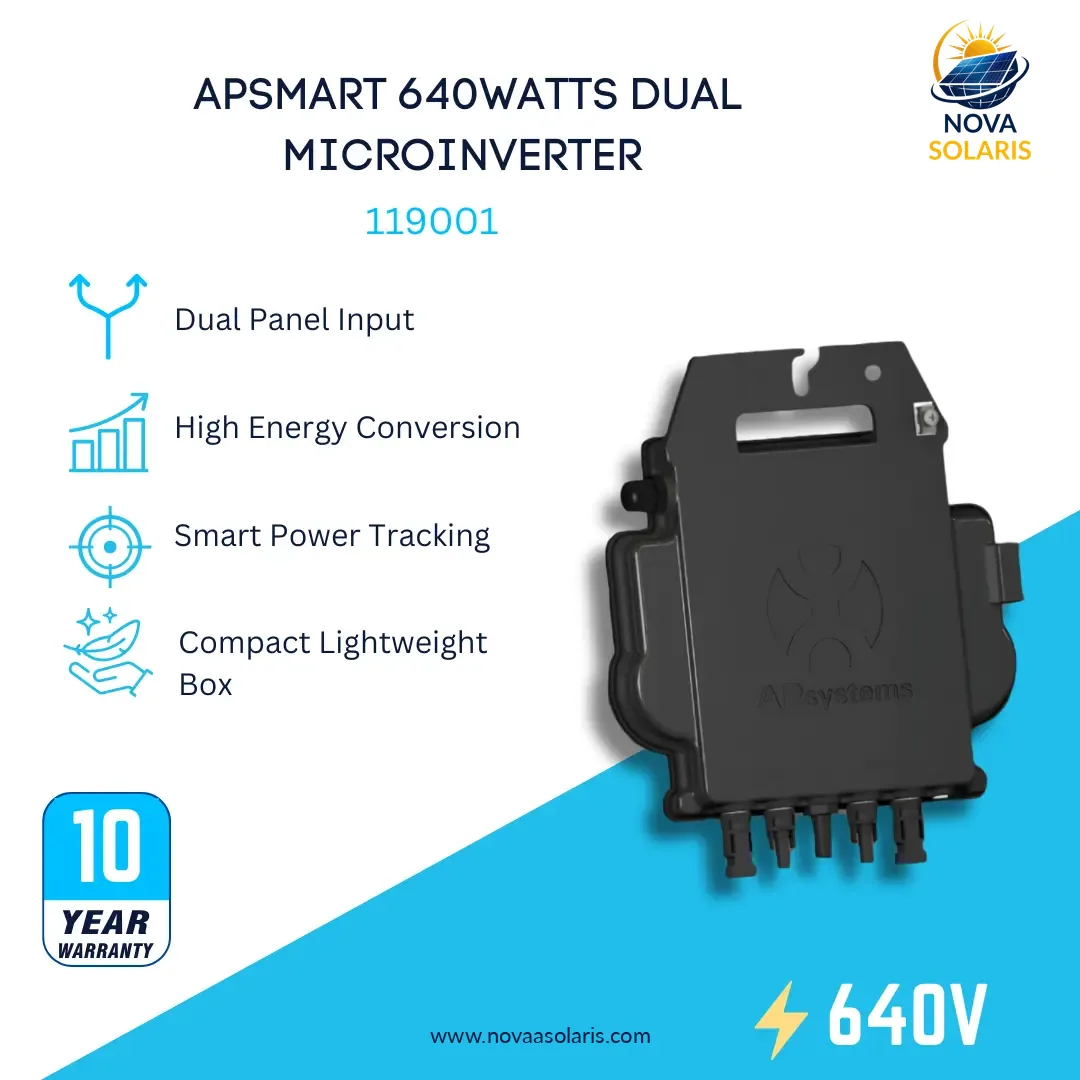

APSmart 119001 DS3-S-NA-640VA 640Watts Dual Microinverter (Supports 250-480Watts per panel)
SKU: 119001
- Wattage: 640W
Shipping & Returns Policy
Orders are processed within 24-72 business hours. Freight items ship from the closest available warehouse; a Freight Terms & Conditions form is sent for review and signature before dispatch. Returns follow our Return Merchandise Authorization (RMA) policy.
APSmart 119001 DS3-S-NA-640VA 640Watts Dual Microinverter (Supports 250-480Watts per panel)
APsystems’ 3rd generation of dual-module, single-phase microinverters, the DS3 product family represents the culmination of years of power conversion expertise and innovation in high-efficiency, high-density power conversion to maximize the peak performance of today’s high-capacity PV modules.

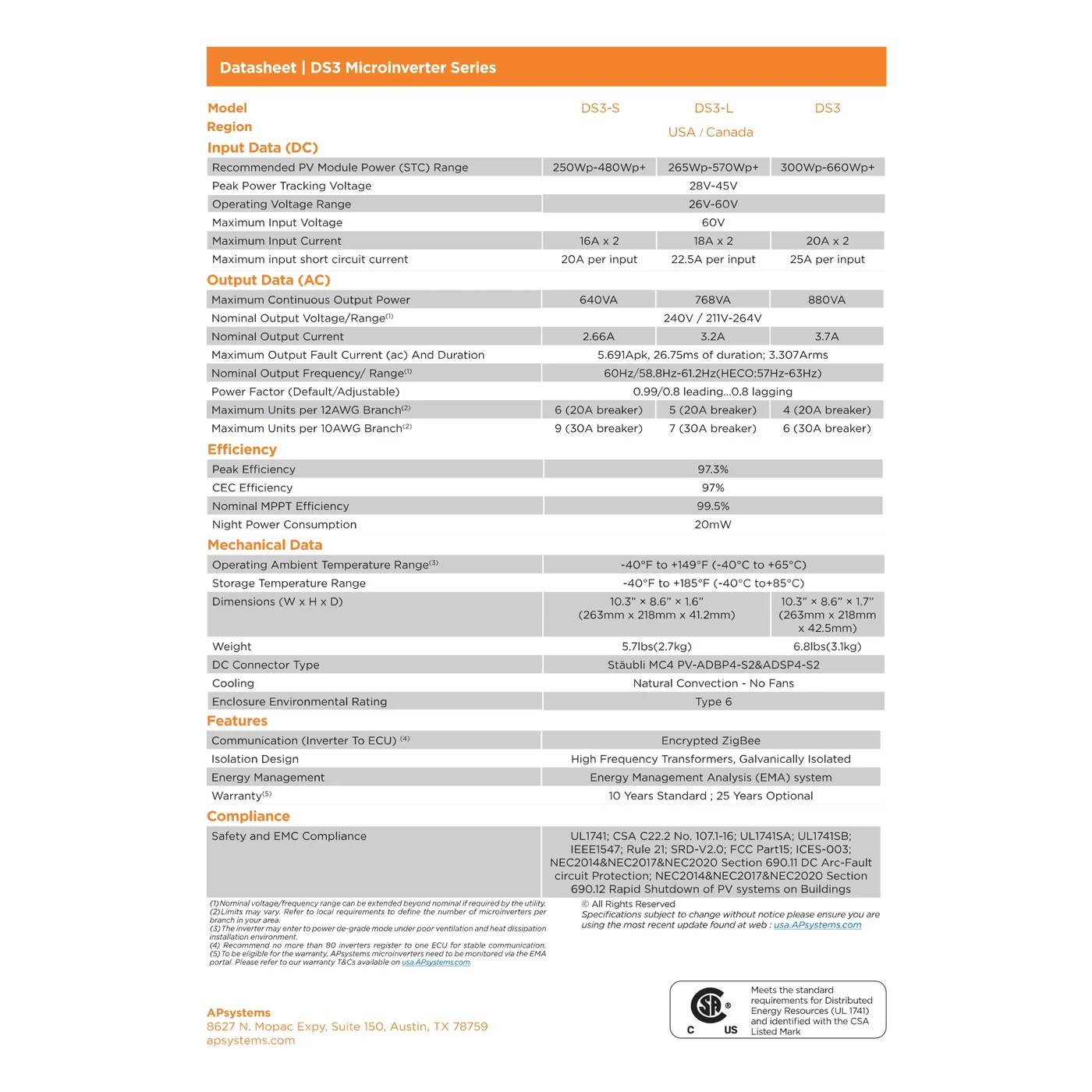

Product Specifications
Maximum Input Voltage
60V
Peak Efficiency
97.3%
Nominal MPPT Efficiency
99.5%
DC Connector Type
Stäubli MC4 PV-ADBP4-S2 & ADSP4-S2
Dimensions (W x H x D)
263mm × 218mm × 41.2mm
Weight
5.7 lbs (2.7 kg)
Quick Installation Guide
📄119001 Installation Guide
