Hoymiles DTU Communication Gateway
SKU: DTU-PRO
- Product Type: Data Transfer Unit (DTU)
Shipping & Returns Policy
Orders are processed within 24-72 business hours. Freight items ship from the closest available warehouse; a Freight Terms & Conditions form is sent for review and signature before dispatch. Returns follow our Return Merchandise Authorization (RMA) policy.
Description

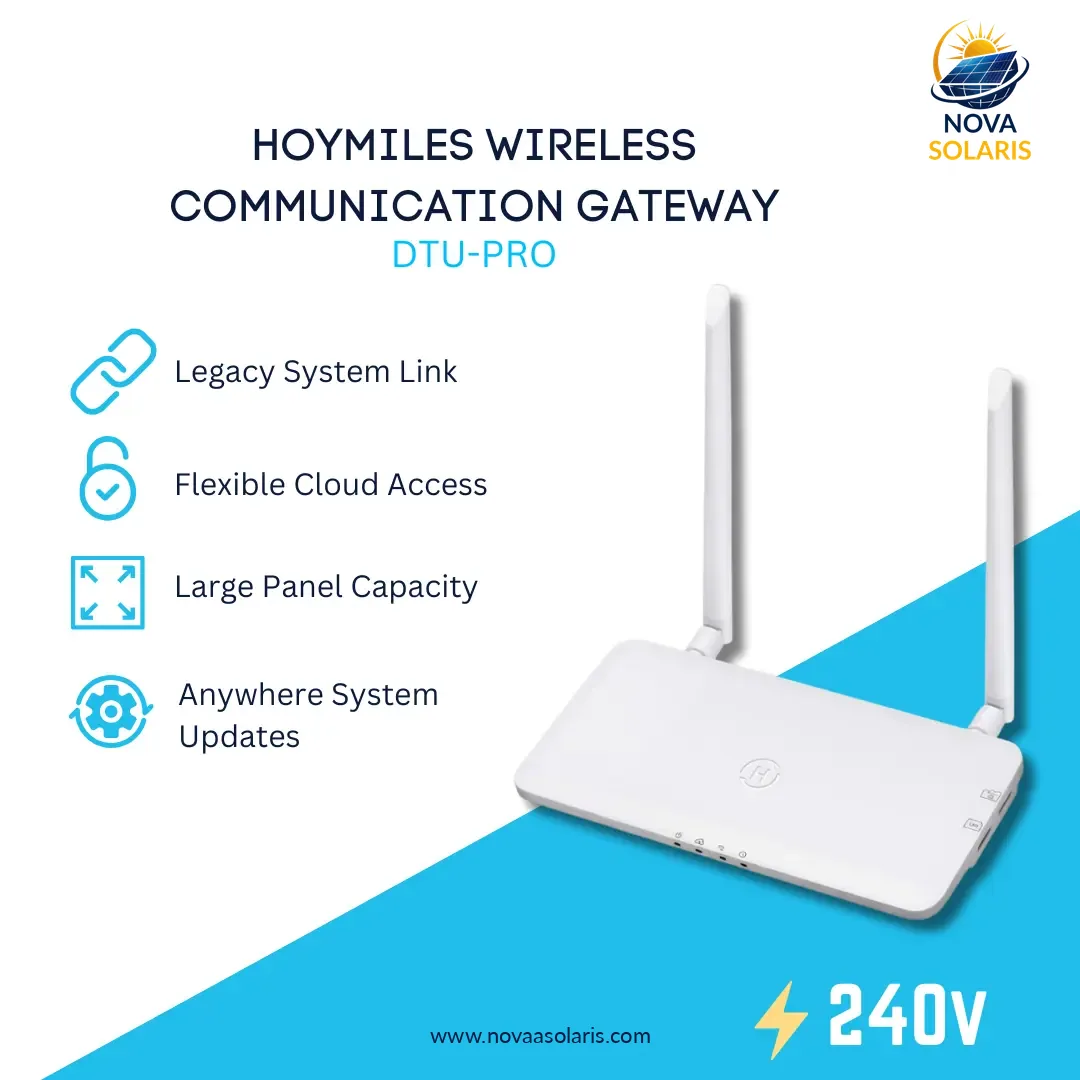

Hoymiles DTU Communication Gateway
The Hoymiles DTU-Pro is a communication hub for your solar energy system. It uses a wireless signal to gather performance data directly from the microinverters attached to your solar panels. Once it collects this information, the device uploads it to the S-Miles Cloud online monitoring platform using Wi-Fi, an Ethernet cable, or 4G cellular data.
Using the newer HMS or HMT series? You need the **Hoymiles DTU-Pro-S 4G **for Sub-1G compatibility. This standard model is for HM and MI series only.
Technical Specifications
- Dimensions: 200 × 101 × 29mm (without antennas)
- Weight: 0.20kg
- Communication to Microinverter: 2.4 GHz Wireless
- Internet connection: Ethernet (RJ45 × 1, 100Mbps) Wi-Fi (802.11b/g/n)
- Power consumption: Typ. 1.5W / Max. 3.0W
- Monitoring capacity: 99 PV modules
- Installation: Wall/Desktop mounting
Resources
Datasheet
✔️ Datasheet
Quick Installation Guide
✔️ Quick Installation Guide
