Enphase ENV-S-AM1-120 Envoy-S Metered Single Phase Revenue Grade Accuracy with Production CT

$700.64 USD

SKU: ENV-S-AM1-120

Product Type: System Gateway & Monitoring

Quantity

Shipping & Returns Policy

Orders are processed within 24-72 business hours. Freight items ship from the closest available warehouse; a Freight Terms & Conditions form is sent for review and signature before dispatch. Returns follow our Return Merchandise Authorization (RMA) policy.

Product description

Enphase

Description

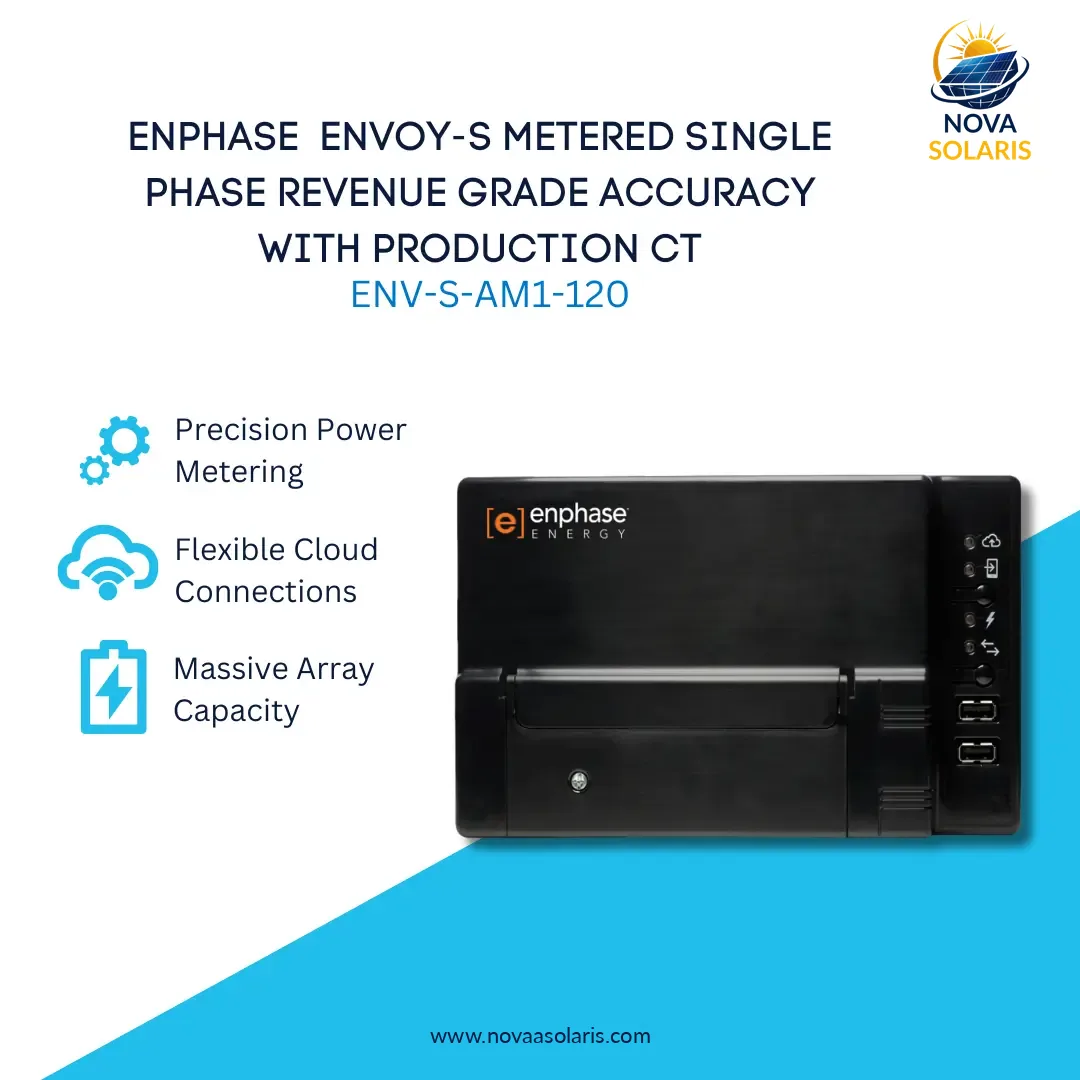

Enphase Envoy-S Metered Communications Gateway ENV-S-AM1-120

The Enphase Envoy-S Metered (ENV-S-AM1-120) is a professional-grade communications gateway designed for legacy Enphase systems. It provides revenue-grade production metering and advanced consumption monitoring, delivering real-time energy data to the Enlighten platform for comprehensive system management.

While this gateway is built for M-Series and S-Series microinverters, it is also a vital component for homeowners looking to add an Enphase IQ Battery to an existing legacy array. By using the Envoy-S Metered, you can bridge the communication between your older microinverters and the modern Enphase IQ storage ecosystem.

Technical Specifications:

Type: Communications Gateway
Envoy-S, Metered ENV-S-AM1-120: Enphase Envoy-S communications gateway with integrated revenue grade PV production metering (ANSI C12.20 +/- 0.5%) and optional consumption monitoring (+/- 2.5%)
Internet Connection Options: Integrated Wi-Fi, Ethernet, Cellular (requires accessory:Enphase Mobile Connect: CELLMODEM-01)
Capacity - Number of microinverters polled: Up to 600
Dimensions (WxHxD): 8.4" x 5" x 1.8"
Weight: 1.10 lbs
Enables web-based monitoring and control
Bidirectional communications for remote upgrade
Easy system configuration using
Installer Toolkit mobile app
Flexible networking with Wi-Fi, Ethernet, or cellular
Designed for installation indoors or out
Works with the Enphase M215, M250, S230, and S280 Microinverters
120VAC, 60Hz
Integrated Wi-Fi
Mobile Connect Ready
