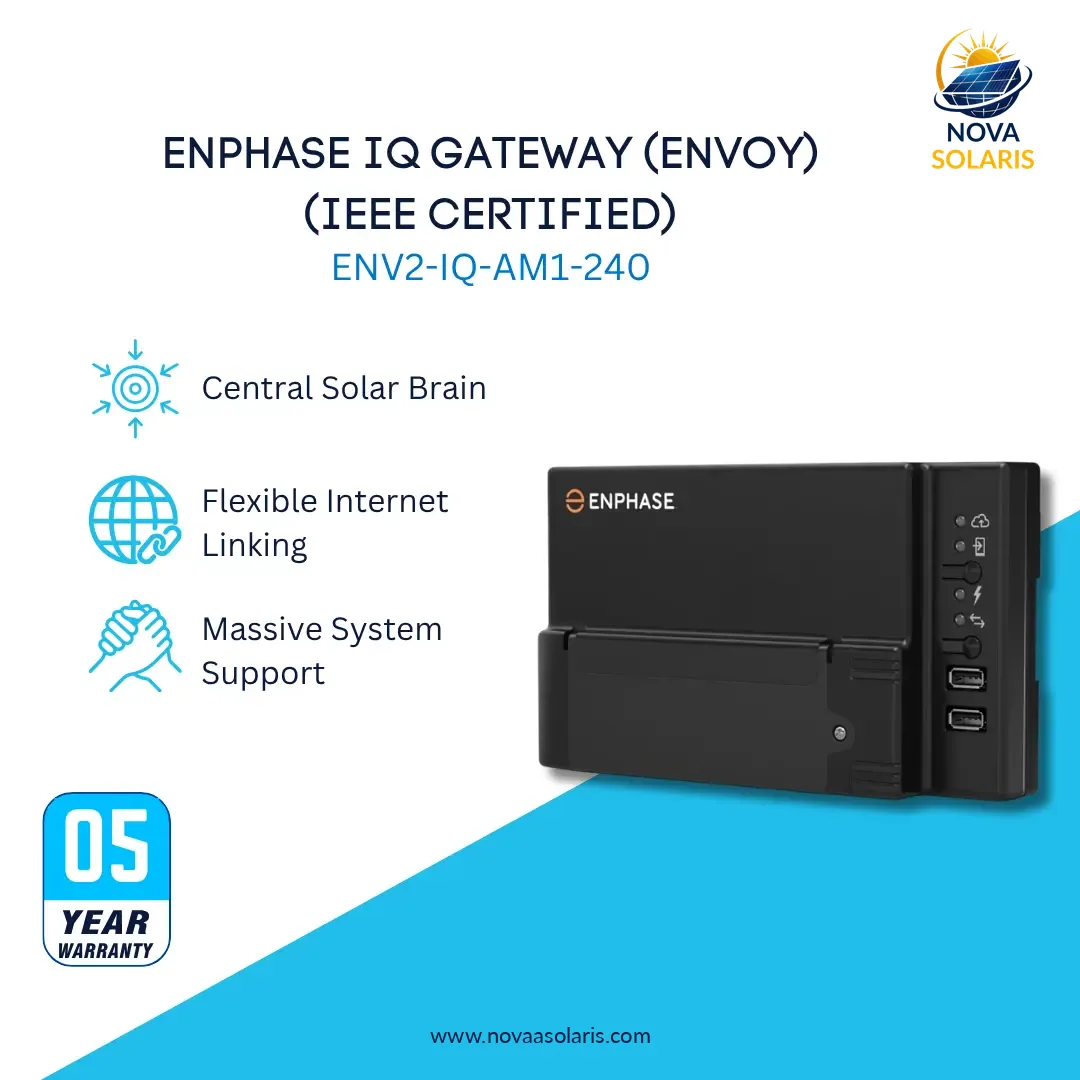

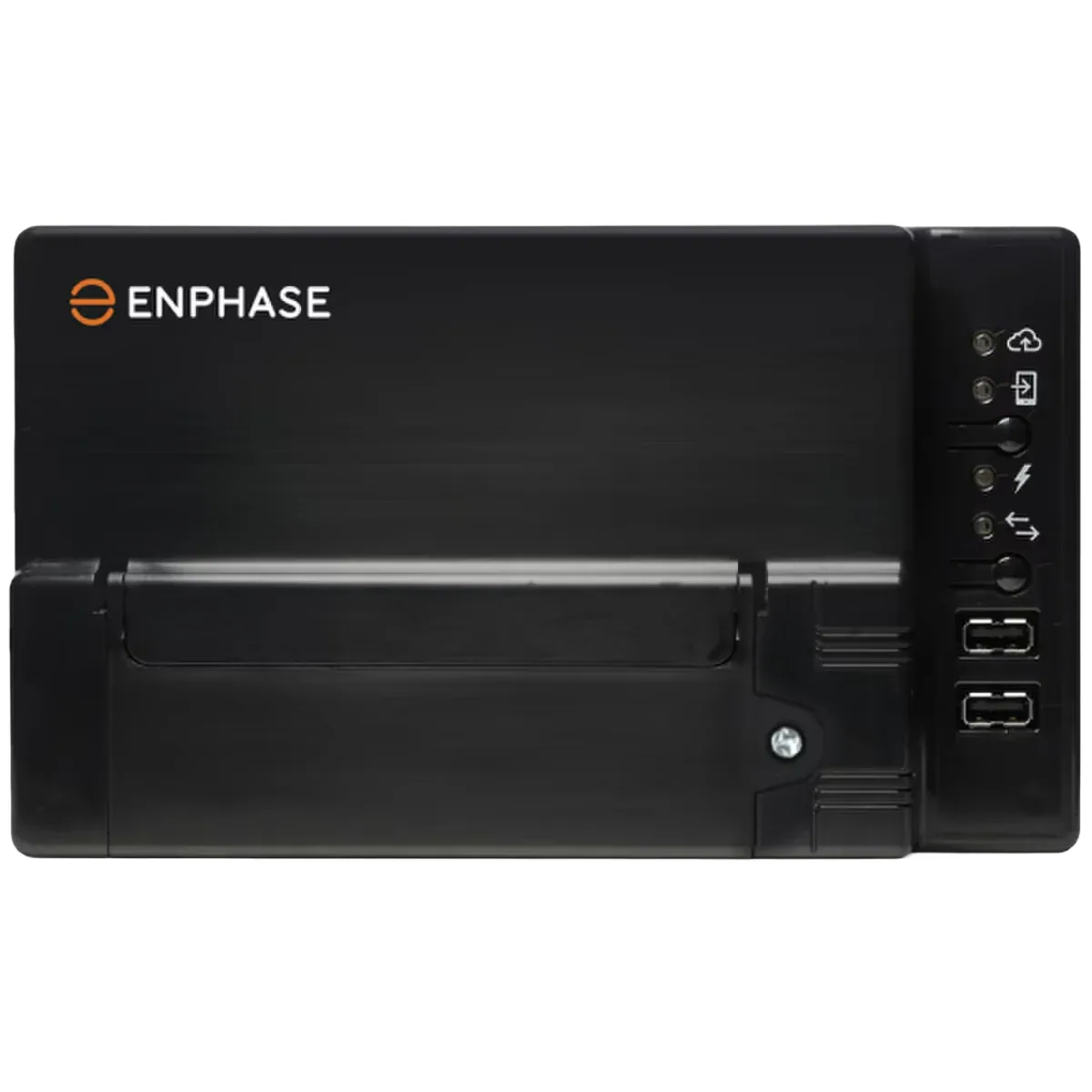

Enphase IQ Gateway (Envoy) ENV2-IQ-AM1-240 (IEEE Certified)
SKU: ENV2-IQ-AM1-240
- Product Type: System Gateway & Monitoring
Shipping & Returns Policy
Orders are processed within 24-72 business hours. Freight items ship from the closest available warehouse; a Freight Terms & Conditions form is sent for review and signature before dispatch. Returns follow our Return Merchandise Authorization (RMA) policy.
Description
An integral component of the Enphase Energy System, the IQ Gateway bridges communication between Enphase IQ Microinverters located on the rooftop and the Enphase App for remote control and monitoring. The IQ Gateway communicates with the IQ Microinverters via standard AC powerlines and the Enphase App via cellular or wireless internet. The IQ Gateway enables homeowners to monitor solar production and home energy consumption (Current Transformers sold separately).
✅ California & Hawaii Compliant: This IQ Gateway is IEEE 1547:2018 certified and meets all CA Rule 21 requirements. It is the required hub for all new IQ7 and IQ8 series installations.
Details
- Designed for installation indoors or outdoors
- Easy system configuration using Enphase Installer App
- Bidirectional communications for remote upgrades
- Supports power export limiting and zero export applications
- Flexible networking with Wi-Fi, Ethernet, or cellular
- 5-year limited warranty
Technical specifications
- 200 A continued rated Production CT
- 120/240 VAC split-phase power
- Internet connectivity via integrated Wi-Fi, Mobile Connect, or Cat5e/Cat6 Ethernet cable
- Typical power consumption: 5 W
- Capacity: Up to 600 microinverters
- Length: 45 mm
- Width: 213 mm
- Height: 126 mm
- Weight: 1.10 lbs
Compatibility
- IQ Microinverters
- IQ Cables
- IQ Battery
What’s in the box
- IQ Gateway
- 200 A continuous rated Production Current Transformer (CT)
