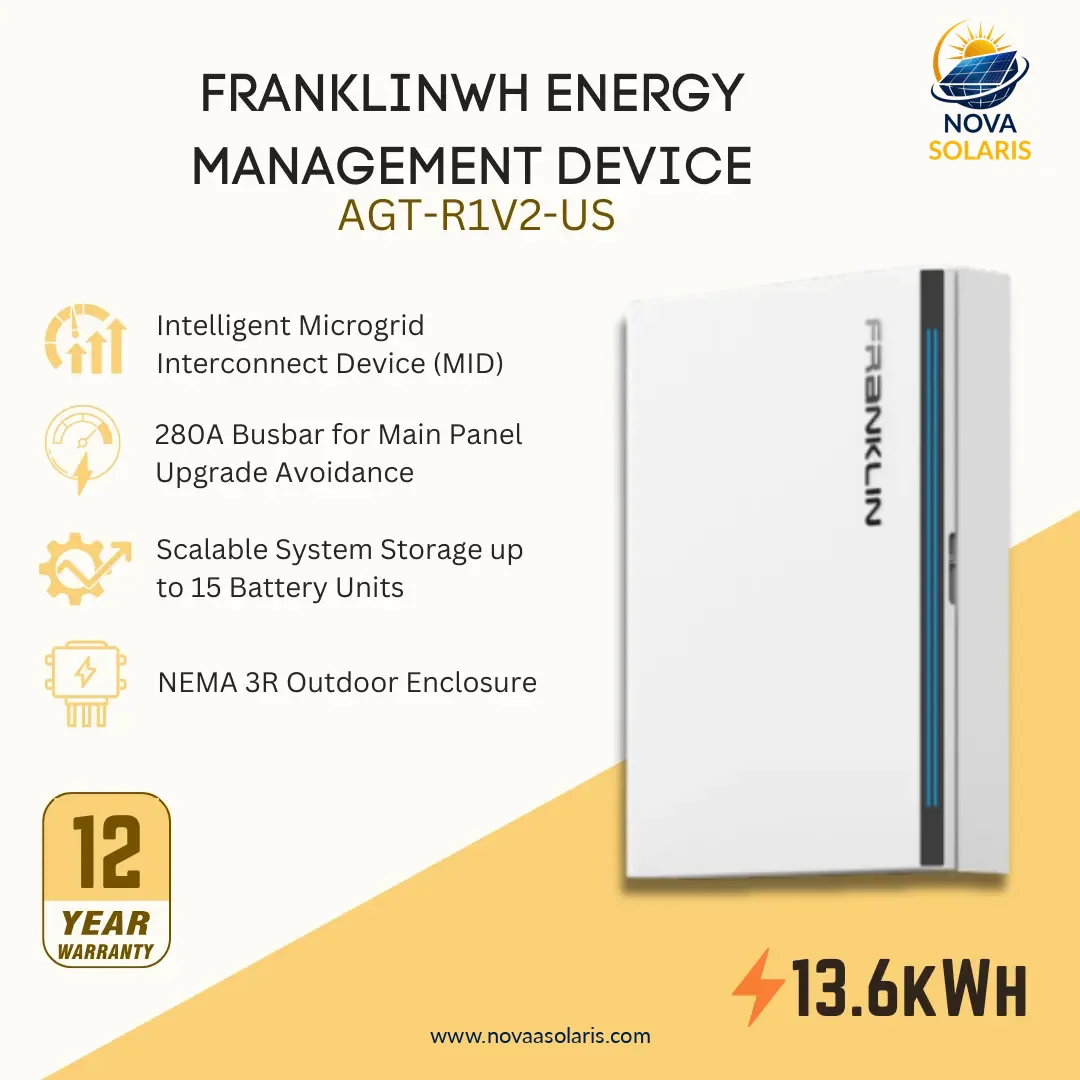

FranklinWH aGate X AGT-R1V2-US Energy Management Device
SKU: FWH-AGT-R1V2-US
Shipping & Returns Policy
Orders are processed within 24-72 business hours. Freight items ship from the closest available warehouse; a Freight Terms & Conditions form is sent for review and signature before dispatch. Returns follow our Return Merchandise Authorization (RMA) policy.
Description
FranklinWH aGate X AGT-R1V2-US Energy Management Device
The aGate serves as the controller for all home power sources by interconnecting solar, grid, batteries, and a standby generator to supply electricity to the home. It seamlessly transitions the home supply from grid power to backup power so that always-on appliances, such as the refrigerator and network router, will not be affected when the grid goes down.
Technical Specifications:
- Coupling: AC-coupled
- Nominal AC Voltage: 120 / 208 V, 120 / 240 V, 60 Hz
- Phase: 2 W+N+PE
- Grid Input Over Current Protection Device: 200 A Max
- aPower Over Current Protection Device: 125 A Max
- Solar Input Over Current Protection Device: 80 A Max
- Backup Load Port Over Current Protection Device: 200 A Max
- Non-backup Load Port Over Current Protection Device: 200 A Max
- Generator Over Current Protection Device1: 200 A Max
- Maximum Supply Fault Current: 22 kA
- Busbar Rating: 280 A
- Work Modes: Self-Consumption, Time of Use, Emergency Backup
- Communications: Ethernet / 4G / Wifi /Bluetooth
- User Interface: FranklinWH App
- Warranty: 12-year limited
- IEC Protective Class: Class I
- Over voltage Category: Category II
- AC Meter: +/- 0.5%
- Dimensions (H × W × D): 31.5 in × 21.7 in × 6.3 in
- Weight: 38.6 lb (17.5 kg)
- Mounting: Wall mount
Downloads

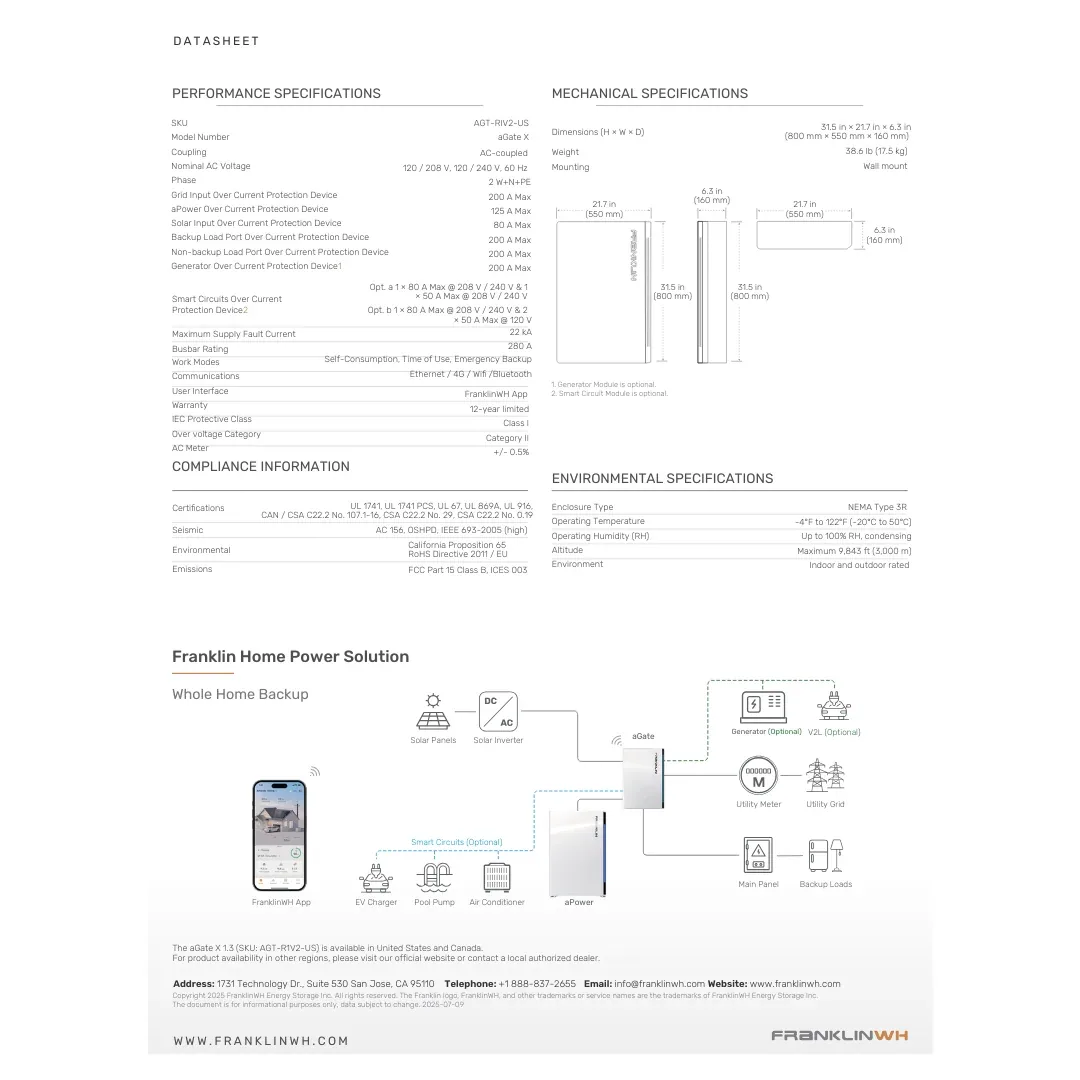

Datasheet
✔️ Datasheet
Quick Installation Guide
No installation guide file resource available. Email support@novaasolaris.com for file request.
Warranty
✔️ 12 Years Limited Warranty
