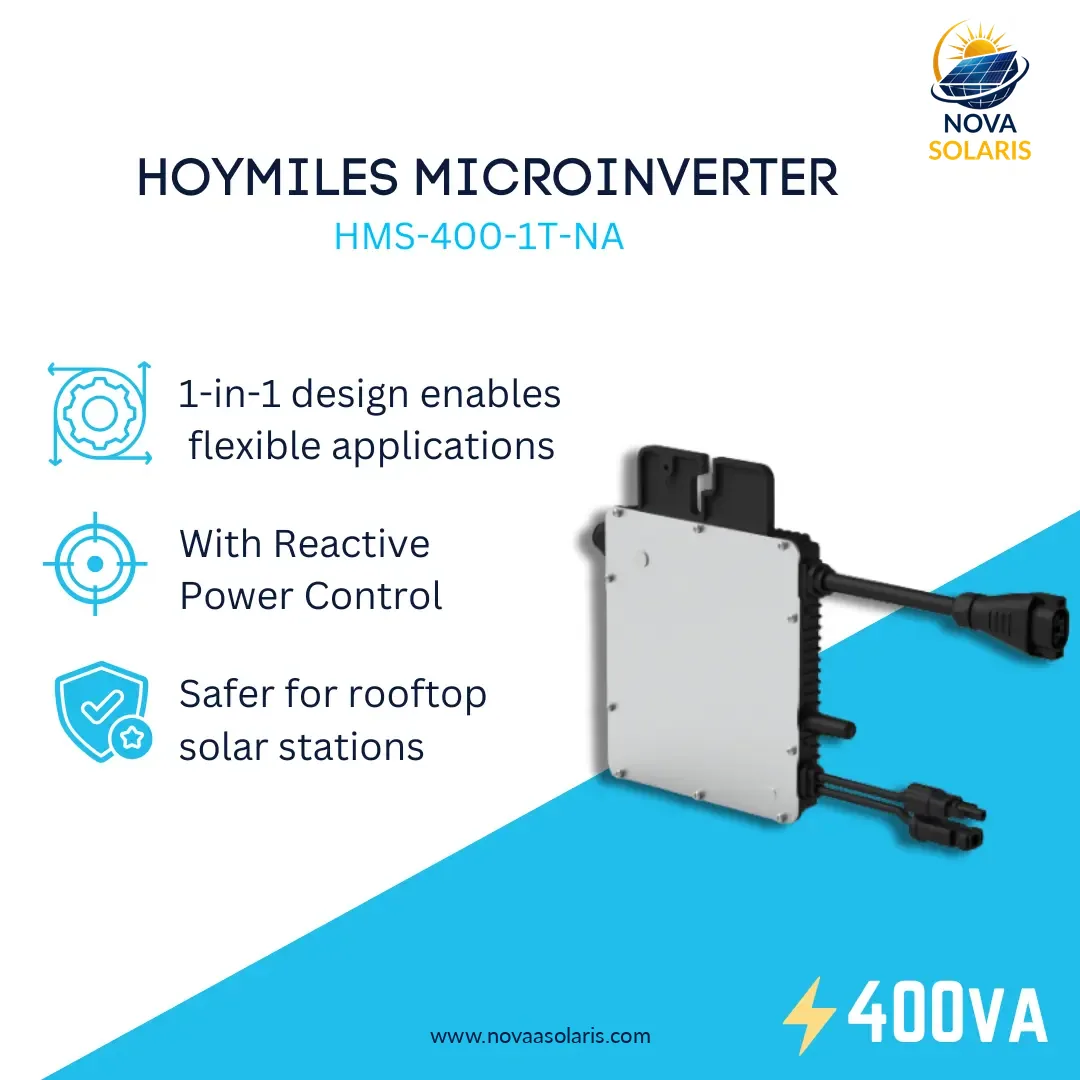

Hoymiles HMS-T Microinverter 400-1T
SKU: HMS-400-1T-NA
Shipping & Returns Policy
Orders are processed within 24-72 business hours. Freight items ship from the closest available warehouse; a Freight Terms & Conditions form is sent for review and signature before dispatch. Returns follow our Return Merchandise Authorization (RMA) policy.
Description
Hoymiles HMS-T Microinverter 400-1T
With the output power up to 500 VA, Hoymiles new microinverter HMS-500 series rank among the highest for 1-in-1 microinverters.
All of these models listed are equipped with reactive power control and can meet the requirements of EN 50549-1:2019, VDE-AR-N 4105:2018, UL 1741, etc.
The new Sub-1G wireless solution enables more stable communication under various environmental conditions.

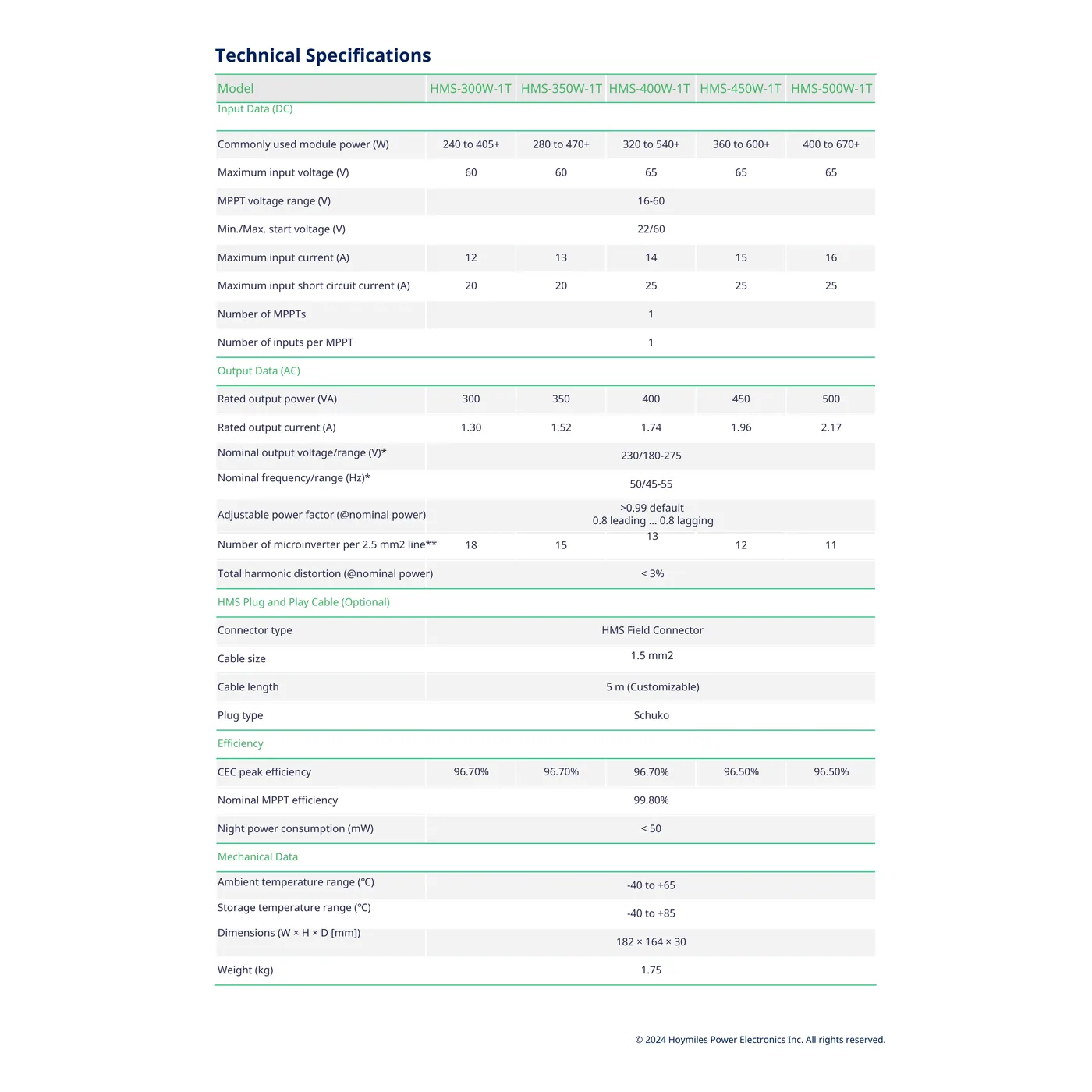

Technical Specification
- Commonly used module power (W): 320 to 540+
- Maximum input voltage (V): 65
- MPPT voltage range (V): 16–60
- Start-up voltage (V): 22
- Maximum input current (A): 12.5
- Maximum input short circuit current (A): 20
- Number of MPPTs: 1
- Number of Inputs per MPPT: 1
- Peak output power (VA): 400
- Maximum continuous output power (VA): 360
- Nominal frequency/range (Hz)1: 60/55–65
- Power factor (adjustable): > 0.99 default 0.8 leading … 0.8 lagging
- Total harmonic distortion: < 3%
- CEC peak efficiency: 96.70%
- Nominal MPPT efficiency: 99.80%
- Night power consumption (mW): < 50
- Ambient temperature range (℃): -40 to +65
- Dimensions (W × H × D [mm]): 182 × 164 × 30
- Weight (kg): 1.75
- Enclosure rating: Outdoor-IP67 (NEMA6)
- Cooling: Natural convection (no fans)
Resources
Datasheet
Quick Installation Guide
No installation guide available. Email support@novaasolaris.com for file request.
