Trojan J250 6V 250Ah Flooded Lead Acid Battery W/ T2 Technology
SKU: J-250
- Capacity: 250Ah
- Product Type: Flooded Lead-Acid (FLA)
Shipping & Returns Policy
Orders are processed within 24-72 business hours. Freight items ship from the closest available warehouse; a Freight Terms & Conditions form is sent for review and signature before dispatch. Returns follow our Return Merchandise Authorization (RMA) policy.
Description

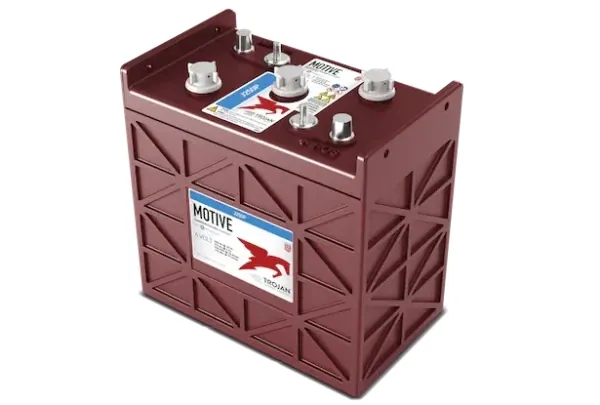

Trojan J250P 6V 250Ah Motive Deep-Cycle Battery (Group 901)
The Trojan J250P is a premium 6V flooded lead-acid battery from the flagship Signature Line. Engineered for the most demanding deep-cycle applications, this 250Ah battery is the professional’s gold standard for aerial work platforms (AWPs), industrial floor machines, and high-capacity solar arrays.

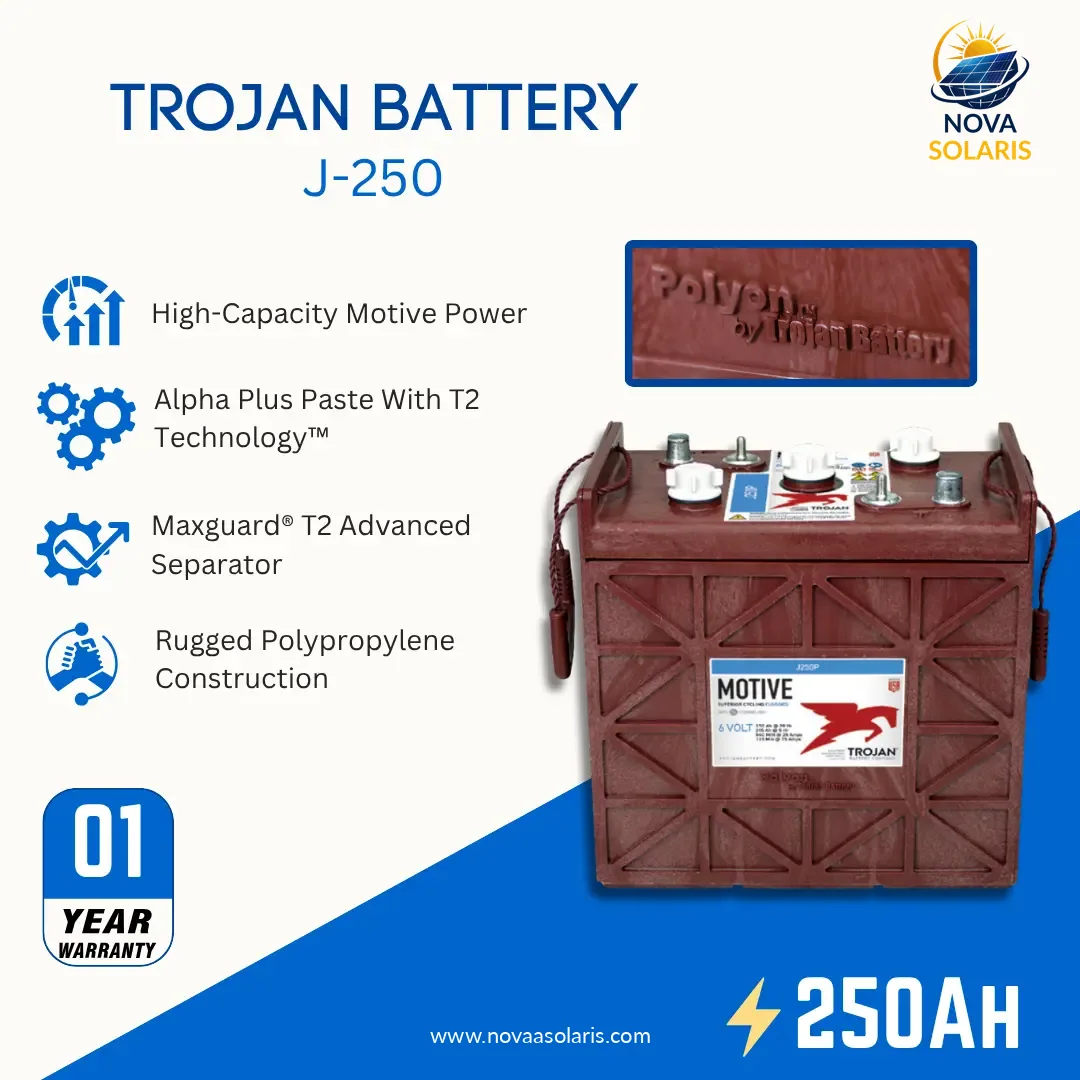

The Trojan Advantage: T2 Technology™
- Alpha Plus® Paste: A proprietary, high-density paste formulation that optimizes porosity for sustained performance and higher total ampere-hours.
- Maxguard® T2 Separator: Multi-rib geometry keeps acid channels open longer, reducing stratification and significantly extending service life in heavy-cycling apps.
- HydroLink™ Ready: Compatible with the single-point watering system, allowing you to maintain a full battery bank in under 30 seconds.
- Rugged Polyon™ Case: Heat and chemical-resistant polypropylene construction protects the internal plates from the mechanical stress of industrial job sites.
Features & Benefits
- Manufactured polypropylene rugged case
- Heat and corrosion resistant
- With braided rope handles for easy carrying
- Only 5-15% self-discharge per month
- HydroLink™ single-point watering system available
- HydroLink™ single-point watering system makes maintenance easy and safe
- 99% recyclable
Technical Specifications:
- Capacity Minutes: @25 Amps / 540
- Capacity Minutes: @75 Amps / 135
- Capacity Amp-Hours: 10-Hr Rate / 230 Ah
- Capacity Amp-Hours: 20-Hr Rate / 250 Ah
- Capacity Amp-Hours: 100-Hr Rate / 278 Ah
- Length Inches (mm): 11.66” / (296mm)
- Width Inches (mm): 6.94” / (176mm)
- Height Inches (mm): 11.54” / (293mm)
- Weight lbs. (kg): 72 (33)
- Operating Temperature: -4°F to 113°F (-20°C to +45°C)
- Part Number: 6V 250Ah
- Group Size: 901
- Battery Type: Deep Cycle Flooded Lead Acid Batteries
- Battery Voltage: 6 Volt
Resources

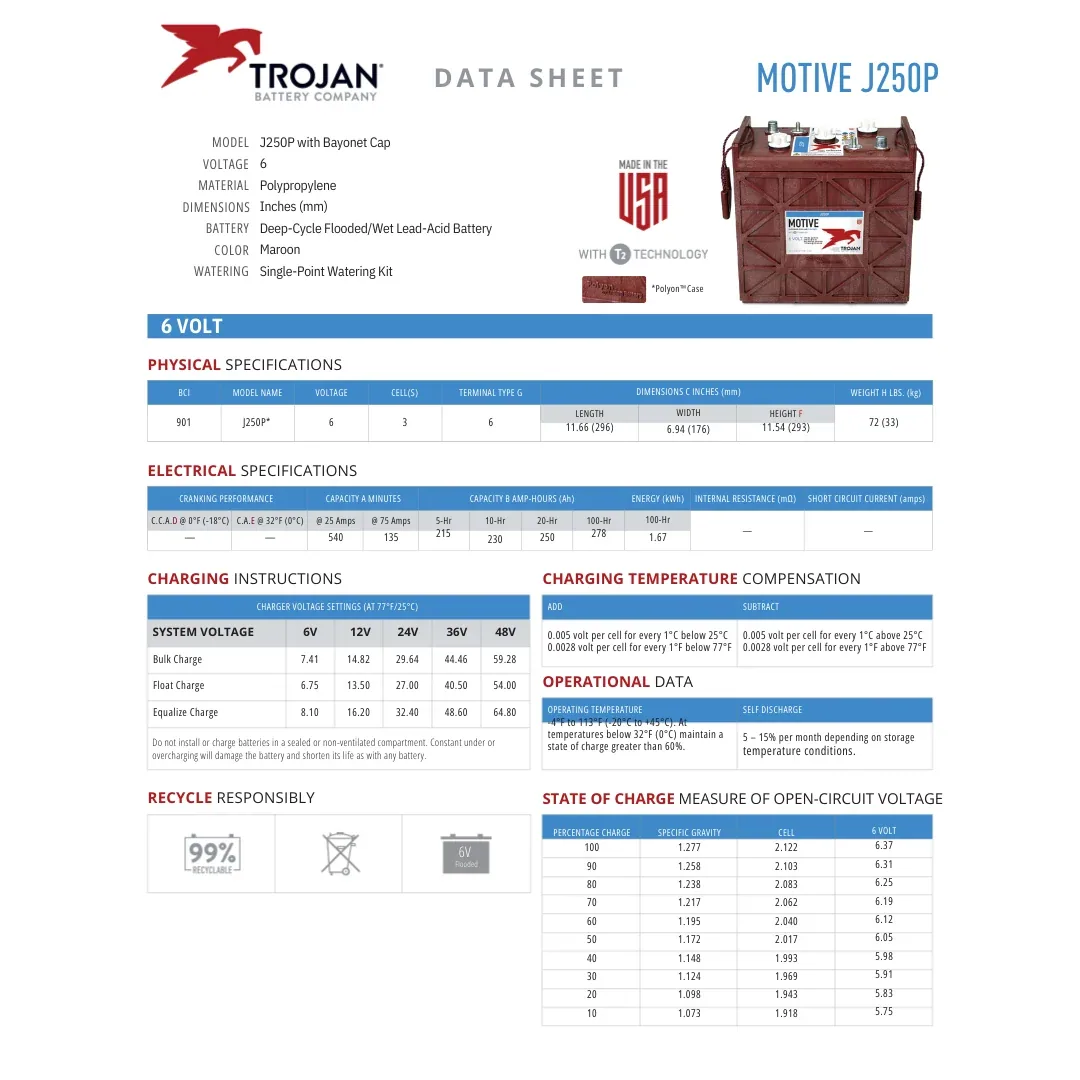

Datasheet
Quick Installation Guide
No installation guide available. Email support@novaasolaris.com for file request.
Warranty
1 Year Warranty
