SMA

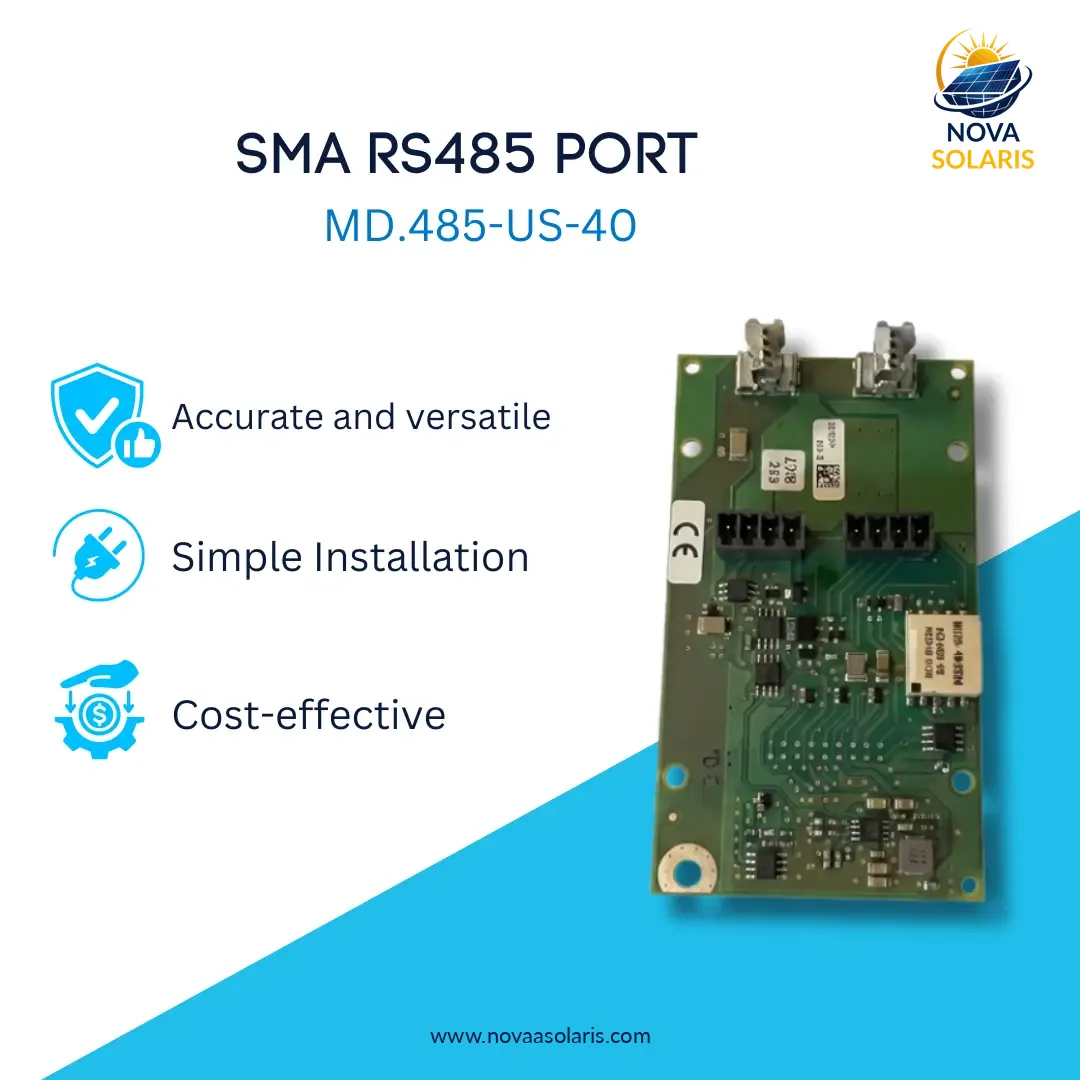

SMA MD.485-US-40 RS485 Port For SMA Inverters
$179.31 USD
SKU: MD.485-US-40
- Product Type: Communication Board
Quantity
1
Shipping & Returns Policy
Orders are processed within 24-72 business hours. Freight items ship from the closest available warehouse; a Freight Terms & Conditions form is sent for review and signature before dispatch. Returns follow our Return Merchandise Authorization (RMA) policy.
Description
SMA RS485 Port for SMA Inverters
RS485 port for SMA inverters.
To be bundled with the RGM05KIT-10 for use in RGM05KIT-10-485.
Technical Specifications
- Manufacturer Part Number: MD.485-US-40
- Shipping Weight: 1 lb
- Dimensions: 5.4 x 6.4 x 2.3 Inches
- Weight: 2.3 lbs
- Maximum Allowed System Voltage: 1000 VDC
- Compatible Inverters: All SolarEdge Single Phase and Three Phase Inverters
- Input Connector: MC4 Compatible
- Output Wire Type/Connector: Double Insulated; MC4 Compatible
- Output Wire Length: 3.90 Feet
- Operating Temperature Range: -40 to +85°C
- Protection Rating: IP68/NEMA6P
- Relative Humidity: 0-100%
- EMC Compliance: FCC Part15 Class B, IEC61000-6-2, IEC61000-6-3
- Safety: IEC62109-1 (Class II Safety), UL1741
- RoHS Compliance: Yes
- Rated Input DC Power: 505 Watts
- Absolute Maximum Input Voltage: 83 VDC
- MPPT Operating Range: 12.5 - 83 Volts
- Maximum Short Circuit Current (Isc): 14 ADC
- Maximum DC Input Current: 17.5 ADC
- Maximum Efficiency: 99.5%
- Weighted Efficiency: 98.6%
Downloads
Datasheet
✔️ Datasheet
Quick Installation Guide
✔️ Quick Installation Guide
Warranty
✔️ Warranty
