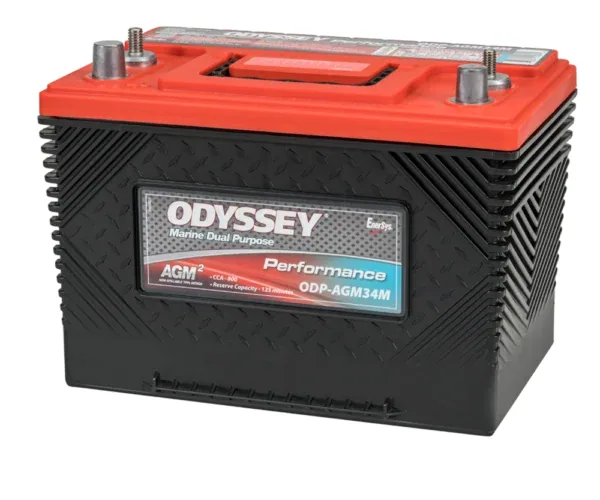

Odyssey Battery ODP-AGM34M 12VDC 65Ah Performance Series AGM Battery
SKU: ODP-AGM34M
- Capacity: 65Ah
- Product Type: Marine Dual-Purpose Battery
Shipping & Returns Policy
Orders are processed within 24-72 business hours. Freight items ship from the closest available warehouse; a Freight Terms & Conditions form is sent for review and signature before dispatch. Returns follow our Return Merchandise Authorization (RMA) policy.
Description
ODYSSEY Performance Battery ODP-AGM34M (34M-790)
Like an athlete that is both a sprinter and a long distance runner, the ODYSSEY Marine Dual Purpose battery has both massive starting power and amazing deep cycling capability – up to 400 cycles at 80% depth of discharge. With twice the overall power and three times the life of conventional marine batteries, the ODYSSEY battery is ideal for trolling, starting, and for powering the many on-board electronic accessories common in today’s boats and recreational vehicles.
SAE posts and 3/8 inch positive and 5/16 inch negative thread SS stud terminals.
Technical Specifications:
- Voltage: 12V
- Pulse (5 second) Hot Cranking Amps (PHCA): 1500A
- MHPCA: 1350
- MPCA: 1200
- Cold Cranking Amps (CCA): 800A
- HCA: 1200A
- MCA: 1370A
- 20Hr Nominal Capacity (Ah): 65AH
- 10Hr Nominal Capacity (Ah): 58AH
- Reserve Capacity Minutes: 130 mins
- Terminal: SAE and 3/8-16” Stud (Pos.), 5/16-18” Stud (Neg.)
- Torque Spec in-lbs (Nm max): 200 (22.6)/100 (11.3) studs only
- Internal Resistance (mΩ): 2.9mΩ
- Short Circuit (A): 2400A
- Recommended Min. Charging Current (A): 5.8A
- Operating Temperature Range: -40°F / -40°C to 140°F / +60°C
- Optimum Storage Temperature: 68°F / +20°C
- UPC: 635241140804
- Length: 10.90 in
- Width: 6.80 in
- Height (terminals included): 7.80 in
- Height (container): 7.20 in
- Weight: 46.70 lbs
Resources

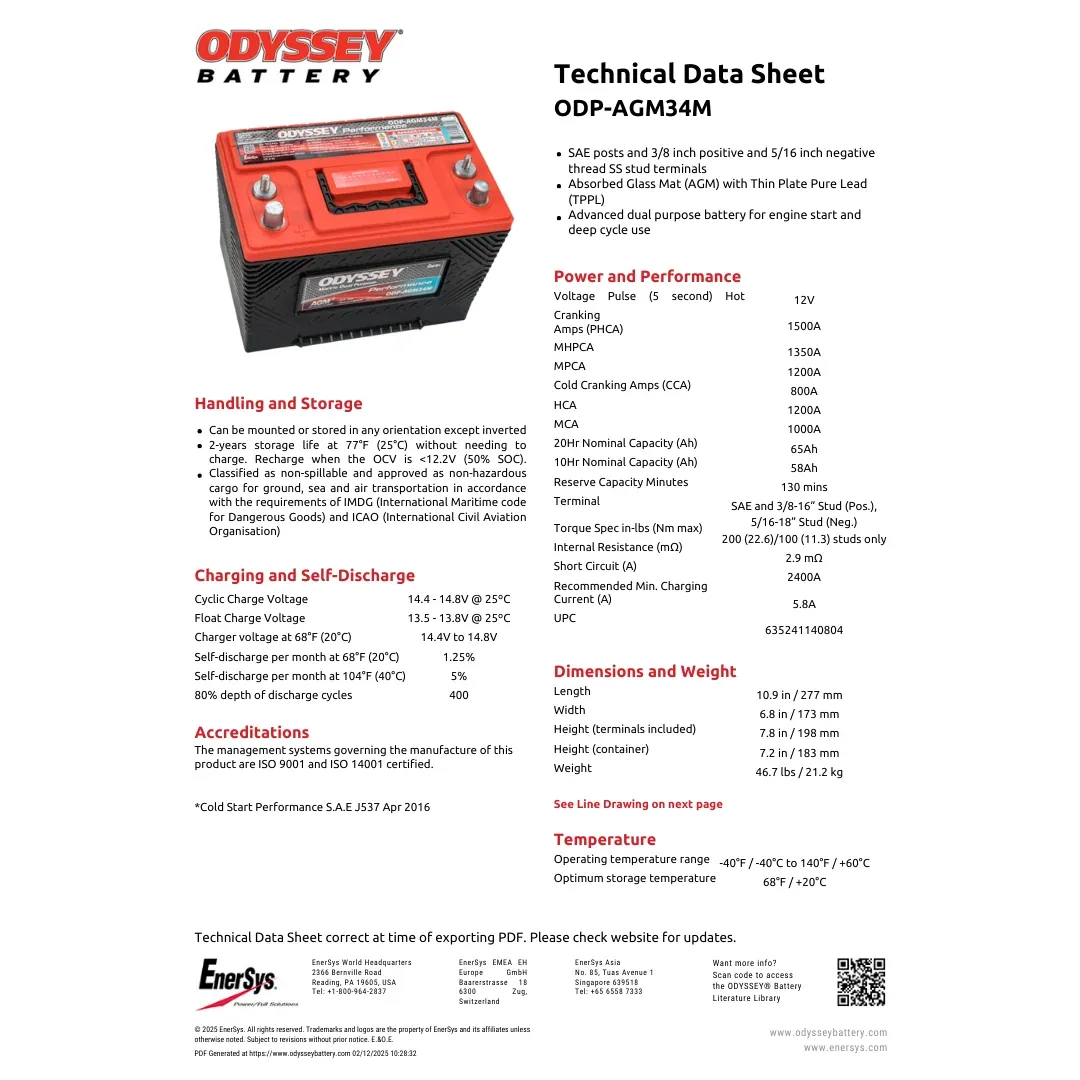

Datasheet
Quick Installation Guide
No installation guide available. Email support@novaasolaris.com for file request.
