Odyssey Battery ODP-AGM47 H5 L2 12VDC 64Ah Extreme Series AGM Battery
SKU: ODP-AGM47 H5 L2
- Capacity: 64Ah
- Product Type: Automotive
Shipping & Returns Policy
Orders are processed within 24-72 business hours. Freight items ship from the closest available warehouse; a Freight Terms & Conditions form is sent for review and signature before dispatch. Returns follow our Return Merchandise Authorization (RMA) policy.
Description

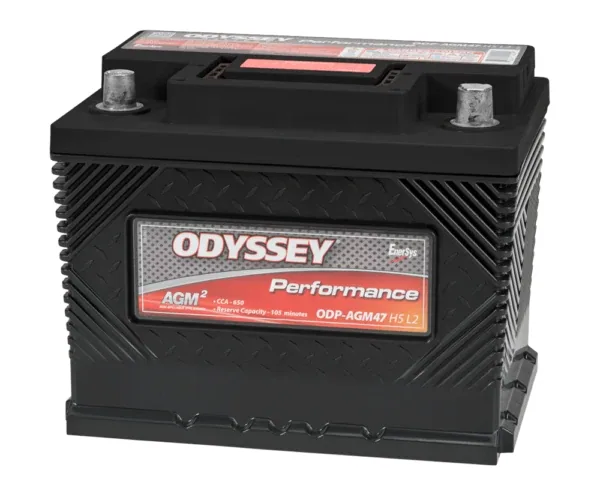

Odyssey Battery ODP-AGM47 H5 L2 12VDC 64Ah Extreme Series AGM Battery
Designed to handle the increased use of onboard accessories in today’s vehicles, ODYSSEY Performance Series batteries combine long service life, high reliability and deep cycle capabilities. The ODYSSEY Performance series batteries provide all the reliability of the ODYSSEY Extreme Series batteries but without the high cold cranking amps (CCA) or reserve capacity (RC) that many people may not require.
Technical Specifications:
- Length: 9.50 in
- Width: 6.90 in
- Height (terminals included): 7.40 in
- Height (container): 7.50 in
- Weight: 41.88 lb
- Voltage: 12V
- Pulse (5 second) Hot Cranking Amps (PHCA): 1150A
- Cold Cranking Amps (CCA): 650A
- HCA: 850A
- MCA: 750A
- 20Hr Nominal Capacity (Ah): 64Ah
- 10Hr Nominal Capacity (Ah): 58Ah
- Reserve Capacity Minutes: 105 Mins
- Terminal: SAE
- Torque Spec in-lbs (Nm max): N/A
- Internal Resistance (mΩ): 3.2 mΩ
- Short Circuit (A): 1800A
- Recommended Min. Charging Current (A): 5.8A
- Operating Temperature Range: -40°F / -40°C to 140°F / +60°C
- Optimum Storage Temperature: 68°F / +20°C
- UPC: 635241142020
