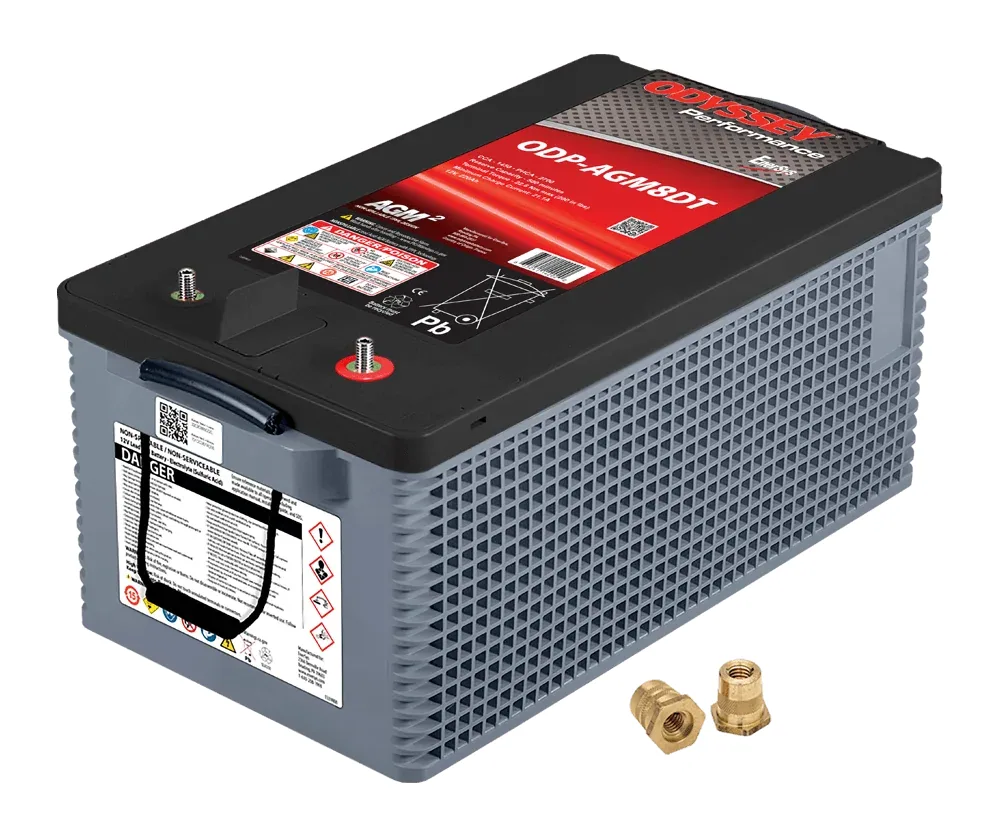

Odyssey Battery ODP-AGM8DT 12V 220Ah Extreme AGM Battery
SKU: ODP-AGM8DT
- Capacity: 220Ah
- Product Type: Automotive
Shipping & Returns Policy
Orders are processed within 24-72 business hours. Freight items ship from the closest available warehouse; a Freight Terms & Conditions form is sent for review and signature before dispatch. Returns follow our Return Merchandise Authorization (RMA) policy.
Description
Odyssey Battery ODP-AGM8DT 12VDC 220Ah Extreme Series AGM Battery
Whether it’s a heavy duty commercial truck, an earth mover, a bus or a marine application, you depend on the vehicle’s electronics to provide valuable data, direction and even safety features. Therefore, you need a battery that can power those features without worry of failure. The ODYSSEY Performance ODP-AGM8DT battery meets the ever-increasing power demands of today’s heavy vehicle applications.
Technical Specifications:
- Length: 20.40 in
- Width: 10.80 in
- Height (terminals included): 9.50 in
- Height (container): 8.50 in
- Shipping Weight: 152 lb
- Voltage: 12V
- Pulse (5 second) Hot Cranking Amps (PHCA): 2700A
- Cold Cranking Amps (CCA): 1450A
- HCA: 2150A
- MCA: 1800A
- 20Hr Nominal Capacity (Ah): 220Ah
- 10Hr Nominal Capacity (Ah): 211Ah
- Reserve Capacity Minutes: 500 Mins
- Terminal: 3/8-16" Stud; SAE terminal adaptor kit included
- Torque Spec in-lbs (Nm max): N/A
- Internal Resistance (mΩ): 1.7 mΩ
- Recommended Min. Charging Current (A): 6200A
- Operating Temperature Range: -40°F / -40°C to 140°F / +60°C
- Optimum Storage Temperature: 68°F / +20°C
- UPC: 635241142020
Resources

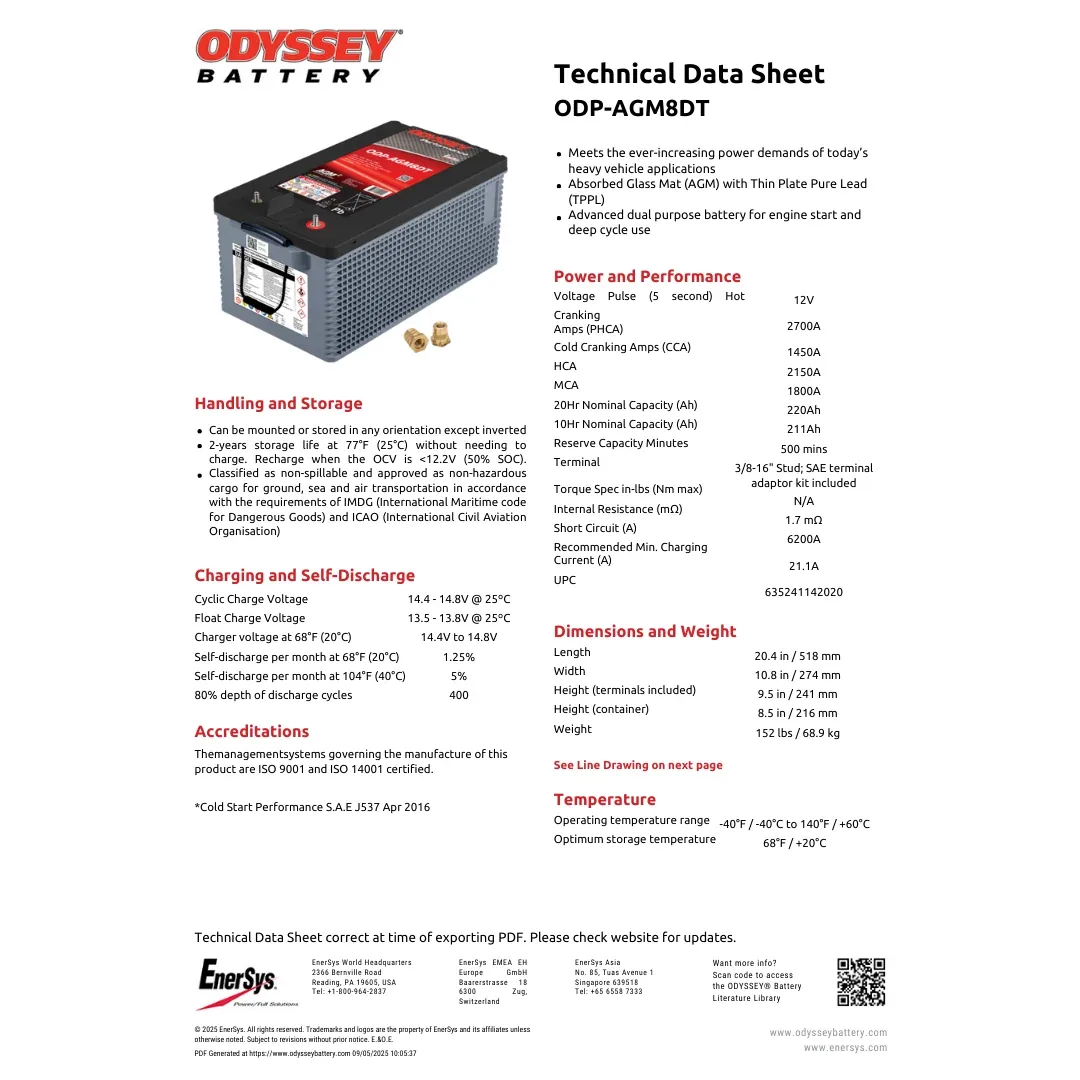

Datasheet
✔️ Datasheet
Quick Installation Guide
No installation guide available. Email support@novaasolaris.com for file request.
