Odyssey Battery ODX-ACE31 12VDC 103Ah Extreme Series AGM Battery
SKU: ODX-ACE31
- Capacity: 103Ah
- Product Type: Heavy Duty
Shipping & Returns Policy
Orders are processed within 24-72 business hours. Freight items ship from the closest available warehouse; a Freight Terms & Conditions form is sent for review and signature before dispatch. Returns follow our Return Merchandise Authorization (RMA) policy.
Description

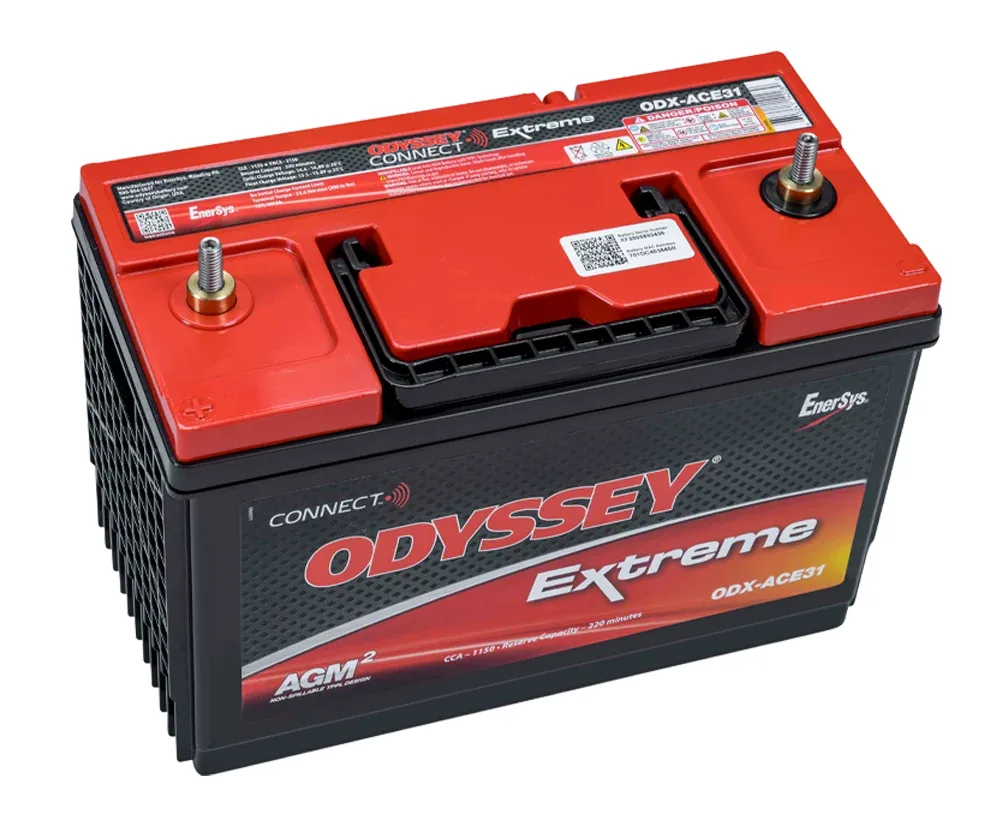

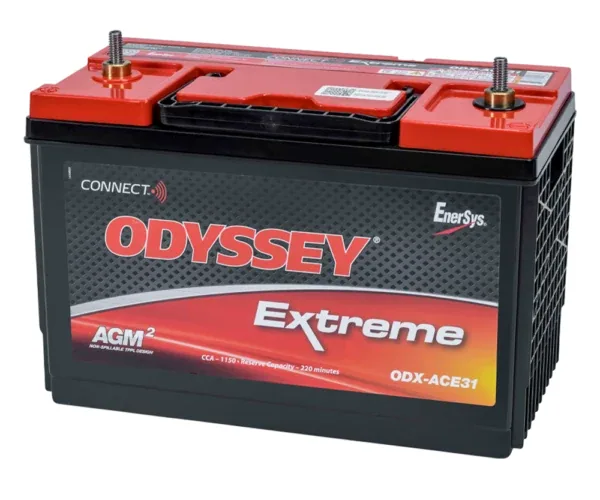

Odyssey Battery ODX-ACE31 12VDC 103Ah Extreme Series AGM Battery
Featuring rugged construction and packed tightly with pure lead plates, the non-spillable AGM design ODYSSEY battery protects against the shock and vibration that can quickly destroy other batteries. And the pure lead plates mean 2 times the overall power and 3 times the life of conventional batteries, up to 400 cycles at 80% depth of discharge.
Technical Specifications:
- Length: 13.00 in
- Width: 6.80 in
- Height (terminals included): 9.50 in
- Height (container): 8.50 in
- Weight: 77.80 lbs
- Voltage: 12V
- Pulse (5 second) Hot Cranking Amps (PHCA): 2150A
- Cold Cranking Amps (CCA): 1150A
- HCA: 1545A
- MCA: 1370A
- 20Hr Nominal Capacity (Ah): 103Ah
- 10Hr Nominal Capacity (Ah): 98Ah
- Reserve Capacity Minutes: 220 mins
- Terminal: 3/8-16" Stud
- Torque Spec in-lbs (Nm max): 200 (22.6) studs only
- Internal Resistance (mΩ): 2.2mΩ
- Short Circuit (A): 5000A
- Recommended Min. Charging Current (A): 9.8A
- Operating Temperature Range: -40°F / -40°C to 176°F / +80°C
- Optimum Storage Temperature: 68°F / +20°C
Resources

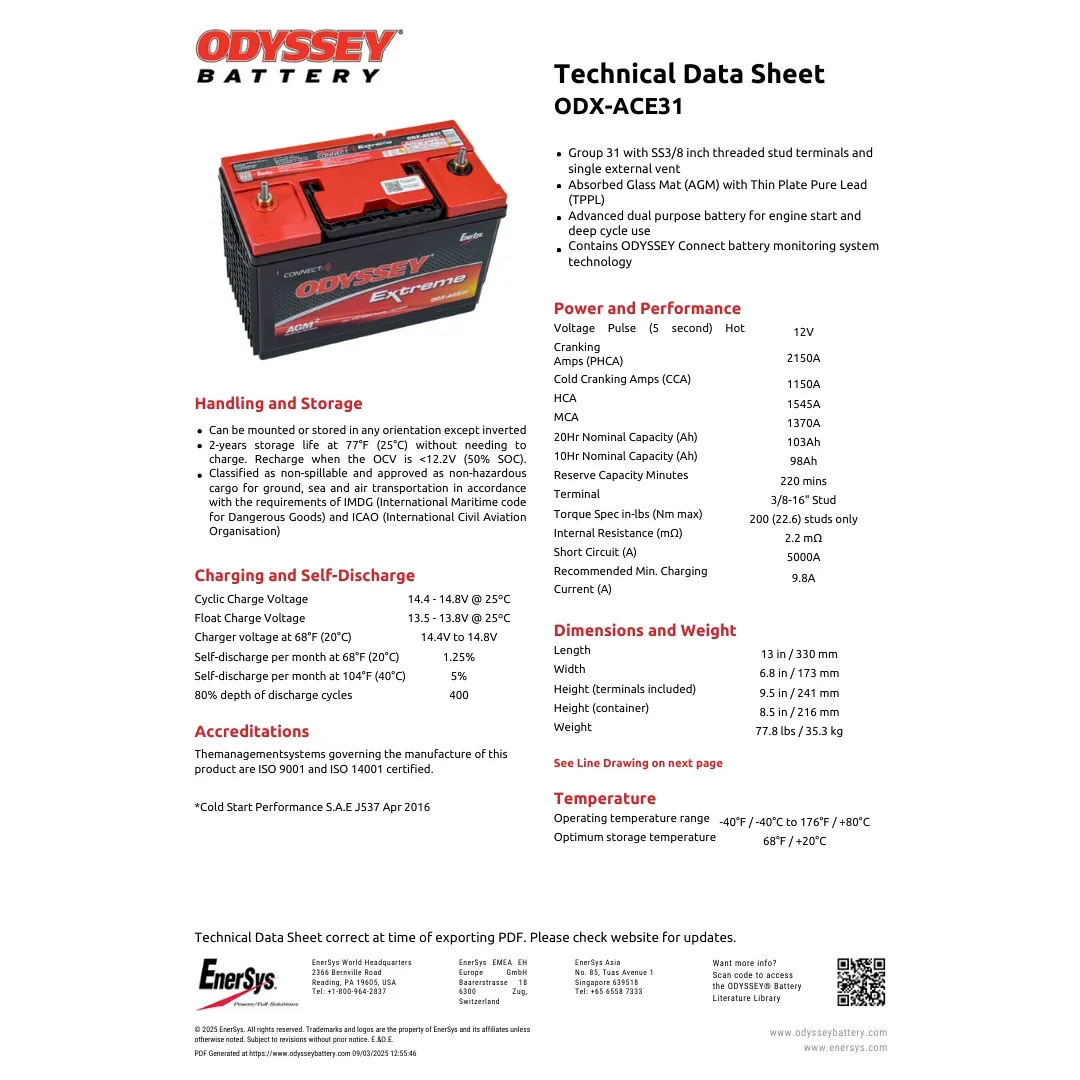

Datasheet
✔️ Datasheet
Quick Installation Guide
No quick installation guide available. Email support@novaasolaris.com for file request.
