Odyssey Battery ODX-AGM27M 12VDC 92Ah Extreme Series AGM Battery
SKU: ODX-AGM27M
- Capacity: 92Ah
- Product Type: Marine Dual-Purpose Battery
Shipping & Returns Policy
Orders are processed within 24-72 business hours. Freight items ship from the closest available warehouse; a Freight Terms & Conditions form is sent for review and signature before dispatch. Returns follow our Return Merchandise Authorization (RMA) policy.
Description

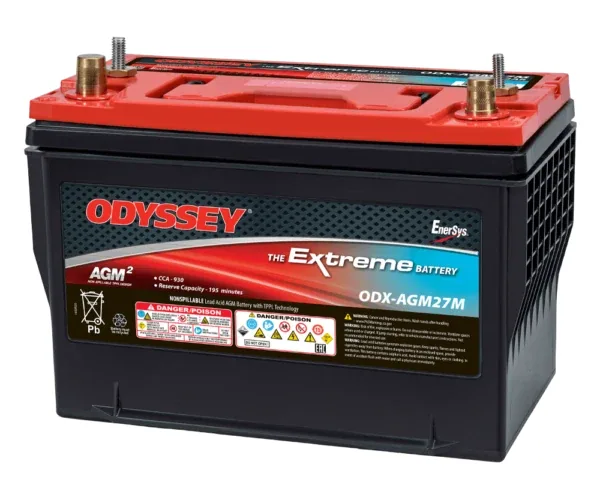

ODYSSEY Extreme Battery ODX-AGM27M (NSB-AGM27M)
Pure lead AGM technology delivers exceptional CCA ratings and reserve capacity cycling ability.
Quick starting every time.
Cycles over 900 times at 50% depth of discharge.
Faster recharge than conventional batteries.
Proudly made in the USA at our state-of-the-art battery plant.
OEM fit is ensured – built to exact BCI standards.
Housed in advanced plastics for durability performance and heat resistance.
Advanced AGM construction means no water levels to check or terminals to clean.
Approved as non-hazardous cargo for ground sea and air transport DOT 49CFR173.159(d), (i) and (ii).
Technical Specifications:
- Voltage: 12V
- Pulse (5 second) Hot Cranking Amps (PHCA): 1750A
- MHPCA: 1600A
- MPCA: 1325A
- Cold Cranking Amps (CCA): 930A
- HCA: 1290A
- MCA: 1080A
- 20Hr Nominal Capacity (Ah): 92AH
- 10Hr Nominal Capacity (Ah): 88AH
- Reserve Capacity Minutes: 195 mins
- Terminal: SAE and 3/8-16” Stud (Pos.), 5/16-18” Stud (Neg.)
- Torque Spec in-lbs (Nm max): 200 (22.6)/100 (11.3) studs only
- Internal Resistance (mΩ): 2.6mΩ
- Short Circuit (A): 5000A
- Recommended Min. Charging Current (A):8.8A
- Operating Temperature Range: -40°F / -40°C to 176°F / +80°C
- Optimum Storage Temperature: 68°F / +20°C
- UPC: 635241140835
- Length: 12.50 in
- Width: 6.80 in
- Height (terminals included): 8.80 in
- Height (container): 8.20 in
- Weight: 67.90 lbs
Resources

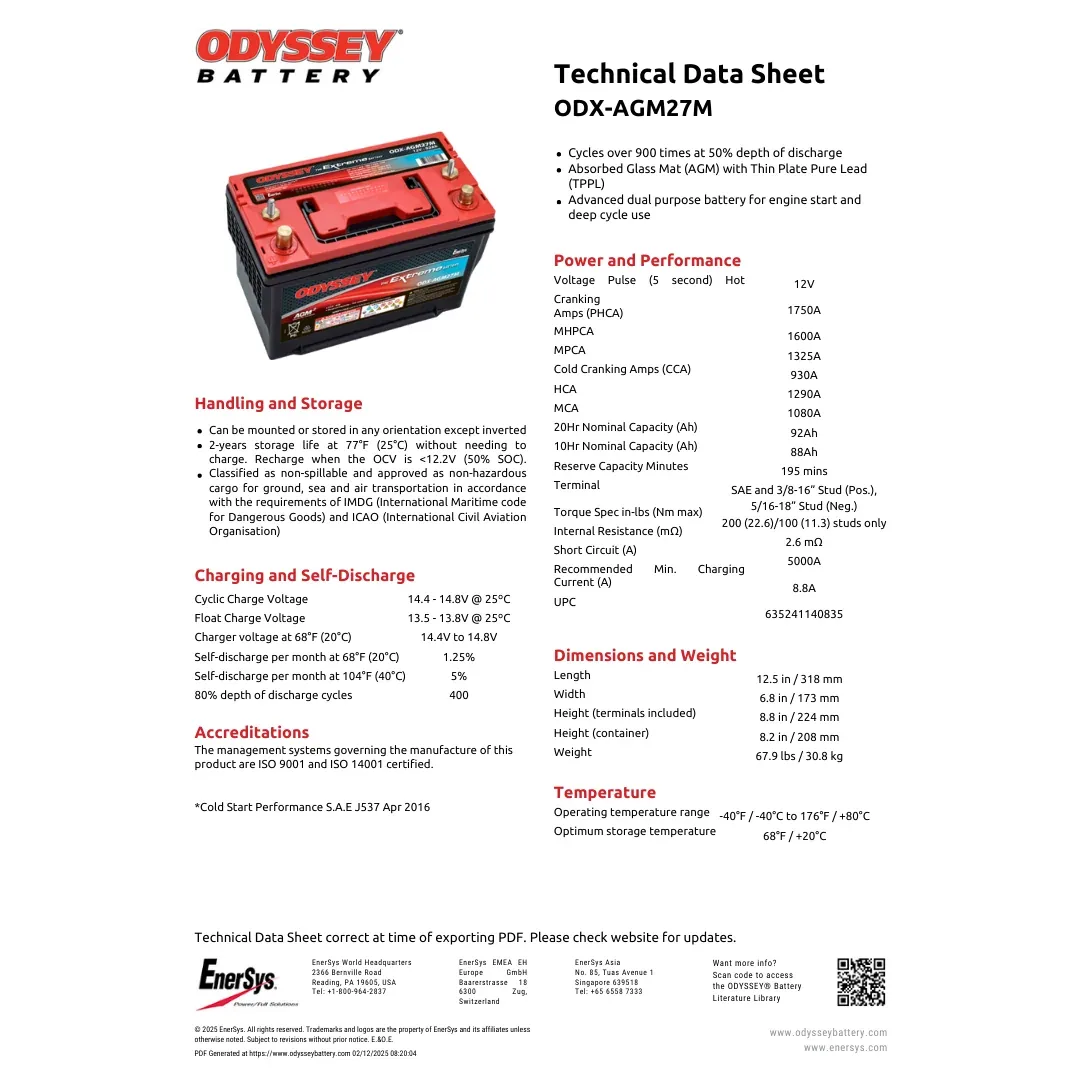

Datasheet
Quick Installation Guide
No installation guide available. Email support@novaasolaris.com for file request.
