Odyssey Battery ODX-AGM34M 12VDC 68Ah Extreme Series AGM Battery
SKU: ODX-AGM34M
- Capacity: 68Ah
- Product Type: Marine Dual-Purpose Battery
Shipping & Returns Policy
Orders are processed within 24-72 business hours. Freight items ship from the closest available warehouse; a Freight Terms & Conditions form is sent for review and signature before dispatch. Returns follow our Return Merchandise Authorization (RMA) policy.
Description

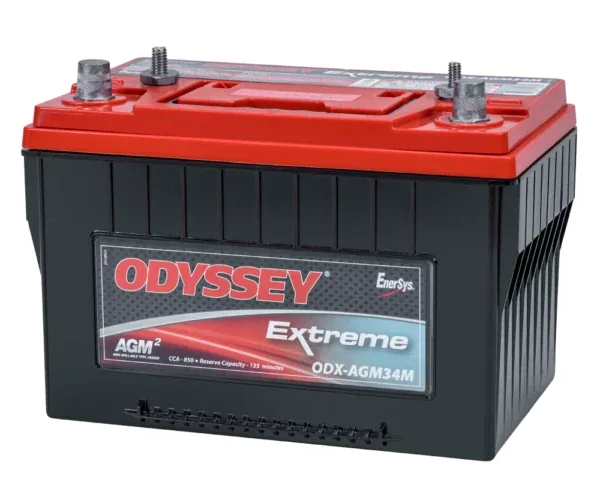

ODYSSEY Extreme Battery ODX-AGM34M (34M-PC1500 or NSB-AGM34M)
Like an athlete that is both a sprinter and a long distance runner, the ODYSSEY Marine Dual Purpose battery has both massive starting power and amazing deep cycling capability – up to 400 cycles at 80% depth of discharge. With twice the overall power and three times the life of conventional marine batteries, the ODYSSEY battery is ideal for trolling, starting, and for powering the many on-board electronic accessories common in today’s boats and recreational vehicles.
Group 34 with tin-plated SAE posts, 3/8 inch positive and 5/16 inch negative thread SS stud terminals.
This battery model comes with the Separate Spacer for Group 34 Batteries.
Technical Specifications:
- Voltage: 12V
- Pulse (5 second) Hot Cranking Amps (PHCA): 1500A
- MHPCA: 1400A
- MPCA: 1275A
- Cold Cranking Amps (CCA): 850A
- HCA: 1250A
- MCA: 1050A
- 20Hr Nominal Capacity (Ah):68AH
- 10Hr Nominal Capacity (Ah): 62AH
- Reserve Capacity Minutes: 135 mins
- Terminal: SAE and 3/8-16” Stud (Pos.), 5/16-18” Stud (Neg.)
- Torque Spec in-lbs (Nm max): 200 (22.6)/100 (11.3) studs only
- Internal Resistance (mΩ): 2.5mΩ
- Short Circuit (A):3100A
- Recommended Min. Charging Current (A): 6.2A
- Operating Temperature Range: -40°F / -40°C to 176°F / +80°C
- Optimum Storage Temperature: 68°F / +20°C
- UPC: 635241140842
- Length: 10.90 in
- Width: 6.80 in
- Height (terminals included): 7.80 in
- Height (container): 7.20 in
- Weight: 50.90 lbs
Resources

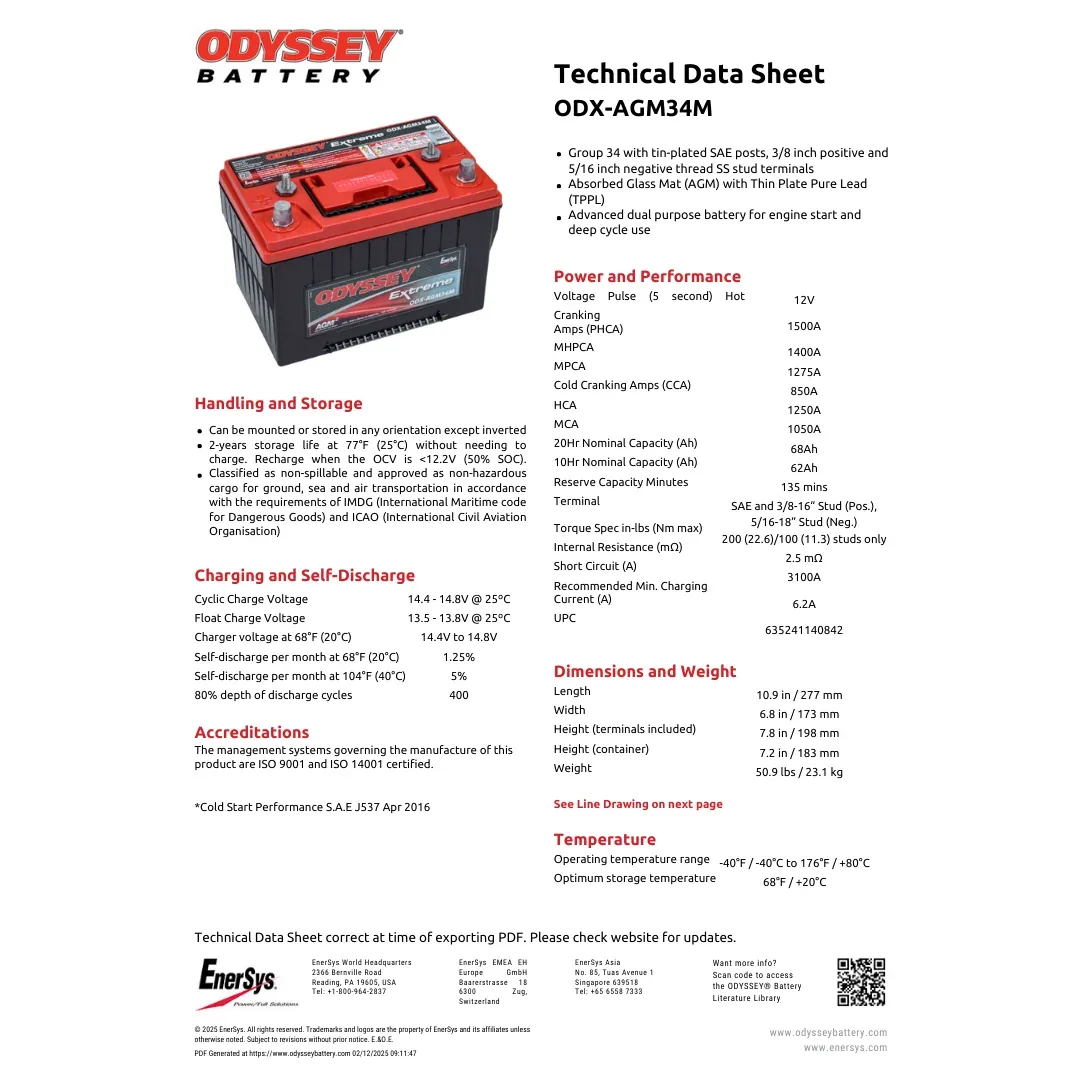

Datasheet
