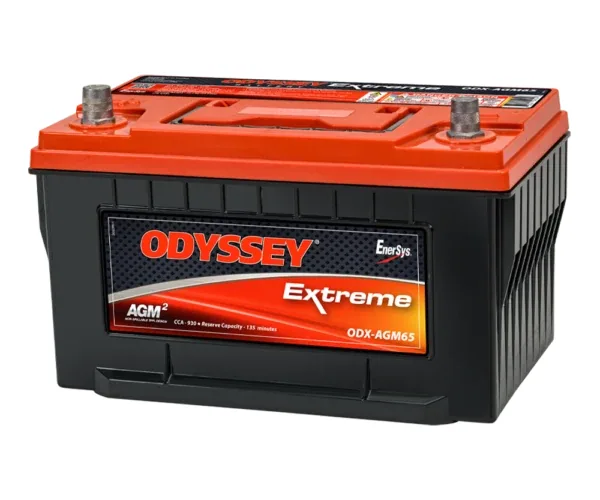

Odyssey Battery ODX-AGM65 12VDC 74Ah Specialty Battery
SKU: ODX-AGM65
- Capacity: 74Ah
- Product Type: Dual-Purpose Battery
Shipping & Returns Policy
Orders are processed within 24-72 business hours. Freight items ship from the closest available warehouse; a Freight Terms & Conditions form is sent for review and signature before dispatch. Returns follow our Return Merchandise Authorization (RMA) policy.
Description
Odyssey Battery ODX-AGM65 12VDC 74Ah Specialty Battery
Whether for everyday or emergency use, today’s vehicles are loaded with more electronics than would have been imaginable just a few years ago. ODYSSEY batteries have been designed to keep up with the changes. Because their plates are made of pure virgin lead (unlike the lead alloy in most batteries), we can pack in more plates. And more plates mean more plate surface area, and much more power – twice the overall power and three times the life of conventional batteries – up to 400 cycles at 80% depth of discharge.
Technical Specifications:
- Length: 11.80 in
- Width: 7.20 in
- Height (terminals included): 7.50 in
- Height (container): 6.80 in
- Weight: 54.00 lbs
- Voltage: 12V
- Pulse (5 second) Hot Cranking Amps (PHCA): 1750A
- Cold Cranking Amps (CCA): 950A
- HCA: 1350A
- MCA: 1070A
- 20Hr Nominal Capacity (Ah): 74Ah
- 10Hr Nominal Capacity (Ah): 65Ah
- Reserve Capacity Minutes: 145 mins
- Terminal: SAE
- Torque Spec in-lbs (Nm max): N/A
- Internal Resistance (mΩ): 2mΩ
- Short Circuit (A): 5000A
- Recommended Min. Charging Current (A): 6.5A
- Operating Temperature Range: -40°F / -40°C to 176°F / +80°C
- Optimum Storage Temperature: 68°F / +20°C
Resources

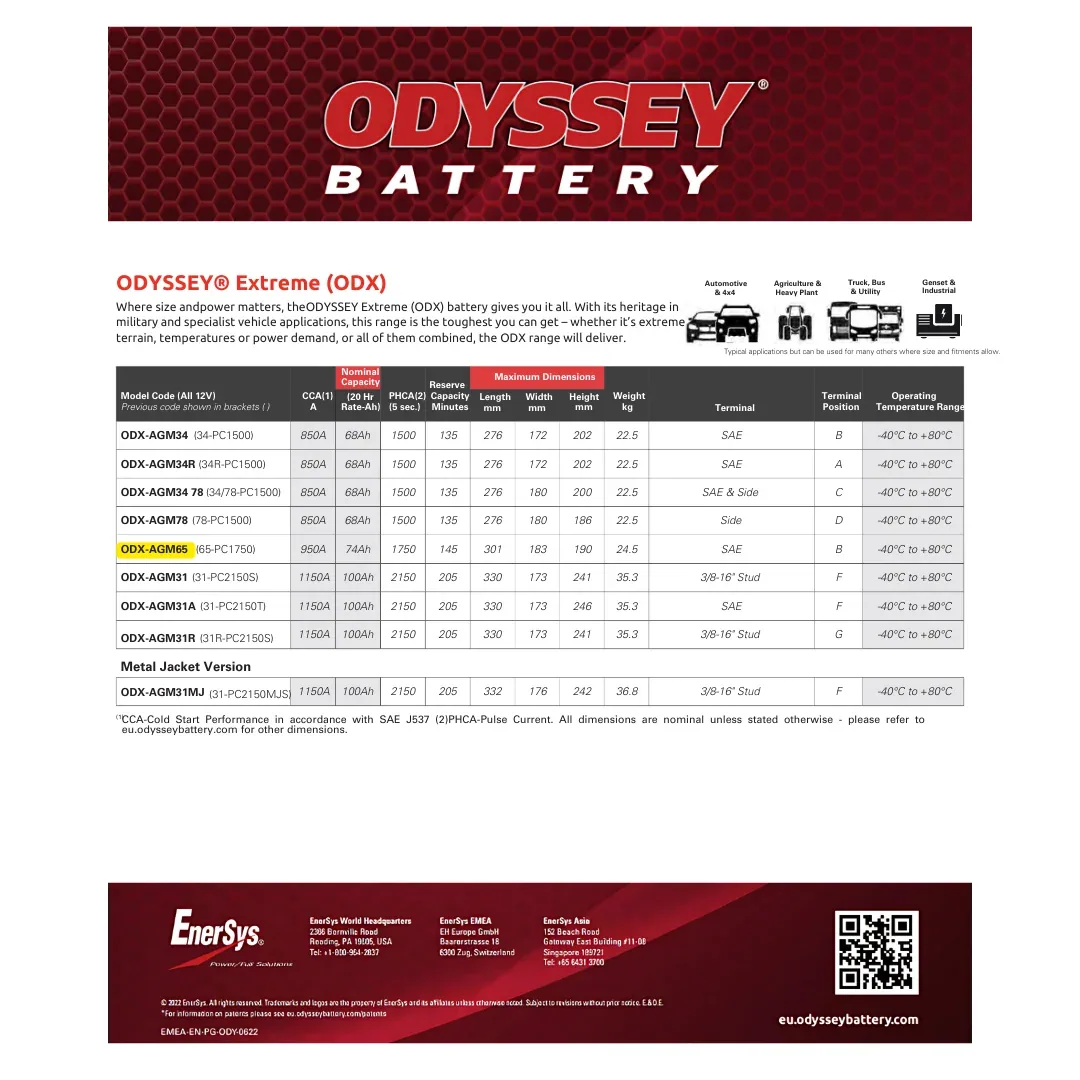

Datasheet
✔️ Datasheet
Quick Installation Guide
No quick installation guide available. Email support@novaasolaris.com for file request.
