Phono Solar PS550M8H-24-THB 550Watt Monocrystalline Silver Frame Solar Panel- FEOC Compliant
SKU: PS550M8H-24-THB
- Wattage: 550W
Shipping & Returns Policy
Orders are processed within 24-72 business hours. Freight items ship from the closest available warehouse; a Freight Terms & Conditions form is sent for review and signature before dispatch. Returns follow our Return Merchandise Authorization (RMA) policy.
Phono Solar TwinPlus Series PS550M8H-24-THB 50Watt 144 1/2 Cells Silver Frame Solar Panel
- Up to 25% additional power yield benefited from bifacial technology. Industry-leading cell processing technology and electrical design ensure solid PID resistance. Higher quality reliability with Zero Light Induced Degradation (LID).
Product Performance
Rated Power
Efficiency
Power Tolerance (Positive)
Temperature Coefficient
Resiliency
550W
21.29%
+ 3 %
Pmax 0.35 Voc -0.28
✔️ Snow
✔️ Wind
✔️ Hail
✔️ Fire
Front Static Load: 5400 Pa (for heavy snow)
Rear Static Load: 2400 Pa (for high winds)
Hail: Withstands hail up to 25mm at 80 km/h
Fire Rating: IEC 61730 Fire Class C
Power (measured in watts) and efficiency (how well panels convert sunlight to electricity) are some of the most common metrics used to compare solar panel products. While they are not the only means of comparison, they are important determinants in how much electricity you can produce with a solar panel system. Metrics like power tolerance and temperature coefficient are also important ways to analyze the potential performance of solar panels under the different conditions they will experience over their lifetime. Learn how panels from different manufacturers stack up against one another in our updated article about the best solar panels on the market.
Warranty Information
✔️ Product Warranty Term: 12 years
✔️ Output Decline: -0.55%
✔️ Output at End of Warranty Term: 84.8% after 25 years
✔️ Linear Performance Warranty: 25 years
Solar panels generally come with an output warranty covering the energy production of the panel, and a materials warranty protecting you against undue wear and tear on your equipment. Learn more about solar panel warranties.
Physical Characteristics

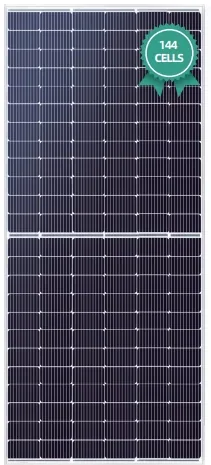

✔️ Cell Type: Monocrystalline (144 half-cells)
✔️ Panel Dimensions: 2278 mm x 1134 mm x 35 mm
✔️ Pallet Qty: 35
✔️ Connector Type: IP 68 Rated connectors
The physical characteristics of a solar panel have an impact on the product's performance. For example, metrics like efficiency and wattage are based on the type, size, and number of solar cells used in a panel.
Certifications
✔️ Certifications Received: IEC 61215,IEC 61730,UL 61730 ,ISO 9001,SO 14001:2015,ISO 45001
Organizations like the International Electrotechnical Commission (IEC) and Underwriters Laboratories (UL) create national and international standards for photovoltaic solar panels to ensure any products on the market meet certain specifications for safety and reliability reasons.
