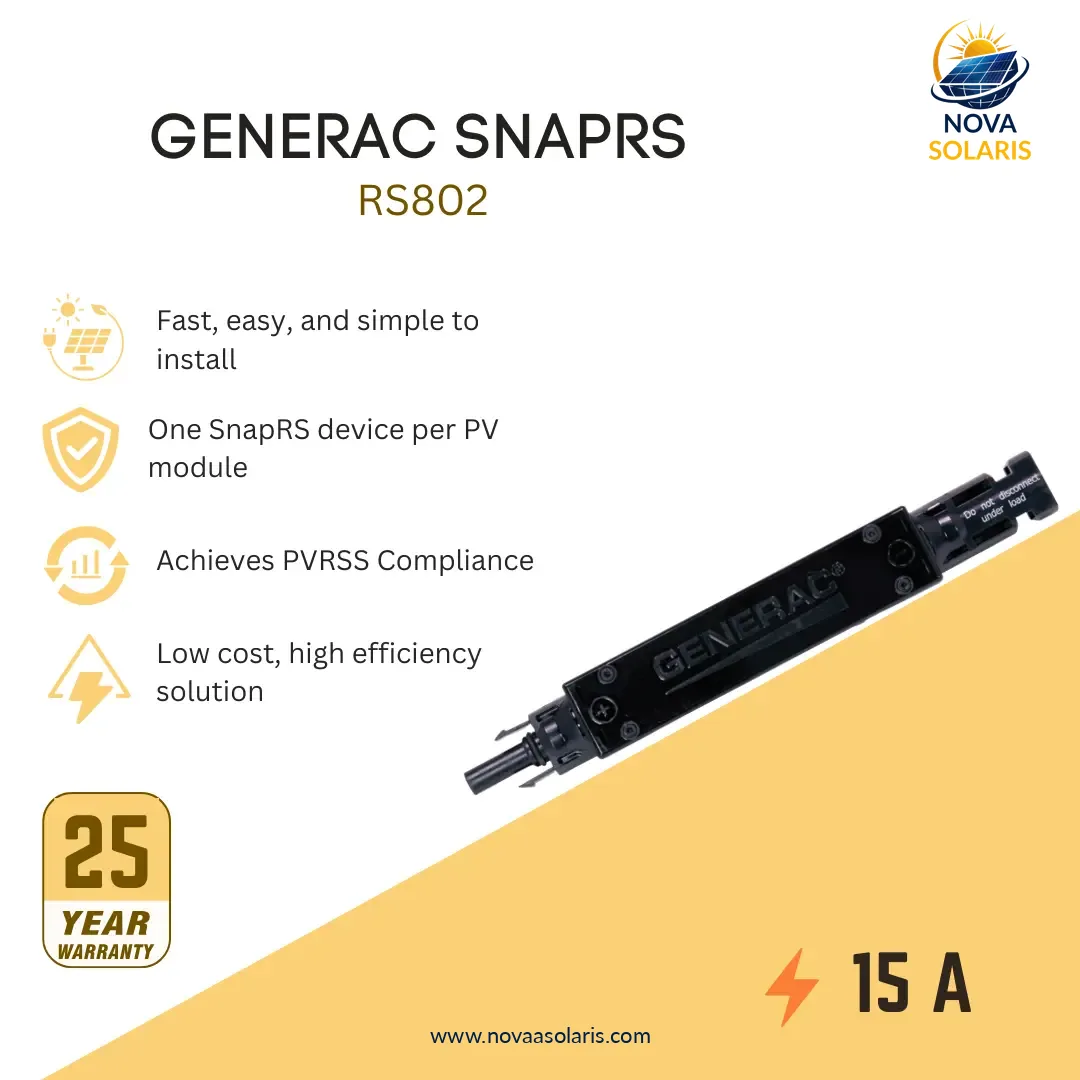

Generac RS802 SnapRS Gen2 RS802 Inline PV Disconnect for NEC 2017
Generac

Generac RS802 SnapRS Gen2 RS802 Inline PV Disconnect for NEC 2017

$43.61 USD

SKU: RS802

Quantity
1
Shipping & Returns Policy

Orders are processed within 24-72 business hours. Freight items ship from the closest available warehouse; a Freight Terms & Conditions form is sent for review and signature before dispatch. Returns follow our Return Merchandise Authorization (RMA) policy.

Product description

Generac

Description

Generac RS802 SnapRS Gen2 RS802 Inline PV Disconnect for NEC 2017

Generac SnapRS are a simple way to satisfy rapid shutdown compliance for solar + storage systems. Generac SnapRS are2017/2020 NEC 690.12 compliant, don't require any extra hardware to mount, and need no pairing or fussy digital communications.

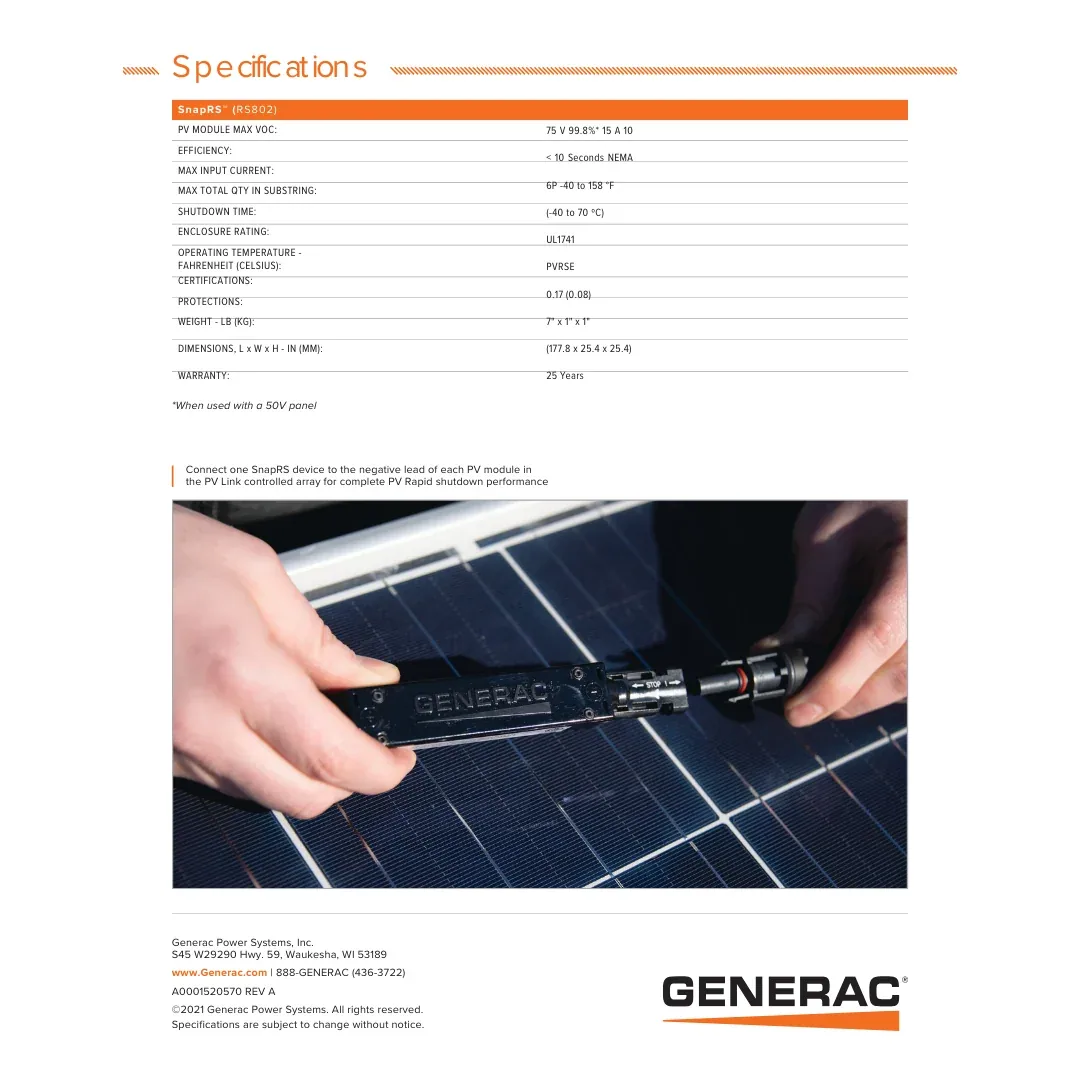

Technical Specifications:

  • PV MODULE MAX VOC: 75 V
  • EFFICIENCY: 99.8%*
  • MAX INPUT CURRENT: 15 A
  • MAX TOTAL QTY IN SUBSTRING: 10
  • SHUTDOWN TIME: < 10 Seconds
  • ENCLOSURE RATING: NEMA 6P
  • OPERATING TEMPERATURE - FAHRENHEIT (CELSIUS: -40 to 158 °F (-40 to 70 ºC)
  • CERTIFICATIONS: UL1741
  • PROTECTIONS: PVRSE
  • WEIGHT - LB (KG): 0.17 (0.08)
  • DIMENSIONS, L x W x H - IN (MM): 7" x 1" x 1" / (177.8 x 25.4 x 25.4)
  • WARRANTY: 25 Years
Downloads

Datasheet

✔️ Datasheet

Quick Installation Guide

No quick installation guide available. Email support@novaasolaris.com for file request.

Warranty

25 Years Warranty
