Rolls Surrette

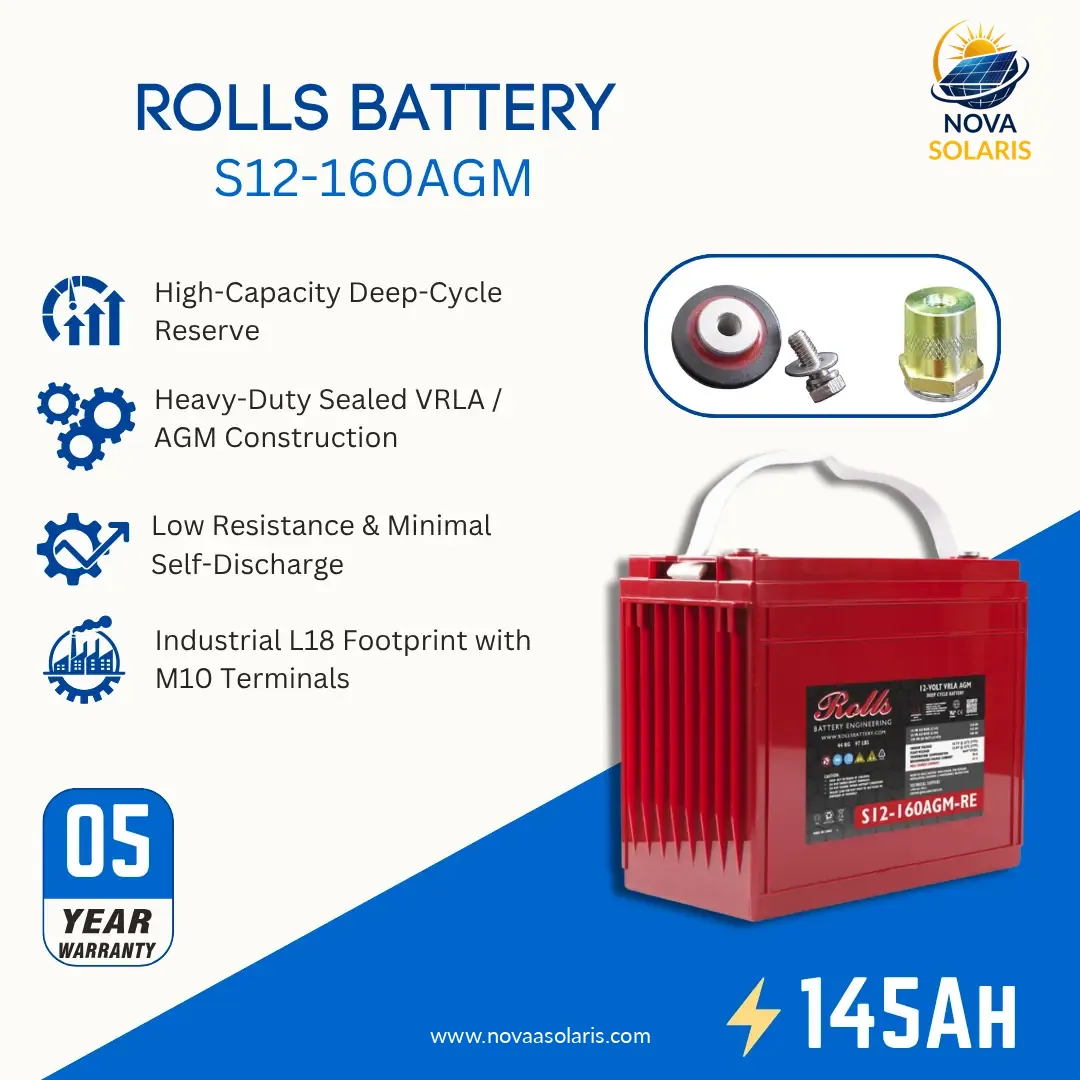

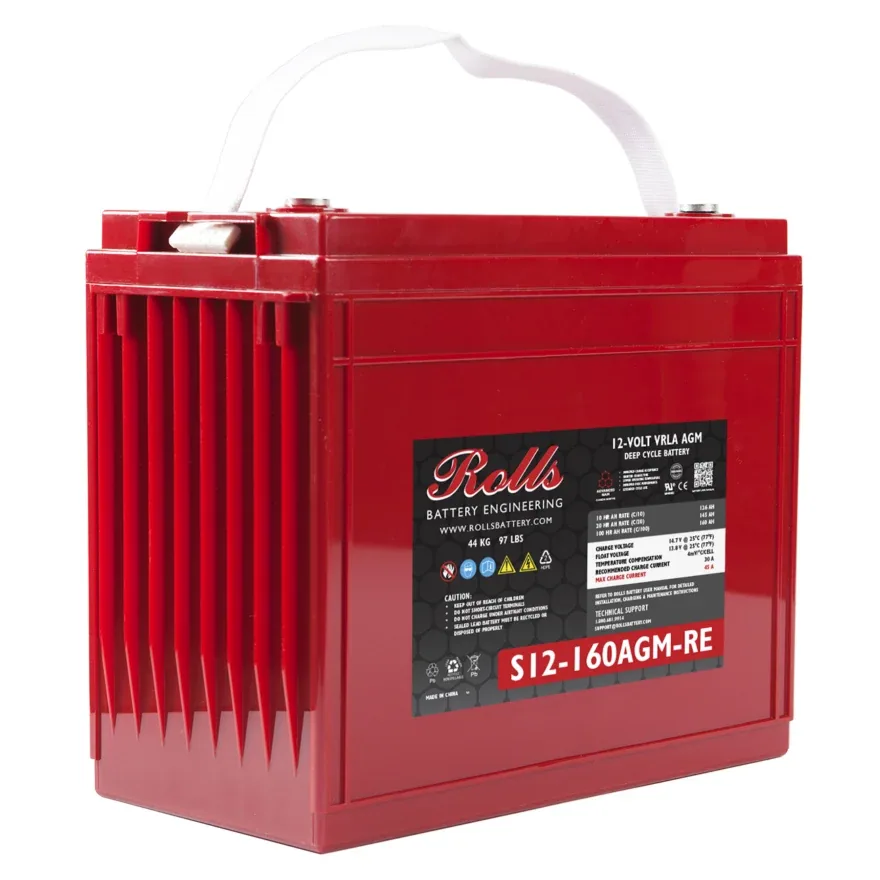

Rolls Surrette S12-160AGM 12VDC 145Ah AGM Deep Cycle Battery
$632.09 USD
SKU: S12-160AGM
- Capacity: 145Ah
- Product Type: AGM Battery
Quantity
1
Shipping & Returns Policy
Orders are processed within 24-72 business hours. Freight items ship from the closest available warehouse; a Freight Terms & Conditions form is sent for review and signature before dispatch. Returns follow our Return Merchandise Authorization (RMA) policy.
Description
Rolls Surrette Battery S12-160AGM-RE
Designed in compliance with applicable BCI,DIN,BS and IEC standards. Tested in compliance to BCI and IEC standards.
Technical Specifications:
- Weight: 44 kg / 97 lbs
- Length: 341 mm / 13.43"
- Width: 172 mm / 6.77"
- Height Incl. Term.: 309 mm / 12.17"
- Container: ABS
- Cover: ABS
- Handles: Nylon Strap
- Series: AGM-S
- Volts: 12
- Design: SPEC
- Cells: 6
- Terminal Type: F12(M8) and TP08 Adapter [+21mm]
- Included Hardware: M8 stainless bolts & washers & TP08 adapter
- Size & Thread: M8
- Charge Voltage Range: 14.7V @ 25°C (77°F)
- Float Voltage Range: 13.8V @ 25°C (77°F)
- Recommended Charge Current:30 A
- Maximum Charge Current: 40 A
- Self-Discharge Rate: Less than 2% per month at 25°C (77°F)
- Internal Resistance: 3.6 mΩ
- Cold Crank Amps (CCA) 0°F / -18°C: 795
- Marine Crank Amps (MCA) 32°F / 0°C: 950
- Reserve Capacity (RC @ 25A): 260 Minutes
- Reserve Capacity (RC @ 75A): 75 Minutes
- Capacity AMP @ 20 Hour Rate: 145 Ah
Resources

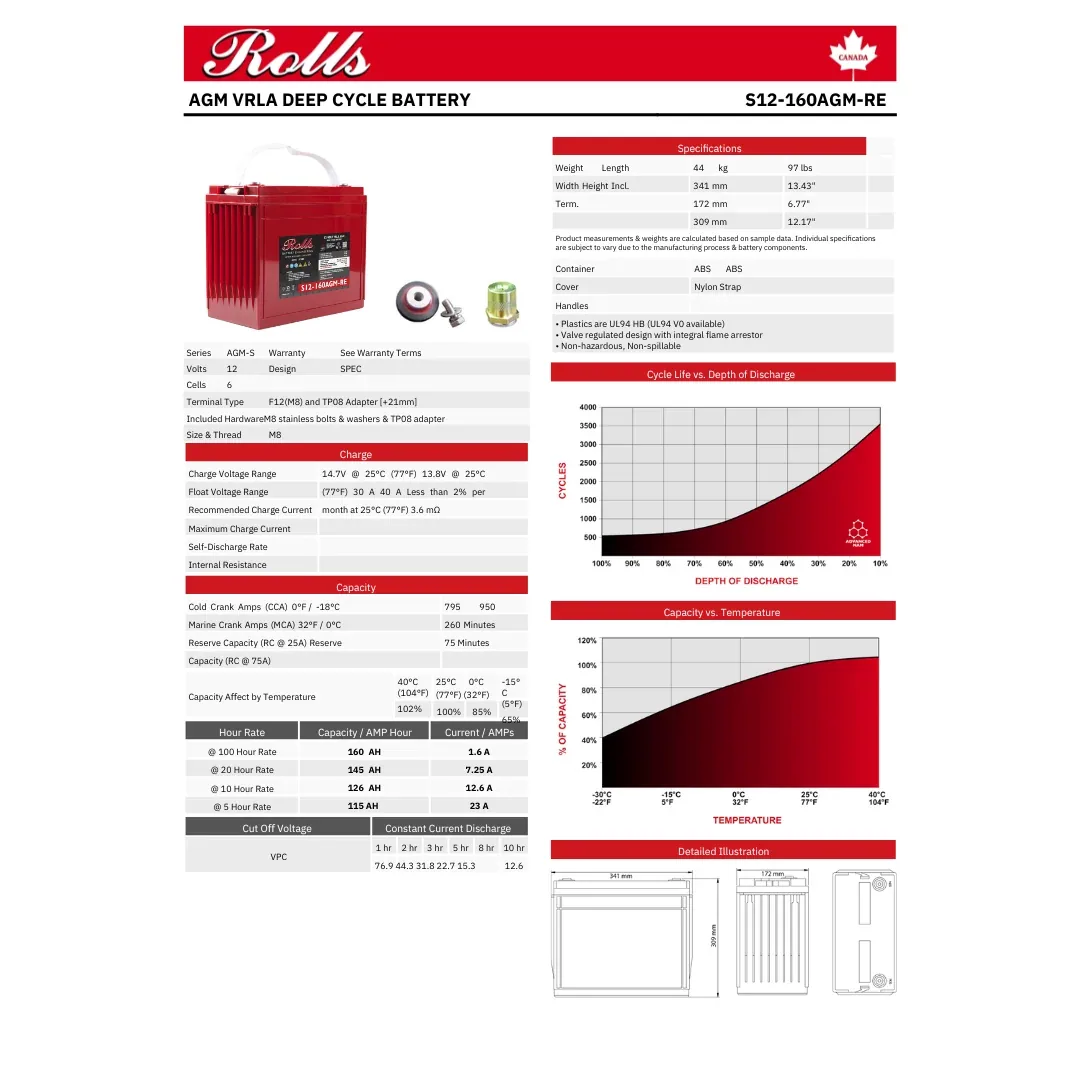

Datasheet
Quick Installation Guide
No installation guide available. Email support@novaasolaris.com for file request.
Warranty
5 Years Warranty
