Rolls Surrette

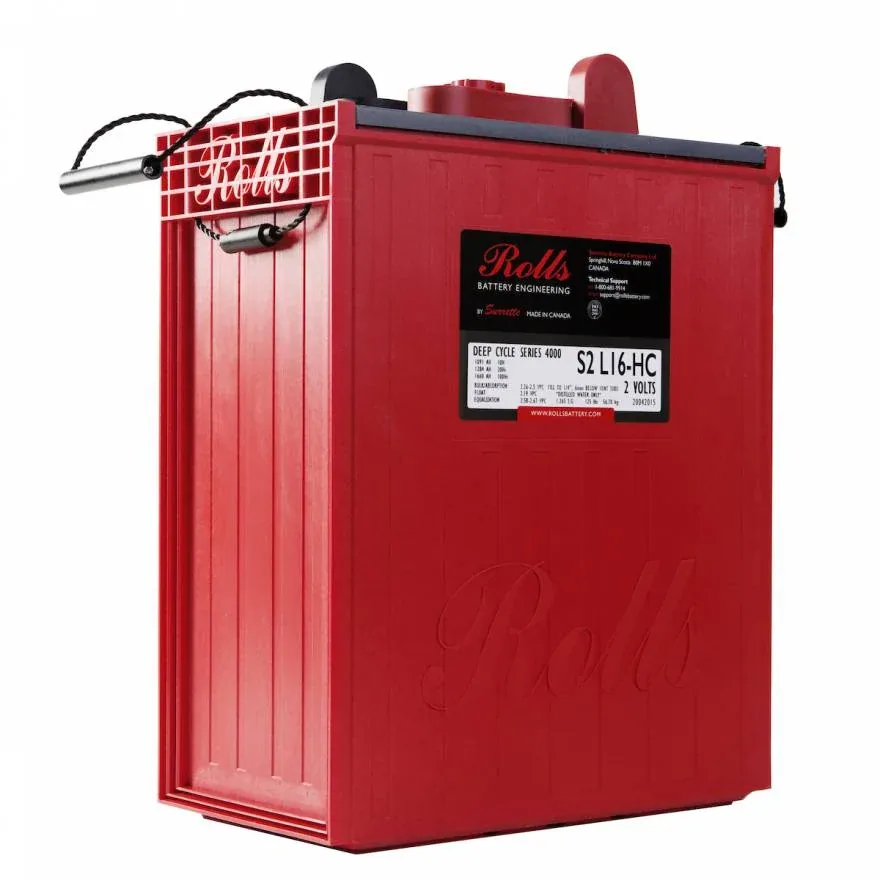

Rolls Surrette S2-L16-HC 2VDC 1335Ah Flooded Deep Cycle Battery
$596.26 USD
SKU: S2-L16-HC
- Capacity: 1335Ah
- Product Type: Motive Power
Quantity
1
Shipping & Returns Policy
Orders are processed within 24-72 business hours. Freight items ship from the closest available warehouse; a Freight Terms & Conditions form is sent for review and signature before dispatch. Returns follow our Return Merchandise Authorization (RMA) policy.
Description
Rolls Surrette Battery S2 L16
Designed in compliance with applicable BCI, DIN, BS & IEC standards. Tested in BCI and IEC standards.
Technical Specifications:
- Weight: 57.5 kg/127 lbs
- Length: 318 mm/12.5"
- Width: 181 mm/7.13"
- Height Incl. Term.: 432 mm/17"
- Electrolyte Reserve: 57 mm/2.25"
- Container: High Density Polypropylene
- Cover: High Density Polypropylene
- Handles: Rope / Plastic Handle
- Series: 4000
- Volts: 2
- Design: L16
- Cells: 1
- Plates/Cell : 49
- Terminal Type: LT
- Included Hardware: S/S Hex Cap Screw, Nut, Lock & Flat Washer
- Size & Thread: 5/16"-18
- Cables: Optional 19" 4/0 interconnect cable
- Charge Voltage Range: 2.45-2.5 V/cell @ 25°C (77°F)
- Float Voltage Range: 2.25 V/cell @ 25°C (77°F)
- Recommended Charge Current: 155 A
- Maximum Charge Current: 255 A
- Self-Discharge Rate: 5%-10% per month at 25°C (77°F)
- Cold Crank Amps (CCA) 0°F / -18°C: 3119
- Marine Crank Amps (MCA) 32°F / 0°C: 3898
- Reserve Capacity (RC @ 25A): 2584 Minutes
- Reserve Capacity (RC @ 75A): 679 Minutes
- Capacity AMP @ 20 Hour Rate: 1335 Ah
Resources

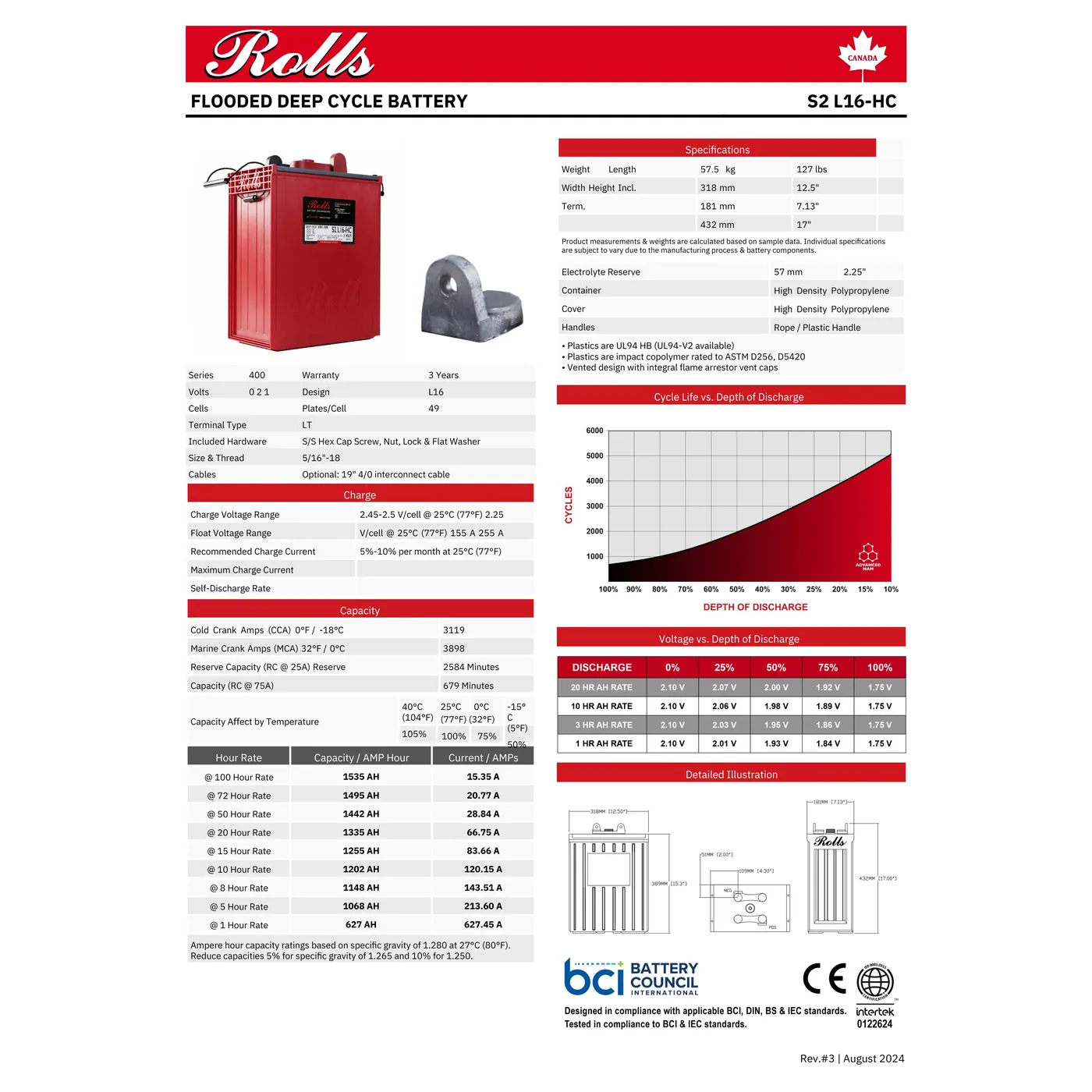

Datasheet
Quick Installation Guide
No installation guide available. Email support@novaasolaris.com for file request.
Warranty
3 Years Warranty.
