Rolls Surrette

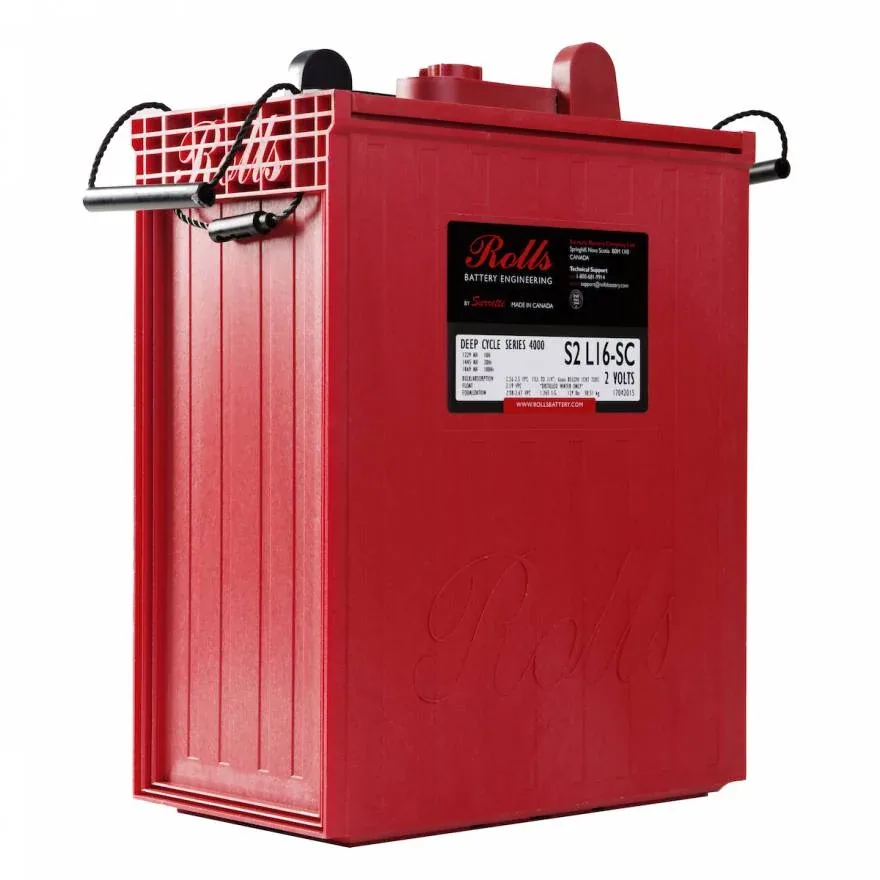

Rolls Surrette S2-L16-SC 2VDC 1503Ah Flooded Deep Cycle Battery
$679.74 USD
SKU: S2-L16-SC
- Capacity: 1503Ah
- Product Type: Motive Power
Quantity
1
Shipping & Returns Policy
Orders are processed within 24-72 business hours. Freight items ship from the closest available warehouse; a Freight Terms & Conditions form is sent for review and signature before dispatch. Returns follow our Return Merchandise Authorization (RMA) policy.
Description
Rolls Surrette Battery S2 L16-SC
Designed in compliance with applicable BCI, DIN, BS & IEC standards. Tested in BCI and IEC standards.
Technical Specifications:
- Weight: 59 kg/130 lbs
- Length: 318 mm/12.5"
- Width: 181 mm/7.13"
- Height Incl. Term.: 432 mm/17"
- Electrolyte Reserve: 57 mm/2.25"
- Container: High Density Polypropylene
- Cover: High Density Polypropylene
- Handles: Rope / Plastic Handle
- Series: 4000
- Volts: 2
- Design: L16
- Cells: 1
- Plates/Cell : 53
- Terminal Type: LT
- Included Hardware: S/S Hex Cap Screw, Nut, Lock & Flat Washer
- Size & Thread: 5/16"-18
- Cables: Optional 19" 4/0 interconnect cable
- Charge Voltage Range: 2.45-2.5 V/cell @ 25°C (77°F)
- Float Voltage Range: 2.25 V/cell @ 25°C (77°F)
- Recommended Charge Current: 175 A
- Maximum Charge Current: 290 A
- Self-Discharge Rate: 5%-10% per month at 25°C (77°F)
- Cold Crank Amps (CCA) 0°F / -18°C: 3378
- Marine Crank Amps (MCA) 32°F / 0°C: 4223
- Reserve Capacity (RC @ 25A): 2909 Minutes
- Reserve Capacity (RC @ 75A): 764 Minutes
- Capacity AMP @ 20 Hour Rate: 1503 Ah
Resources

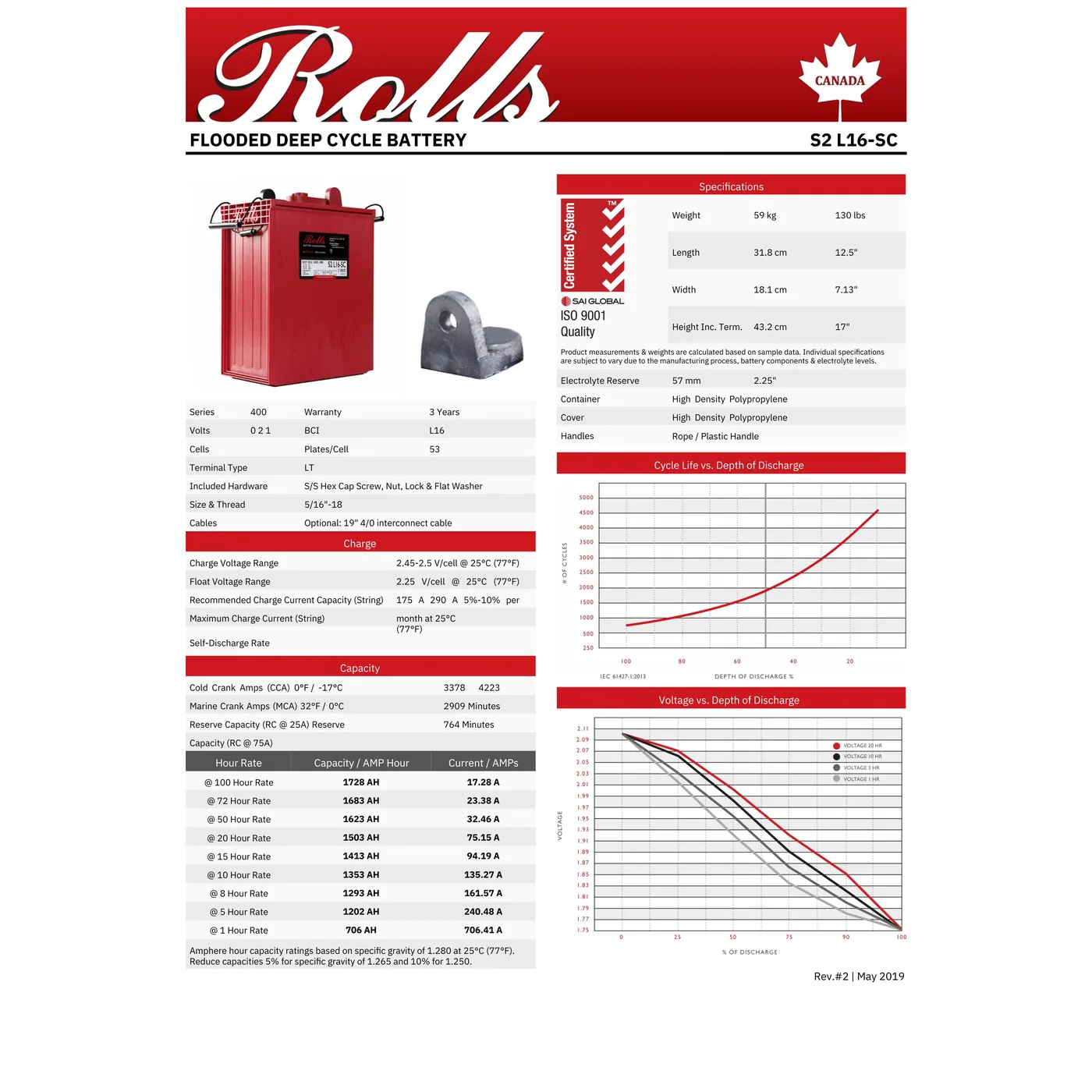

Datasheet
Quick Installation Guide
No installation guide available. Email support@novaasolaris.com for file request.
Warranty
3 Years Warranty.
