SolarEdge S500 500W/ 60V Power Optimizer
SolarEdge

SolarEdge S500 500W/ 60V Power Optimizer

$127.74 USD

SKU: S500

  • Wattage: 500W
  • Product Type: DC Power Optimizer (Residential)
Quantity
1
Shipping & Returns Policy

Orders are processed within 24-72 business hours. Freight items ship from the closest available warehouse; a Freight Terms & Conditions form is sent for review and signature before dispatch. Returns follow our Return Merchandise Authorization (RMA) policy.

Product description

Description

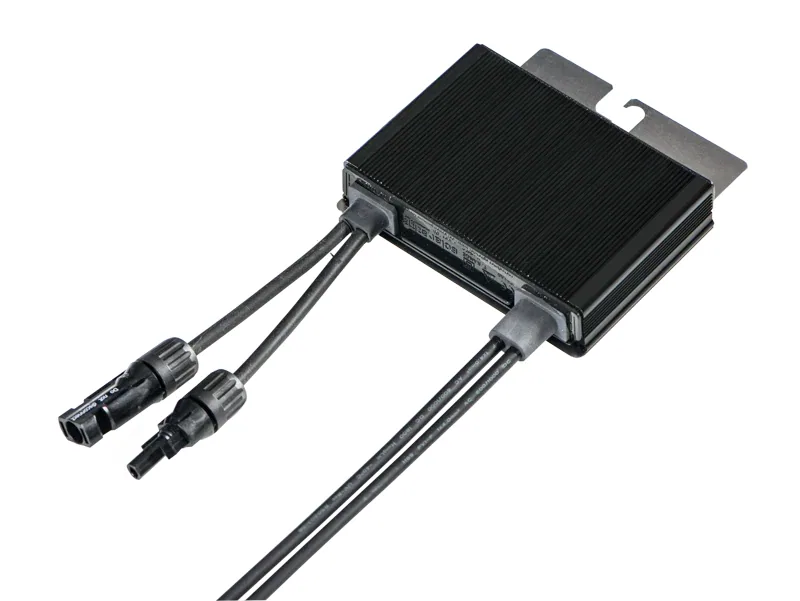

SolarEdge S500 Power Optimizer (500W / 60V)

Boost your solar system’s efficiency and safety with the SolarEdge S500. This compact device attaches to each solar panel, turning it into a "smart module" that produces the maximum amount of energy possible, even if other panels are shaded or dirty.

  • Maximum Energy Gain: Individual panel tracking ensures that shade on one panel doesn't slow down the rest of your system.
  • Advanced Safety: Features Sense Connect technology, which monitors for connector overheating to prevent electrical issues before they start.
  • Automatic Protection: Includes SafeDC™ to automatically drop high voltage to a safe level (1V) whenever the inverter is turned off.
  • Real-Time Tracking: View the performance of every single panel through the mySolarEdge app

SolarEdge S500 Spec Sheet & Performance Data

For engineers and designers requiring the full SolarEdge optimizer spec sheet, here are the core electrical and mechanical metrics:

  • Power Output: 500 Watts
  • Manufacturer Warranty: 25 Years
  • Shipping Weight: 1.75 lb
  • Shipping Dimensions: 6 x 7 x 2 in
  • Case Qty: 20
  • Pallet Qty: 840
  • Rated Input DC Power(1): 500W
  • Absolute Maximum Input Voltage (Voc): 60Vdc
  • MPPT Operating Range: 8 – 60VdcVdc
  • Maximum Short Circuit Current (Isc) of Connected PV Module: 15 Adc
  • Maximum Efficiency: 99.5%
  • Weighted Efficiency: 98.6%
  • Maximum Output Current: 15 Adc
  • liMaximum Output Voltage: 60 Vdc
  • Dimensions (W x L x H) : 129 x 155 x 30 mm
  • Weight: 1.75lbs
Downloads

Datasheet

✔️ Datasheet

Quick Installation Guide

No installation guide available. Email support@novaasolaris.com for file request.

Warranty

25 Years Warranty
