SolarEdge S500B 500W/ 125V Power Optimizer
SKU: S500B
- Wattage: 500W
- Product Type: DC Power Optimizer (Commercial)
Shipping & Returns Policy
Orders are processed within 24-72 business hours. Freight items ship from the closest available warehouse; a Freight Terms & Conditions form is sent for review and signature before dispatch. Returns follow our Return Merchandise Authorization (RMA) policy.
Description

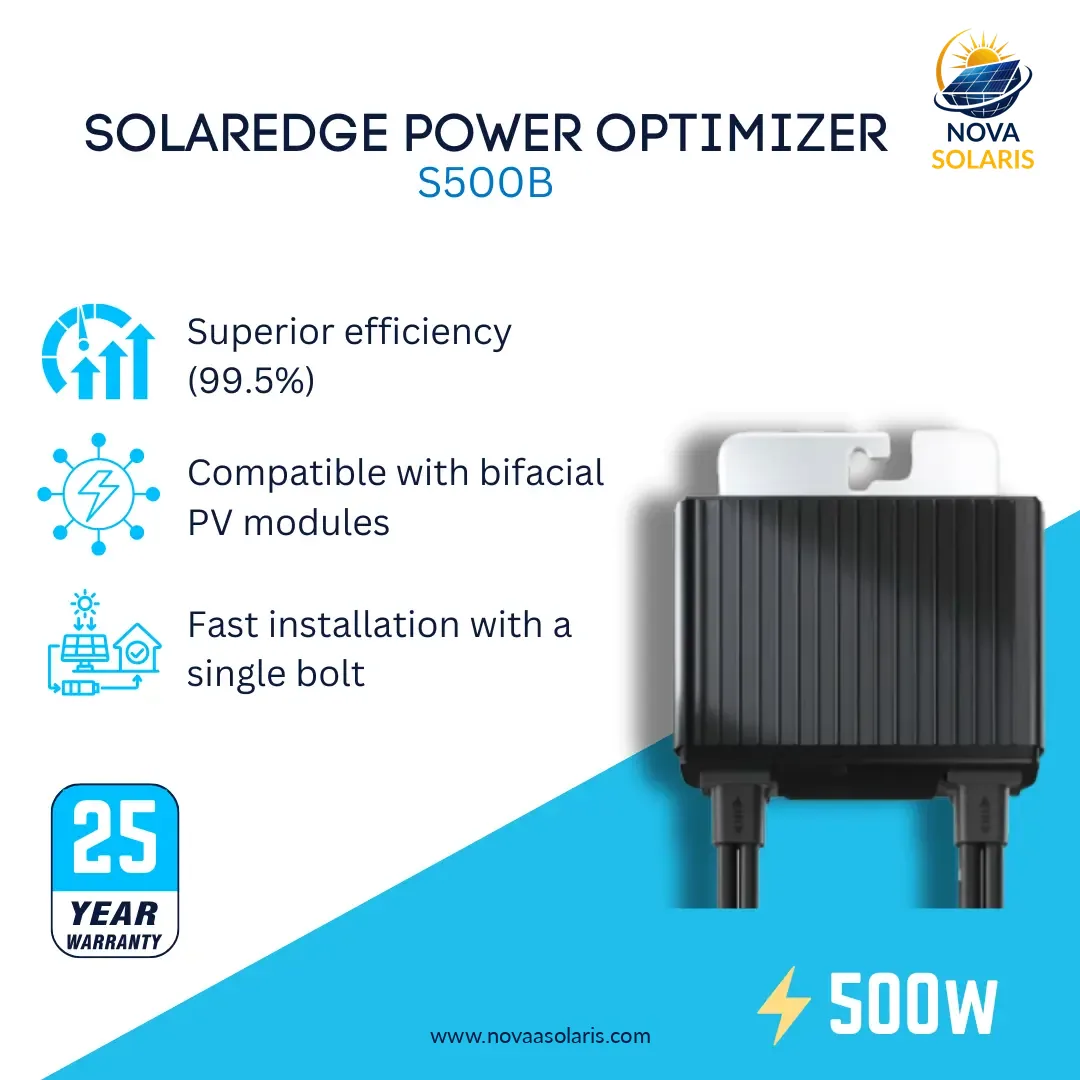

SolarEdge Power Optimizer 500W/125V - SE-S500B
Specifically designed to work with SolarEdge residential inverters
Detects abnormal PV connector behavior, preventing potential safety issues
Module-level voltage shutdown for installer and firefighter safety
Superior efficiency (99.5%)
Mitigates all types of module mismatch loss, from manufacturing tolerance to partial shading
Faster installations with simplified cable management and easy assembly using a single bolt
Flexible system design for maximum space utilization
Compatible with bifacial PV modules
Meets NEC requirements for arc fault protection (AFCI) and Photovoltaic Rapid Shutdown System (PVRSS)
Technical Specifications
- Rated Input DC Power(1): 500W
- Absolute Maximum Input Voltage (Voc) : 125Vdc
- Dimensions: 5.4 x 6.4 x 2.3 Inches
- MPPT Operating Range: 12.5 – 105 Vdc
- Maximum Allowed System Voltage: 12.5 – 105 Vdc
- Maximum Short Circuit Current (Isc) of Connected PV Module: 15 Adc
- Maximum Efficiency : 99.5%
- Weighted Efficiency: 98.6%
- Maximum Output Current: 15 Adc
- Maximum Output Voltage: 80 Vdc
- Dimensions (W x L x H): 129 x 165 x 45 mm
- Weight: 1.74Lbs
Downloads

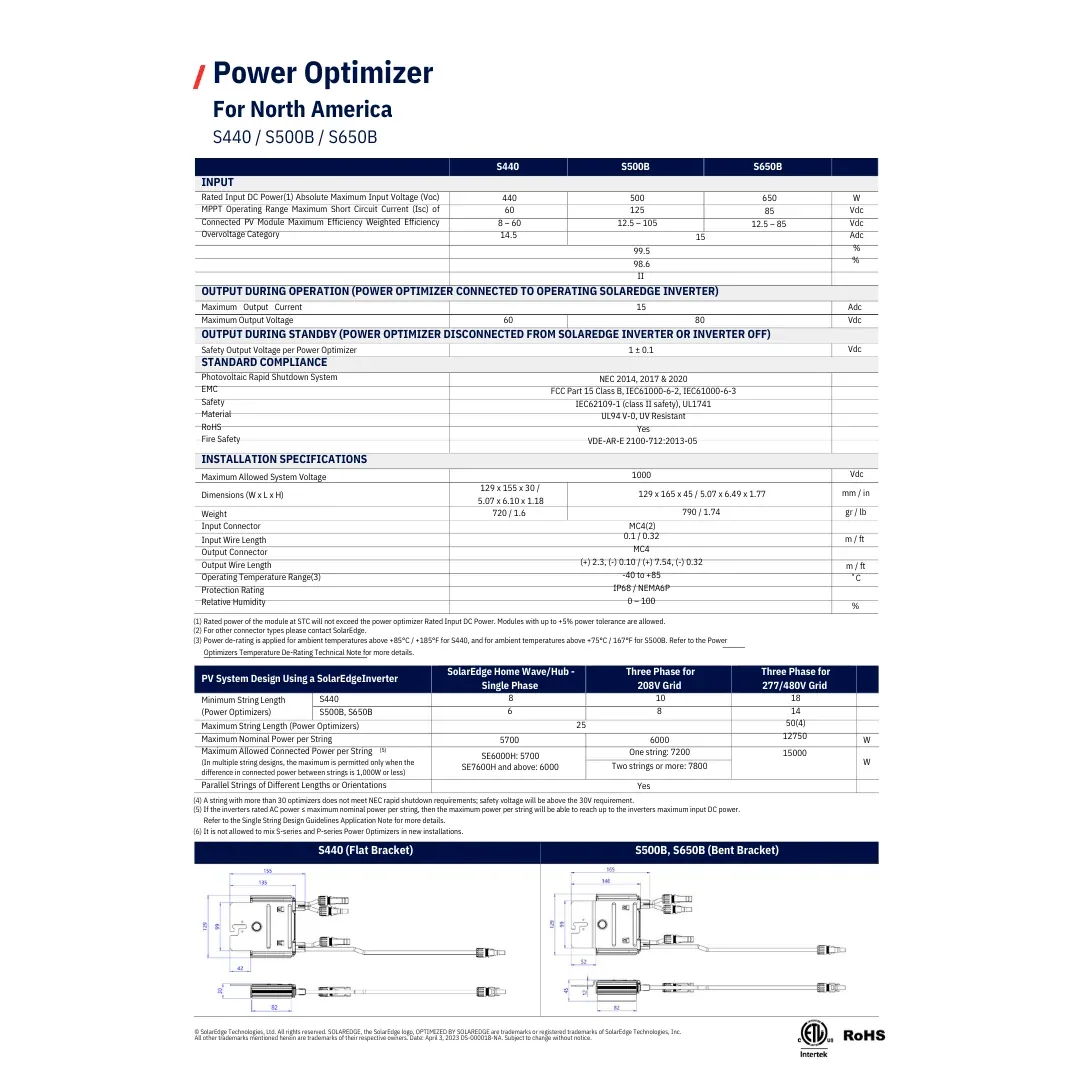

Datasheet
