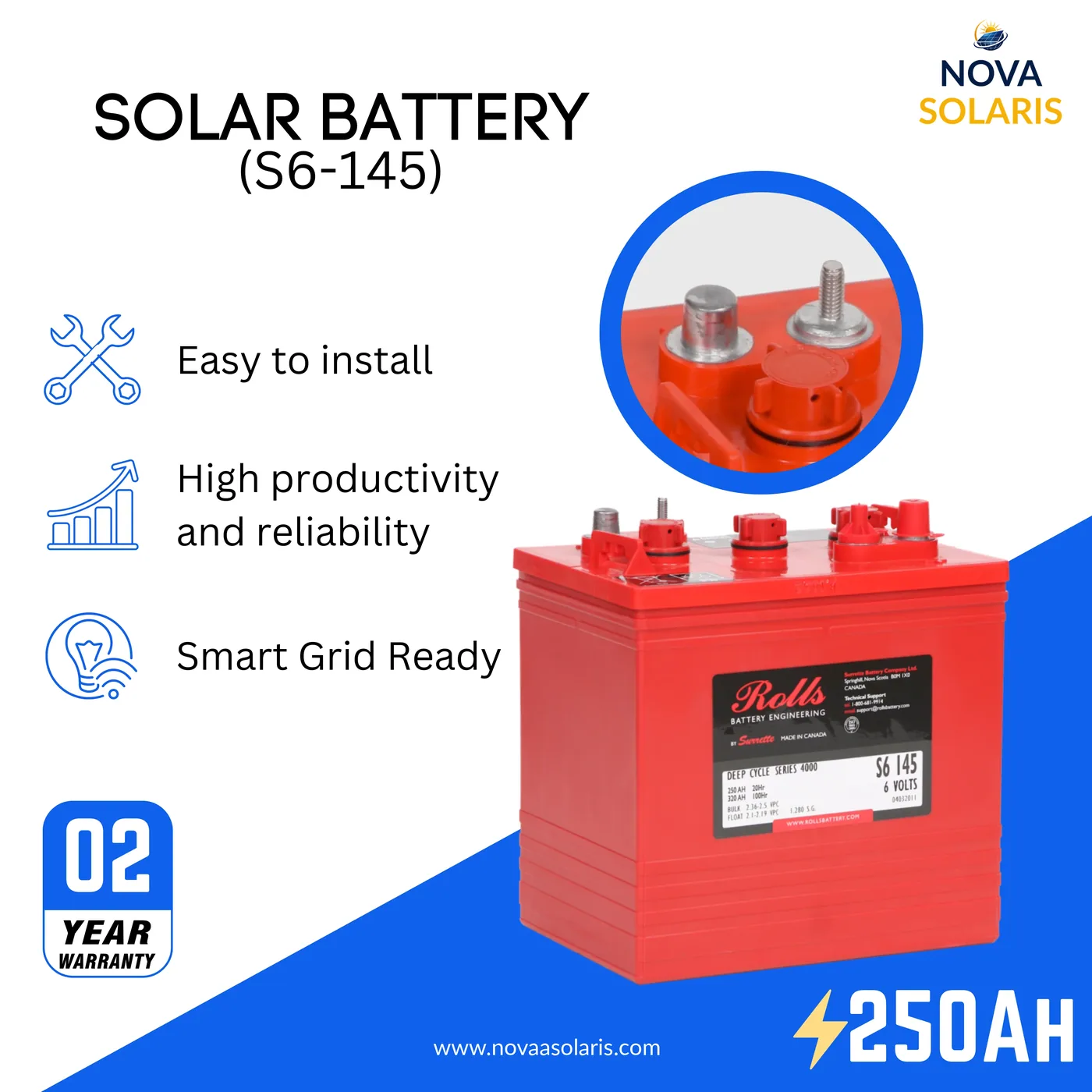

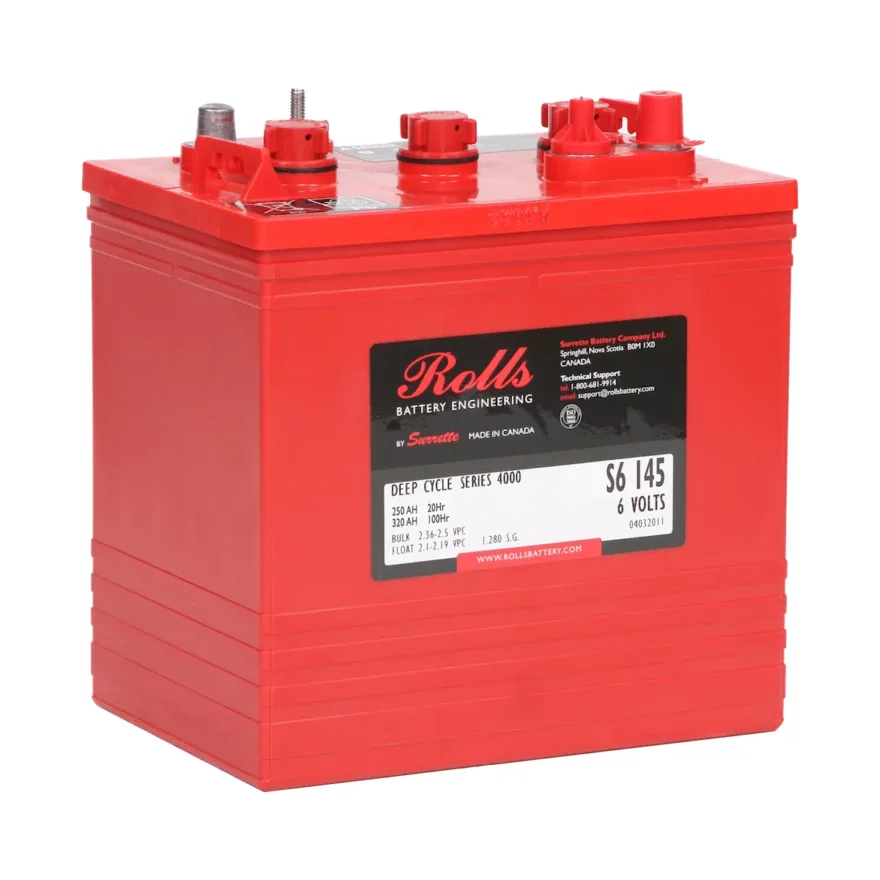

Rolls Surrette S6-145 6VDC 250Ah Flooded Deep Cycle Battery
$308.09 USD
SKU: S6-145
- Capacity: 250Ah
- Product Type: Renewable Energy
Quantity
1
Shipping & Returns Policy
Orders are processed within 24-72 business hours. Freight items ship from the closest available warehouse; a Freight Terms & Conditions form is sent for review and signature before dispatch. Returns follow our Return Merchandise Authorization (RMA) policy.
Description
Rolls Surrette Battery S6 145
Product measurements & weights are calculated based on sample data. Individual specifications are subject to vary due to the manufacturing process & battery components.
Technical Specifications:
- Weight: 32 kg/70.5 lbs
- Length: 259 mm/10.19"
- Width: 181 mm/7.13"
- Height Incl. Term.: 290 mm/11.4"
- Electrolyte Reserve: 28.6 mm/1.125"
- Container: Polypropylene
- Cover: Polypropylene
- Handles: Top Molded Strap Brackets
- Series: 4000
- Volts: 6
- Design: GC2H
- Cells: 3
- Plates/Cell : 17
- Terminal Type: DT
- Included Hardware: Stainless Steel K-Lock Nut
- Size & Thread: 5/16"-18
- Charge Voltage Range: 2.45-2.5 V/cell @ 25°C (77°F)
- Float Voltage Range: 2.25 V/cell @ 25°C (77°F)
- Recommended Charge Current: 30 A
- Maximum Charge Current: 50 A
- Self-Discharge Rate: 5%-10% per month at 25°C (77°F)
- Cold Crank Amps (CCA) 0°F / -18°C: 710
- Marine Crank Amps (MCA) 32°F / 0°C: 888
- Reserve Capacity (RC @ 25A): 484 Minutes
- Reserve Capacity (RC @ 75A) 127 Minutes
- Capacity AMP @ 20 Hour Rate: 250 Ah
Resources

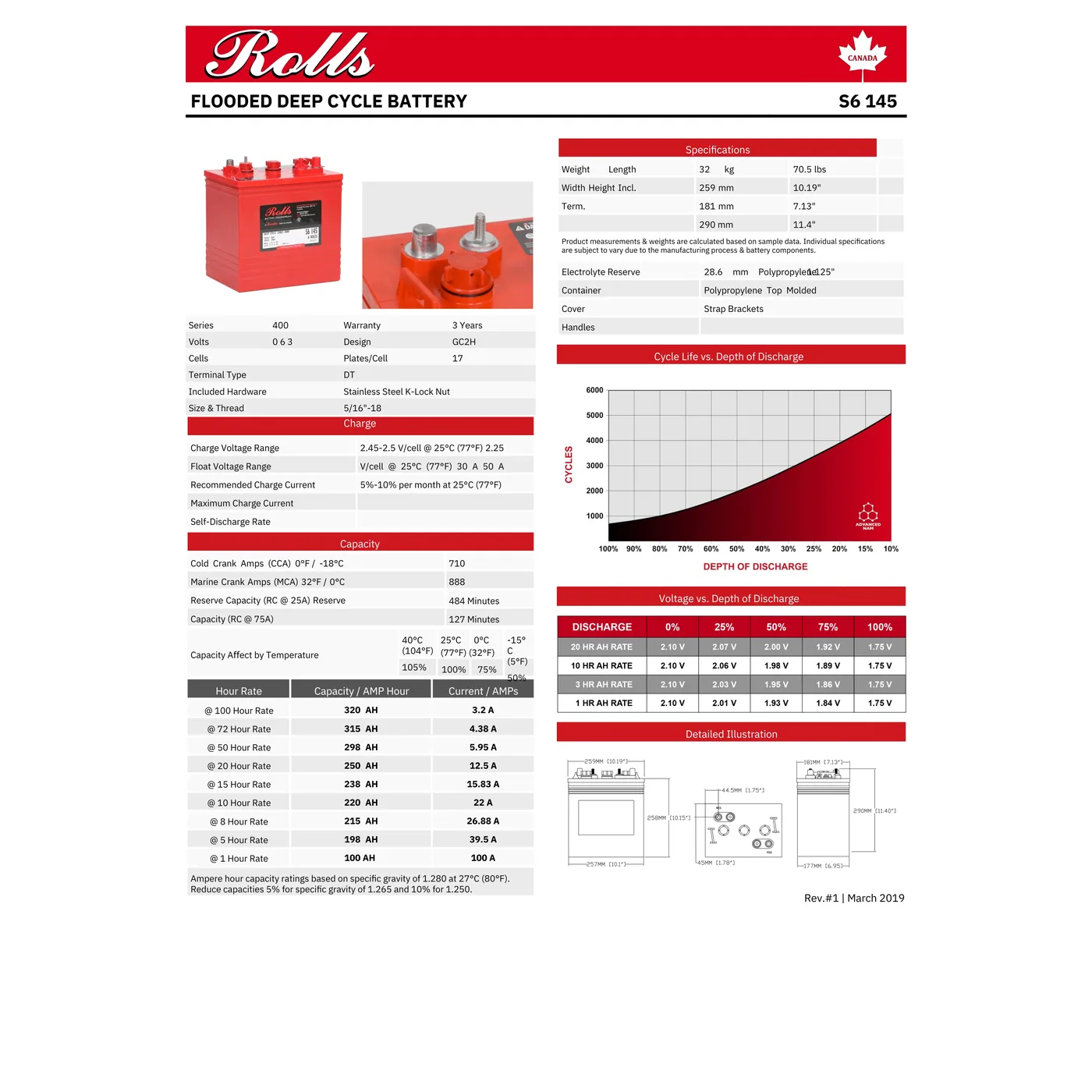

Datasheet
Quick Installation Guide
No installation guide available. Email support@novaasolaris.com for file request.
Warranty
3 Years Warranty.
