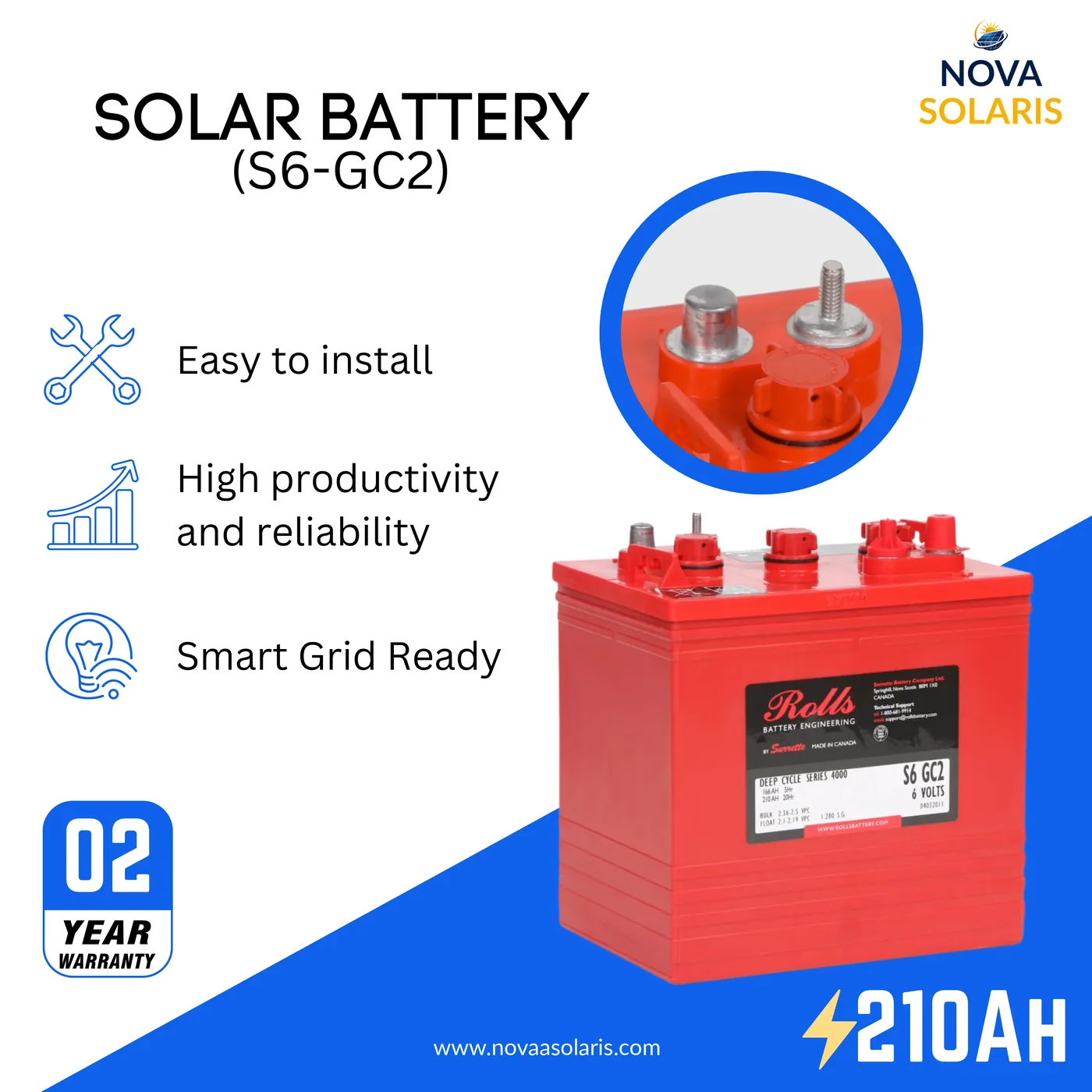

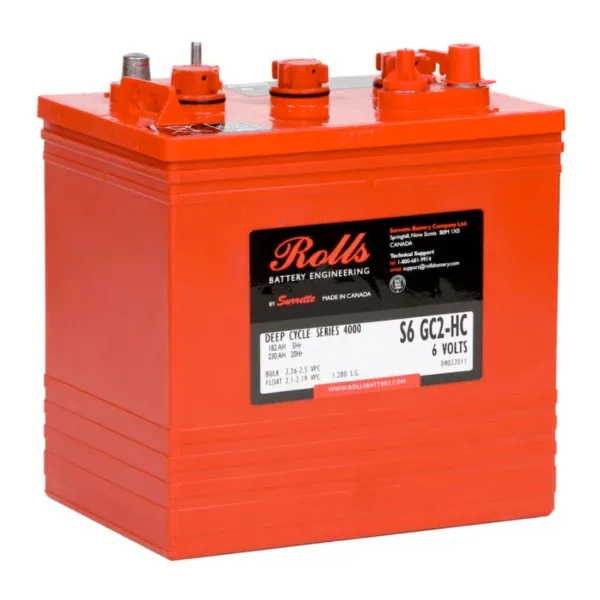

Rolls Surrette S6-GC2 6VDC 210Ah Flooded Deep Cycle Battery

Surrette Rolls S6 GC2 210Ah 6V Flooded Deep Cycle Battery

The Surrette Rolls S6 GC2 Flooded Deep Cycle Battery is a durable, high-performance battery designed for reliable power in demanding applications. With a nominal voltage of 6 volts and a 210 Ah capacity at a 20-hour rate, this battery is ideal for golf carts, renewable energy systems, and other deep-cycle uses. Built for longevity, it features a robust 15-plate design per cell, maximizing cycle life. The S6 GC2 offers a reserve capacity of 406 minutes at 25 amps, ensuring dependable power when you need it most. With an IP-rated polypropylene case and integrated flame arrestor vent caps, this battery is built for safety and durability.

Technical Specifications:

• Weight: 28 kg/61.5 lbs
• Length: 259 mm/10.19"
• Width: 181 mm/7.13"
• Height Incl. Term.: 279 mm/11"
• Electrolyte Reserve: 57 mm/2.25"
• Container: Polypropylene
• Cover: Polypropylene
• Handles: Top Molded Strap Brackets
• Series: 4000
• Volts: 6
• Design:GC2
• Cells: 3
• Plates/Cell : 15
• Terminal Type: DT
• Included Hardware: Stainless Steel K-Lock Nutr
• Size & Thread: 5/16"-18
• Charge Voltage Range: 2.45-2.5 V/cell @ 25°C (77°F)
• Float Voltage Range: 2.25 V/cell @ 25°C (77°F)
• Recommended Charge Current: 25 A
• Maximum Charge Current: 40 A
• Self-Discharge Rate: 5%-10% per month at 25°C (77°F)
• Cold Crank Amps (CCA) 0°F / -18°C: 547
• Marine Crank Amps (MCA) 32°F / 0°C: 684
• Reserve Capacity (RC @ 25A): 406 Minutes
• Reserve Capacity (RC @ 75A): 107 Minutes
• Capacity AMP @ 20 Hour Rate: 210 Ah

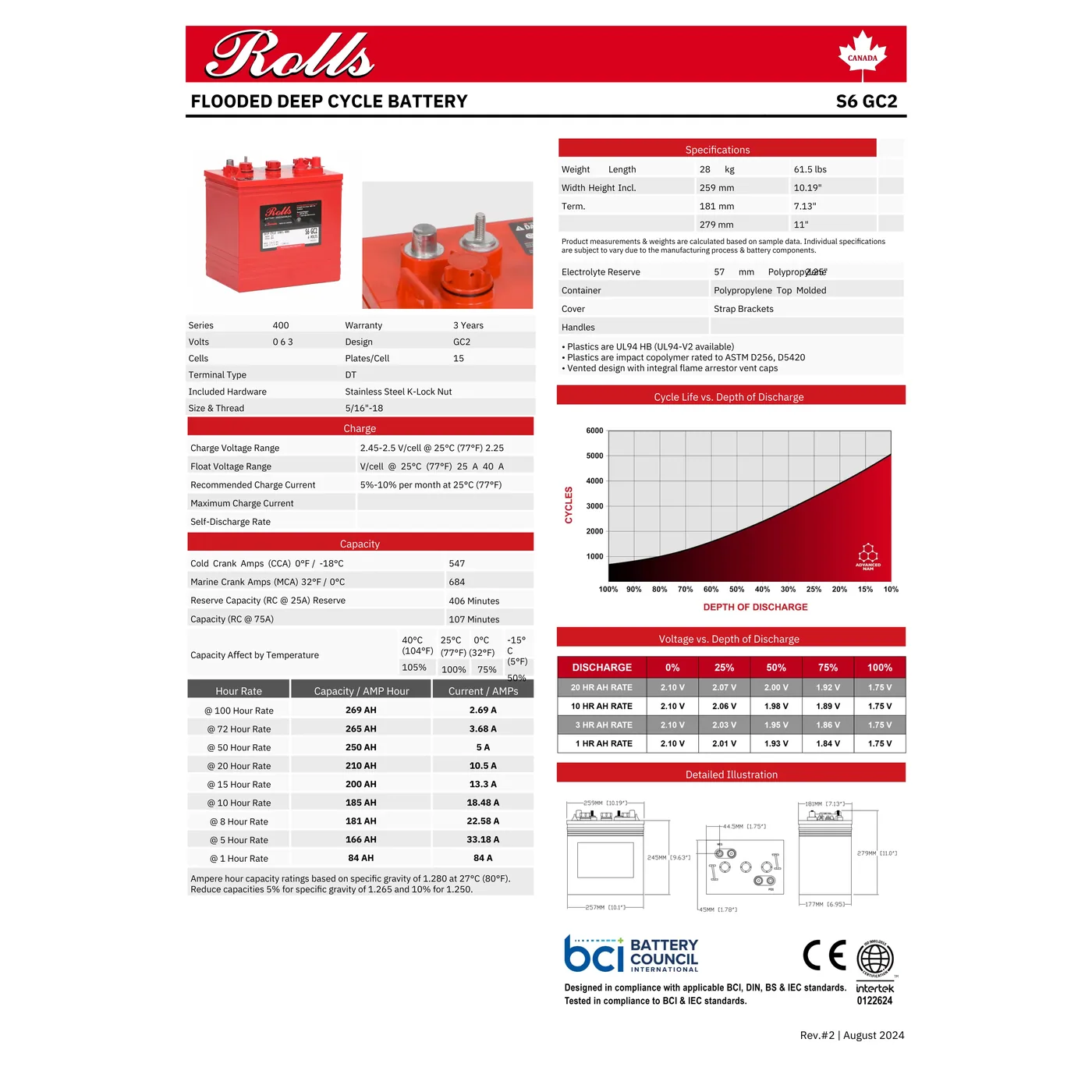

Datasheet

Quick Installation Guide

No installation guide available. Email support@novaasolaris.com for file request.

Warranty

3 Years Warranty.
