Rolls Surrette
Rolls Surrette S6-L16-SC 6VDC 487Ah Deep Cycle Battery
$596.84 USD
SKU: S6-L16-SC
- Capacity: 487Ah
- Product Type: Renewable Energy
Quantity
1
Shipping & Returns Policy
Orders are processed within 24-72 business hours. Freight items ship from the closest available warehouse; a Freight Terms & Conditions form is sent for review and signature before dispatch. Returns follow our Return Merchandise Authorization (RMA) policy.
Description
Rolls Surrette Battery S6 L16-SC
Rolls Surrette S6 L16-SC - 6 Volts, 487 Amp-hours
Technical Specifications:
- Weight: 56.5 kg/124.5 lbs
- Length: 31.8 cm/12.5"
- Width: 18.1 cm/7.13"
- Height Incl. Term.:42.55 cm/16.75"
- Electrolyte Reserve: 57 mm/2.25"
- Container: High Density Polypropylene
- Cover: High Density Polypropylene
- Handles: Rope / Plastic Handle
- Series: 4000
- Volts: 6
- BCI: L16
- Cells: 3
- Plates/Cell : 18
- Terminal Type: LT
- Included Hardware: S/S Hex Cap Screw, Nut, Lock & Flat Washer
- Size & Thread: 5/16"-18
- Cables Optional: 19" 4/0 interconnect cable
- Charge Voltage Range: 2.45-2.5 V/cell @ 25°C (77°F)
- Float Voltage Range: 2.25 V/cell @ 25°C (77°F)
- Recommended Charge Current: 55 A
- Maximum Charge Current: 95 A
- Self-Discharge Rate: 5%-10% per month at 25°C (77°F)
- Cold Crank Amps (CCA) 0°F / -18°C: 1169
- Marine Crank Amps (MCA) 32°F / 0°C: 1462
- Reserve Capacity (RC @ 25A): 943 Minutes
- Reserve Capacity (RC @ 75A): 248 Minutes
- Ampere Hours @ 20 Hour Rate : 487Ah
- Capacity AMP @ 20 Hour Rate: 487 Ah
Resources

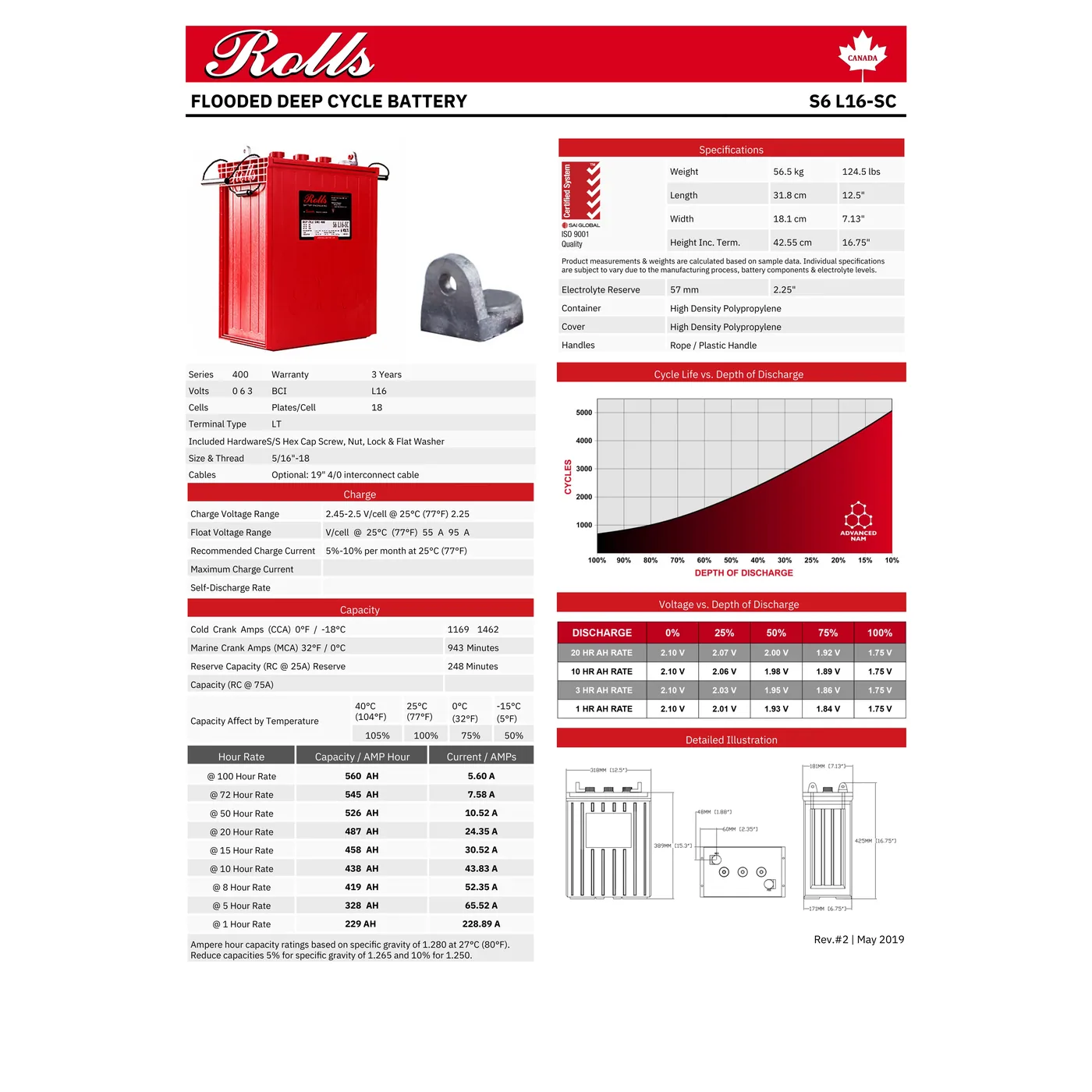

Datasheet
Quick Installation Guide
No installation guide available. Email support@novaasolaris.com for file request.
Warranty>
3 Years Warranty.
