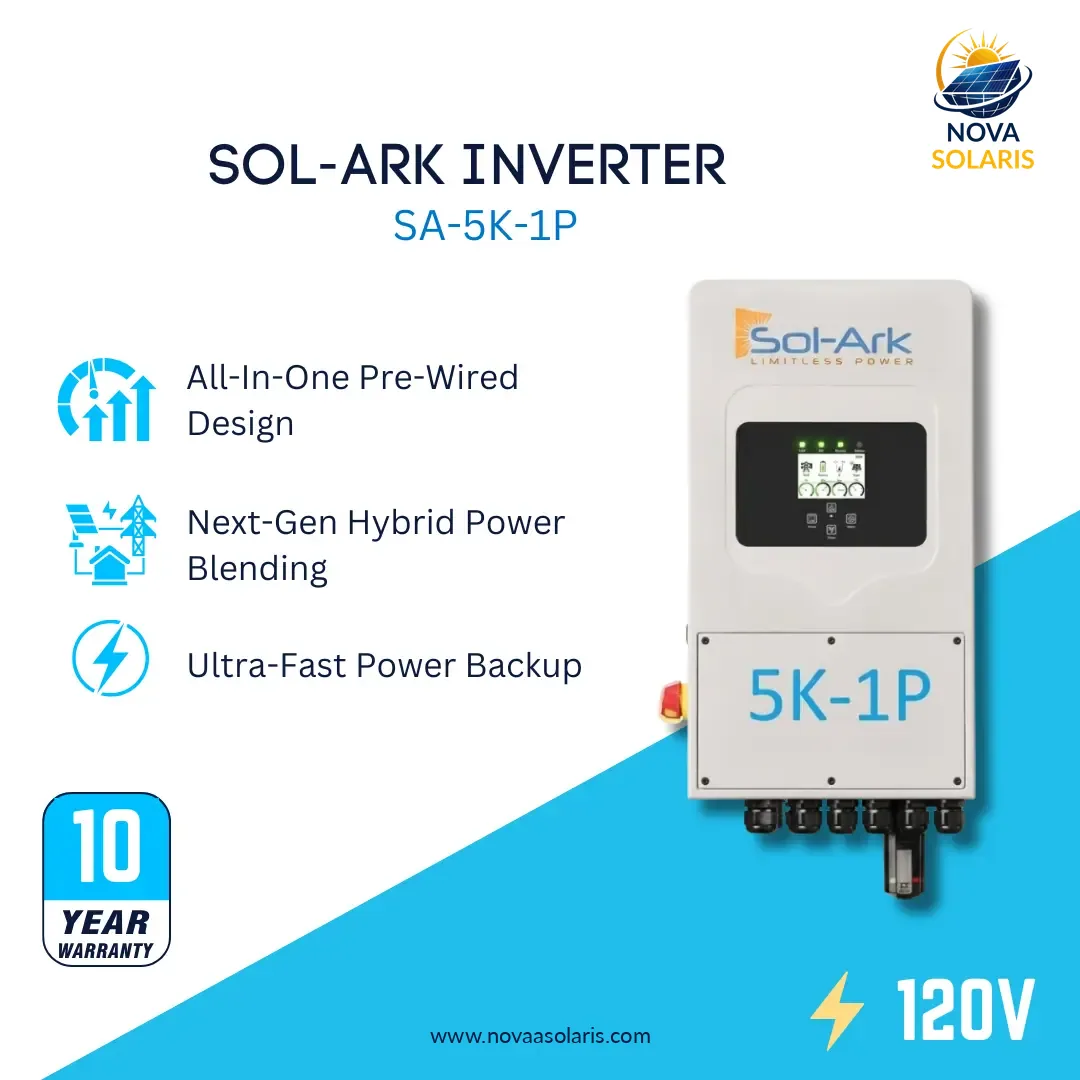

Sol-Ark 5kW Inverter 120VAC, 48VDC, (SA- 5K-1P)
SKU: SA-5K-1P
- Product Type: Hybrid / Grid-Tied / Off-Grid
Shipping & Returns Policy
Orders are processed within 24-72 business hours. Freight items ship from the closest available warehouse; a Freight Terms & Conditions form is sent for review and signature before dispatch. Returns follow our Return Merchandise Authorization (RMA) policy.
Description
Sol-Ark 5kW Inverter 120VAC, 48VDC, Indoor/Outdoor NEMA-3R (SA-5K-1P )
Simple to install with touchscreen interface
Grid Tied Mode: Sell your power to reduce electric bill
Meter Zero Mode: Zero your electric bill without a smart meter
Time of Use: Use solar and batteries to minimize grid power usage
Programmable Smart Load Mode
DC and AC Coupling
Works with a wide range of battery chemistries - Lead acid to Lithium
Technical Specifications:
- AC Voltage: 120V single phase
- AC frequency: 60/50 Hz
- Max allowed PV power: 10,400 Watts
- MPPT Voltage range: 125-425V
- PV input Voltage: 370V (100~500V)
- PV input current: 20A + 20A
- Rated AC output: 4,800 Watt
- Inverter efficiency: 97.6%
- Weight: 51 lbs
- Dimensions (H x W x D): 22.8" x 13.0" x 9.1"
Downloads

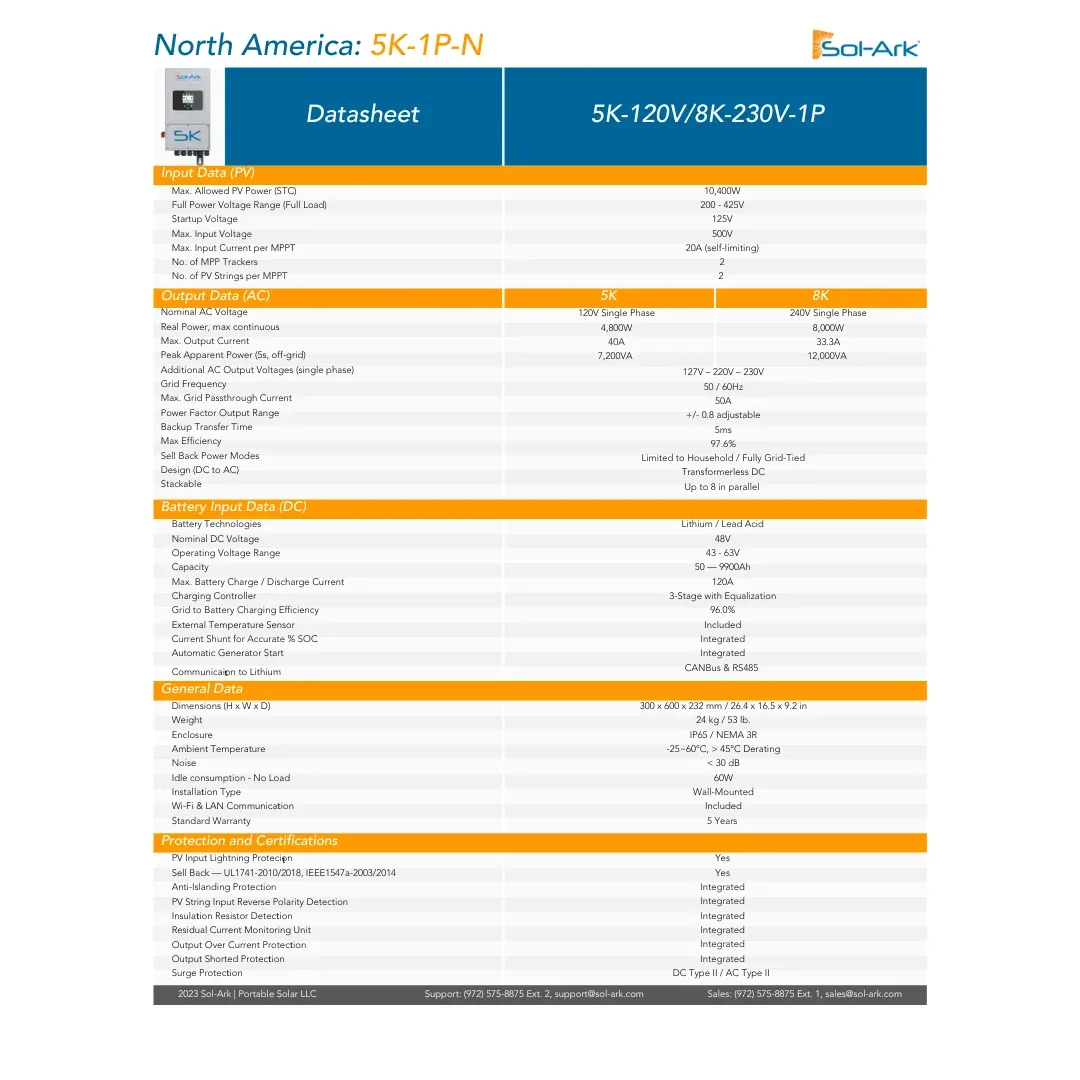

Datasheet
✔️ Datasheet
Quick Installation Guide
No installation guide available. Email support@novaasolaris.com for file request
Warranty
10 Years Warranty
