Sol-Ark
Sol-Ark-8K Hybrid Inverter (SA-8K-2P)
$5,532.87 USD
SKU: SA-8K-2P
Quantity
1
Shipping & Returns Policy
Orders are processed within 24-72 business hours. Freight items ship from the closest available warehouse; a Freight Terms & Conditions form is sent for review and signature before dispatch. Returns follow our Return Merchandise Authorization (RMA) policy.
Description

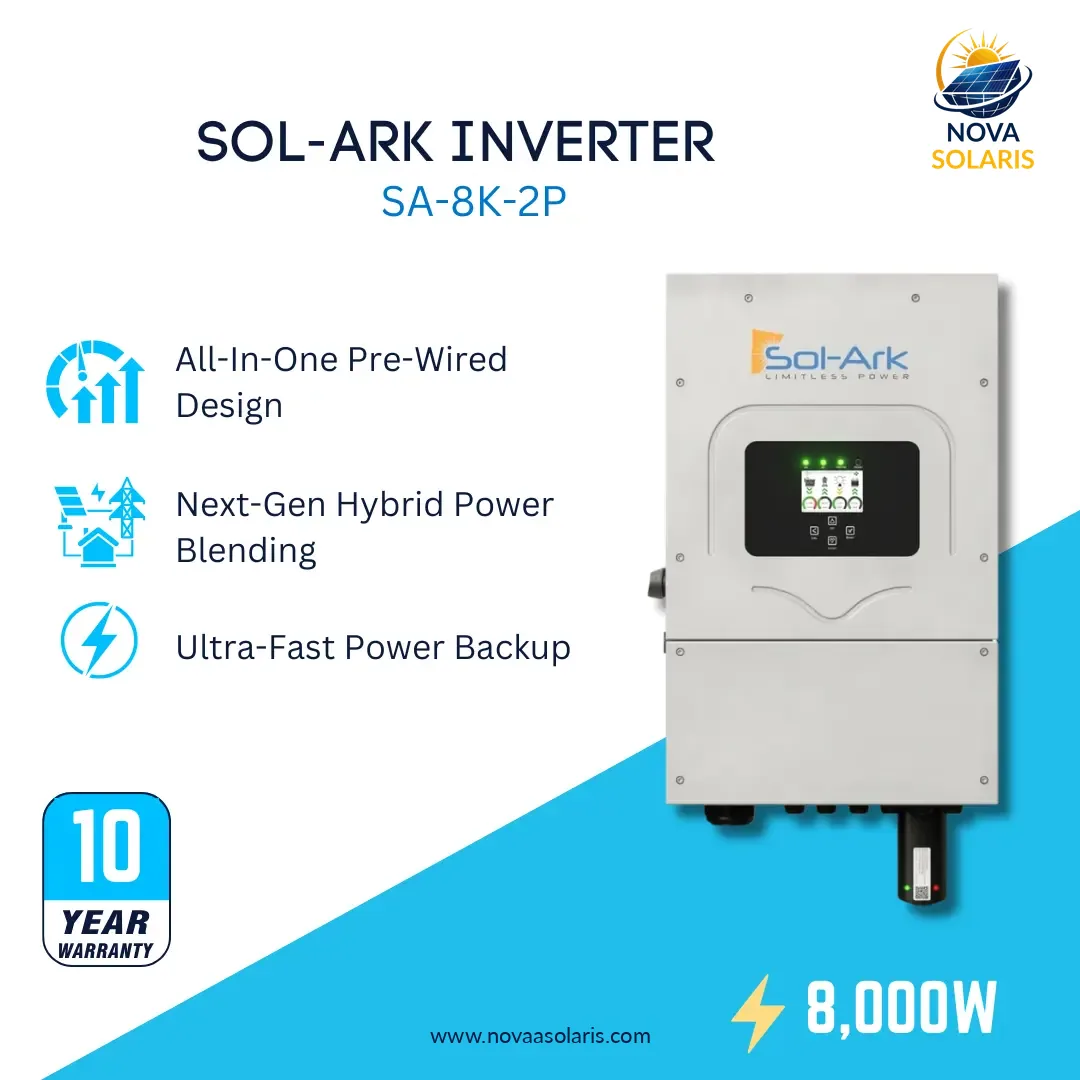

Sol-Ark 8K-2P Hybrid Inverter System
Sol-Ark 8K Pre-Wired Hybrid Inverter System is an all-in-one system that includes an inverter, charger controller, and a display with remote monitoring. The Sol-Ark is simple to install to a Grid-tied, Off-Grid, or Battery Backup solar system, while being able to manage power to and from Solar, Battery, Grid, Loads, and Generator.
Features
- Simple to install with touchscreen interface
- Grid Tied Mode: Sell your power to reduce electric bill
- Meter Zero Mode: Zero your electric bill without a smart meter
- Time of Use: Use solar and batteries to minimize grid power usage
- Programmable Smart Load Mode
- DC and AC Coupling
- Works with a wide range of battery chemistries- Lead acid to Lithium
Technical Specifications:
- Max. Allowed PV Power (STC): 11,000W
- Nominal Voltage Range: 175 – 425V
- Startup Voltage: 125V
- Max. Input Voltage: 500V
- Max. Input Current per MPPT: 18A (self-limiting)
- No. of MPP Trackers: 2
- No. of PV Strings per MPPT: 2
- Max. AC Coupled Input: 9,600W
- Nominal AC Voltage: 120/240V, 120/208V, 220V
- Grid Frequency: 50 / 60Hz
- Real Power, max continuous: 8,000W
- Max. Output Current: 33A
- Peak Apparent Power (10s, off-grid): 16,000VA @ 240V
- Peak Apparent Power (100ms, off-grid): 25,000VA @ 240V
- Max Output Fault Current (100ms): 104A
- Max. Grid Passthrough Current: 63A
- Power Factor Output Range: +/- 0.9 adjustable
- Backup Transfer Time: 4ms
- CEC Efficiency: 96.5%
- Max Efficiency: 97.5%
- Design (DC to AC): Transformerless DC
- Stackable: No
- Battery Technologies: Lithium / Lead Acid
- Nominal DC Voltage: 48V
- Operating Voltage Range: 43 – 63V
- Capacity: 50 — 9900Ah
- Max. Battery Charge / Discharge Current: 185A
- Charging Controller: 3-Stage with Equalization
- Grid to Battery Charging Efficiency: 96.0%
- External Temperature Sensor: Included
- Current Shunt for Accurate % SOC: Integrated
- Automatic Generator Start: Integrated
- Communication to Lithium: CANBus & RS485
- Dimensions (H x W x D): 750 x 450 x 254 mm / 29.5 x 17.7 x 10 in
- Weight: 35.4 kg / 78 lb.
- Enclosure: IP65 / NEMA 3RAmbient Temperature: -25~55°C, > 45°C Derating
- Idle consumption – No Load: 60W
Downloads
Datasheet
✔️ Datasheet
Quick Installation Guide
✔️ Quick Installation Guide
Warranty
10 Years Warranty
