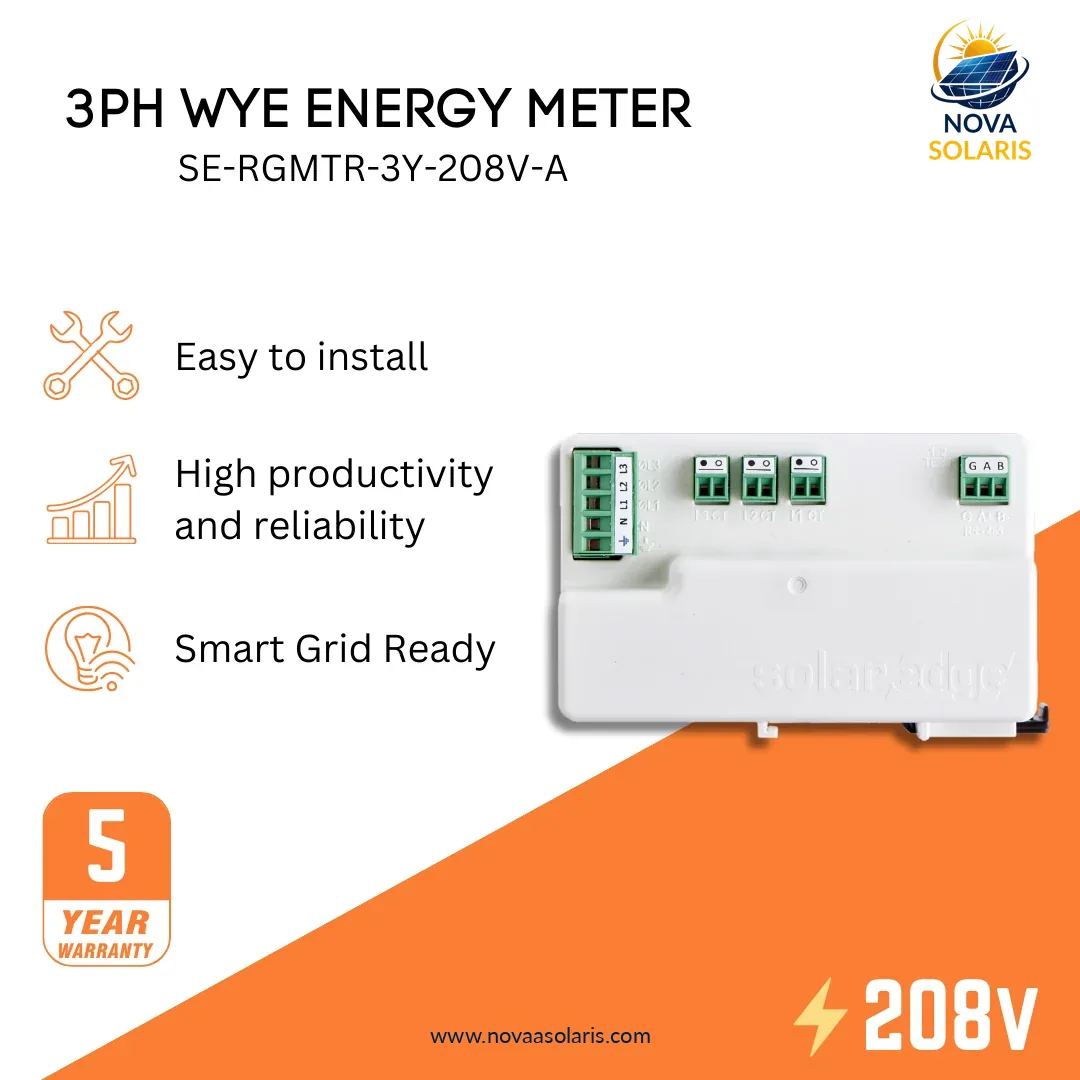

3PH Wye 208V Meter, Commercial, ANSI C12.20 CLASS
SKU: SE-RGMTR-3Y-208V-A
- Product Type: Energy Meter
Shipping & Returns Policy
Orders are processed within 24-72 business hours. Freight items ship from the closest available warehouse; a Freight Terms & Conditions form is sent for review and signature before dispatch. Returns follow our Return Merchandise Authorization (RMA) policy.
PRODUCT OVERVIEW
Revenue-Grade Accuracy. Smart Grid Ready.
The SE-RGMTR-3Y-208V-A is a high-accuracy, 3-Phase 4-Wire Wye revenue-grade meter designed for seamless grid integration. Featuring exceptional ANSI C12.20 Class 0.5 system accuracy and native RS485 Modbus communication, it delivers reliable energy monitoring for robust commercial and residential applications.
📊 ANSI C12.20 Class 0.5
🎛️ 3 Phase 4 Wire Wye
🔌 RS485 Modbus RTU
🎚️ DIN Rail Mounted
🛡️ IP65 / NEMA Rated
ELECTRICAL & COMMUNICATION SPECIFICATIONS
Nominal Voltage (L-L / L-N) 208-240 / 120-277 Vac
Operating Voltage (Line to Line) 187 - 264 Vac
Operating Voltage (Line to Neutral) 108 - 305 Vac
AC Frequency Range 55 - 65 Hz
Power Consumption 1 - 1.5 W (Typical) / 3 W (Max)
System Accuracy ANSI C12.20 Edition 2010
Communication Interface RS485 half-duplex (3 wires: A, B, GND)
Response Time ≤ 1 sec
Default Modbus Device ID 1
STANDARD COMPLIANCE
- Safety: UL 61010-1, CAN/CSA-C22.2 No. 61010-1-04, IEC 61010-1
- Immunity: EN 61326, EN 61000-4-2 through EN 61000-4-6, EN 61000-4-11
- Emissions: FCC Part 15 Class B, EN 55022 Class B
INSTALLATION SPECIFICATIONS
- • Dimensions: 4.40 × 1.38 × 2.95 in
- • Weight: 0.45 lb
- • Mounting Type: DIN Rail
- • Temperature Range: -40°F to +185°F
- • Protection Rating: IP20 (Indoor) / IP65 (Outdoor in NEMA 3R/4 enclosure)
Downloads

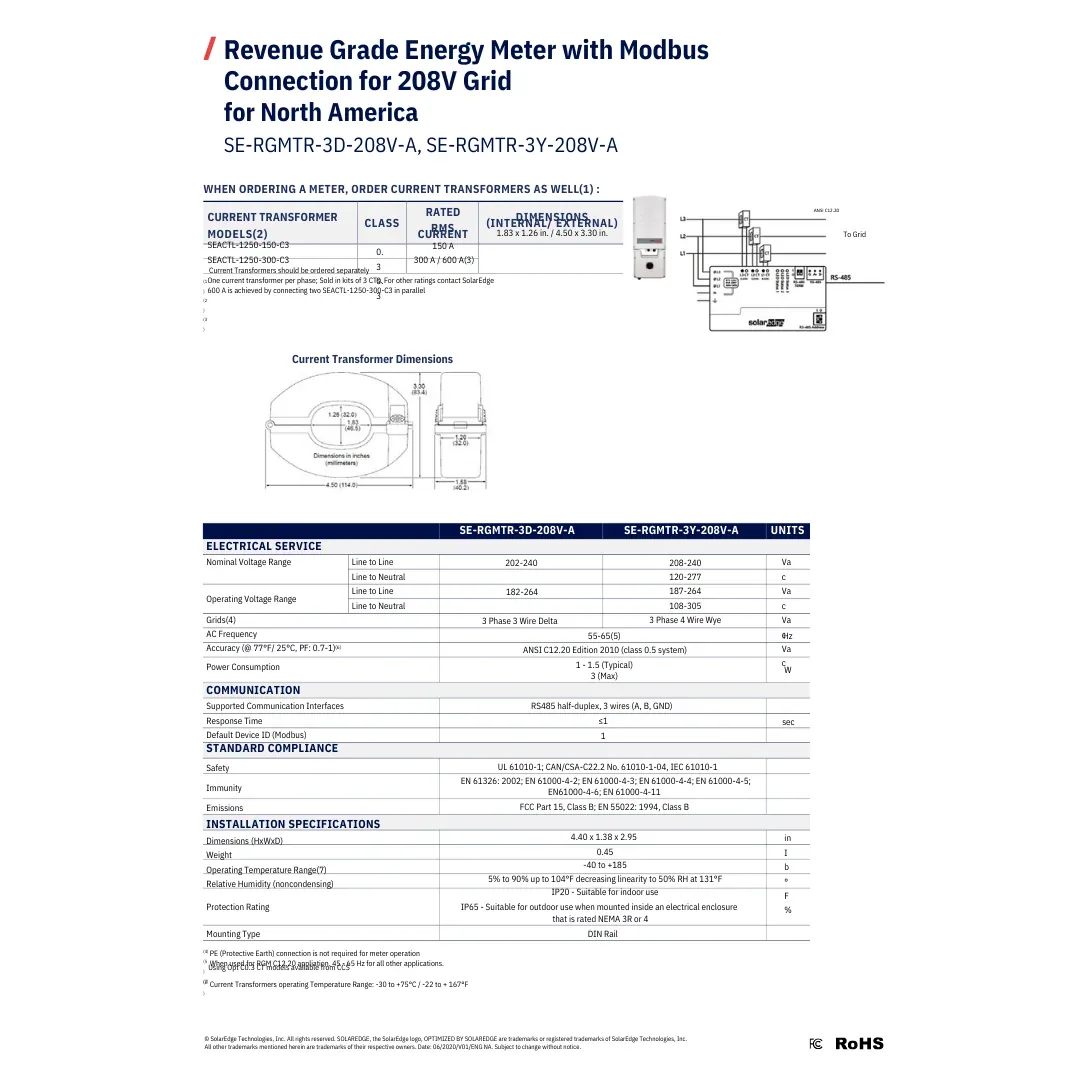

📄 SE-RGMTR-3Y-208V-A Datasheet
