3PH

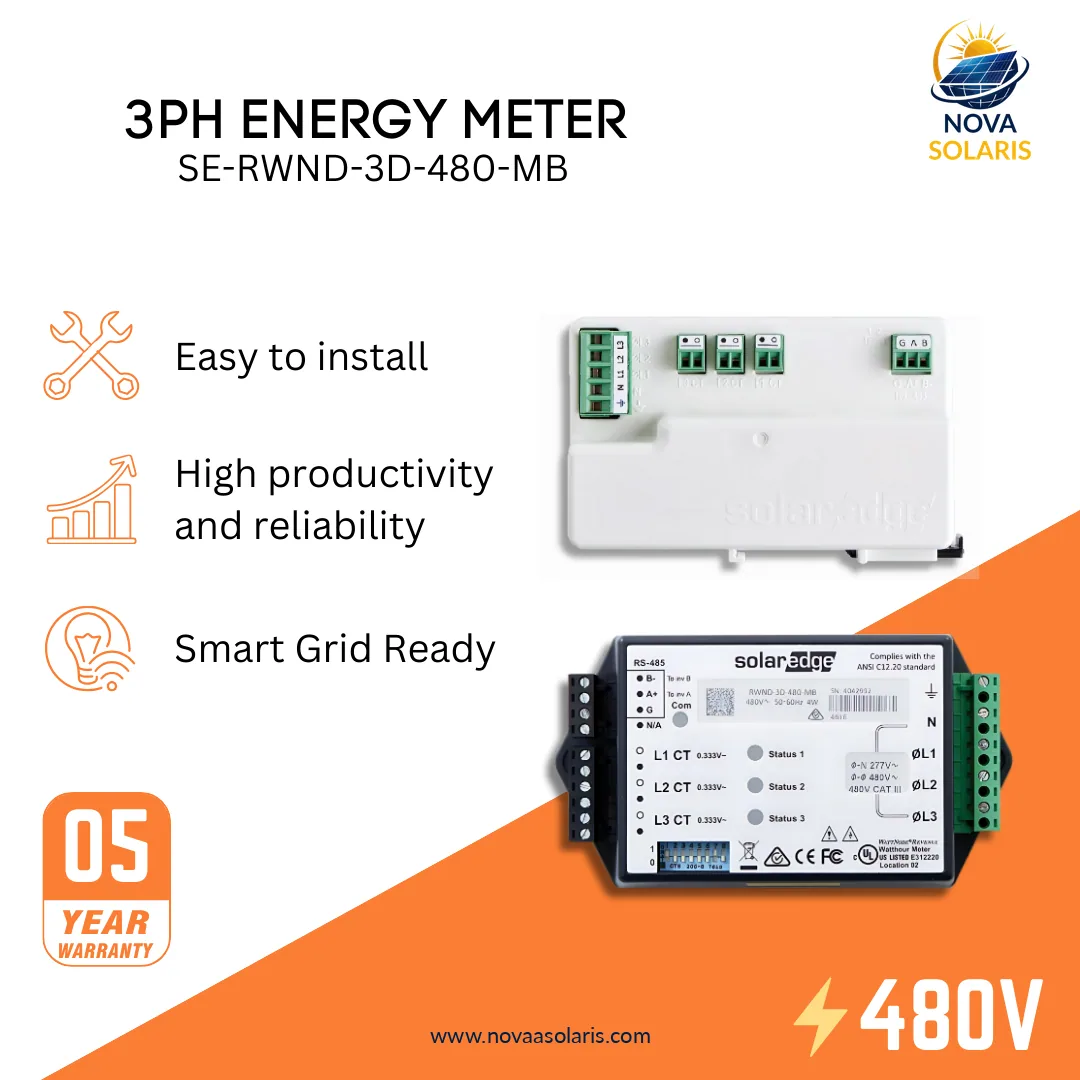

3PH Delta, 480V Meter, Commercial, ANSI C12.20 CLASS 05
$553.82 USD
SKU: SE-RWND-3D-480-MB
- Weight: 120.0 lbs
Quantity
1
Shipping & Returns Policy
Orders are processed within 24-72 business hours. Freight items ship from the closest available warehouse; a Freight Terms & Conditions form is sent for review and signature before dispatch. Returns follow our Return Merchandise Authorization (RMA) policy.
Description
3PH Delta, 480V Meter, Commercial, ANSI C12.20 CLASS 05
Supports RS485 120Ω line termination
Supports commercial and utility-size installations
Small and easy to install - fits in standard electrical panel
Communicates over RS485 to provide monitoring data
High accuracy revenue grade meter readings for production monitoring
Technical Specifications
- Nominal Voltage Range (Line to Line): 480 Vac
- TOperating Voltage Range(Line to Line): 384-552 Vac
- AC Frequency: 48-62 Hz
- Grids(4)(5): 3 Phase 3 Wire Delta(5)
- MAccuracy (@ 77°F/ 25°C, PF: 0.7-1)(7): ANSI C12.20 Edition 2010 (class 0.5 system)
- Power Consumption: 1.8 (Typical) 4 (Max) W
- Dimensions (HxWxD) : 6.02 x 3.35 x 1.50 in
- Weight: 11 Ib
Resources

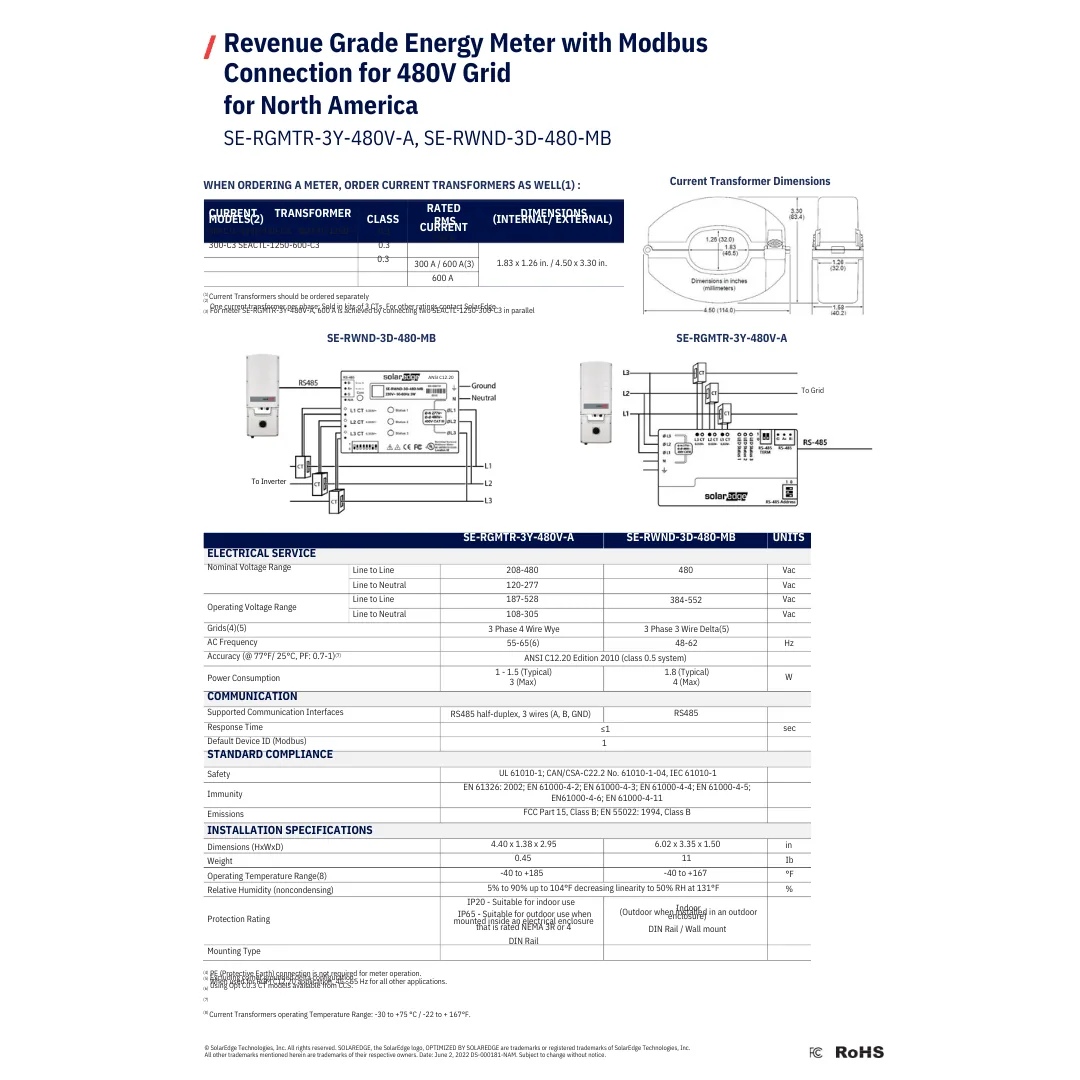

Datasheet
✔️ DatasheetQuick Installation Guide
No installation guide available. Email support@novaasolaris.com for file request.
Warranty
5 Years Warranty
