SolarEdge SE1000-SEN-TMOD-S2 4-20mA Module Temperature Sensor
$644.65 USD
SKU: SE1000-SEN-TMOD-S2
- Product Type: Weather Sensor
Quantity
1
Shipping & Returns Policy
Orders are processed within 24-72 business hours. Freight items ship from the closest available warehouse; a Freight Terms & Conditions form is sent for review and signature before dispatch. Returns follow our Return Merchandise Authorization (RMA) policy.
Description
SolarEdge Module Temperature Sensor - SE1000-SEN-TMOD-S2
Used to calculate site performance ratio. Irradiance, temperature and wind measurements.
Technical Specifications
- Product Line: SE Series
- Technology: Sensor
- Dimensions: 2.50 x 2.30 x 1.30 inches
- Weight: 0.77 lbs
- Enclosure Type: Pulver Coated Aluminium
- Operating Temperature: -40 to +80°C
- Protection Rating: IP67
- Control and Communication Gateway: Needed | Sold Separately; SE1000-CCG-G
- Electrical Output Range: 4-20mA
- Range: -40°C to +90°C
- Accuracy: 1% of Full Scale
Downloads

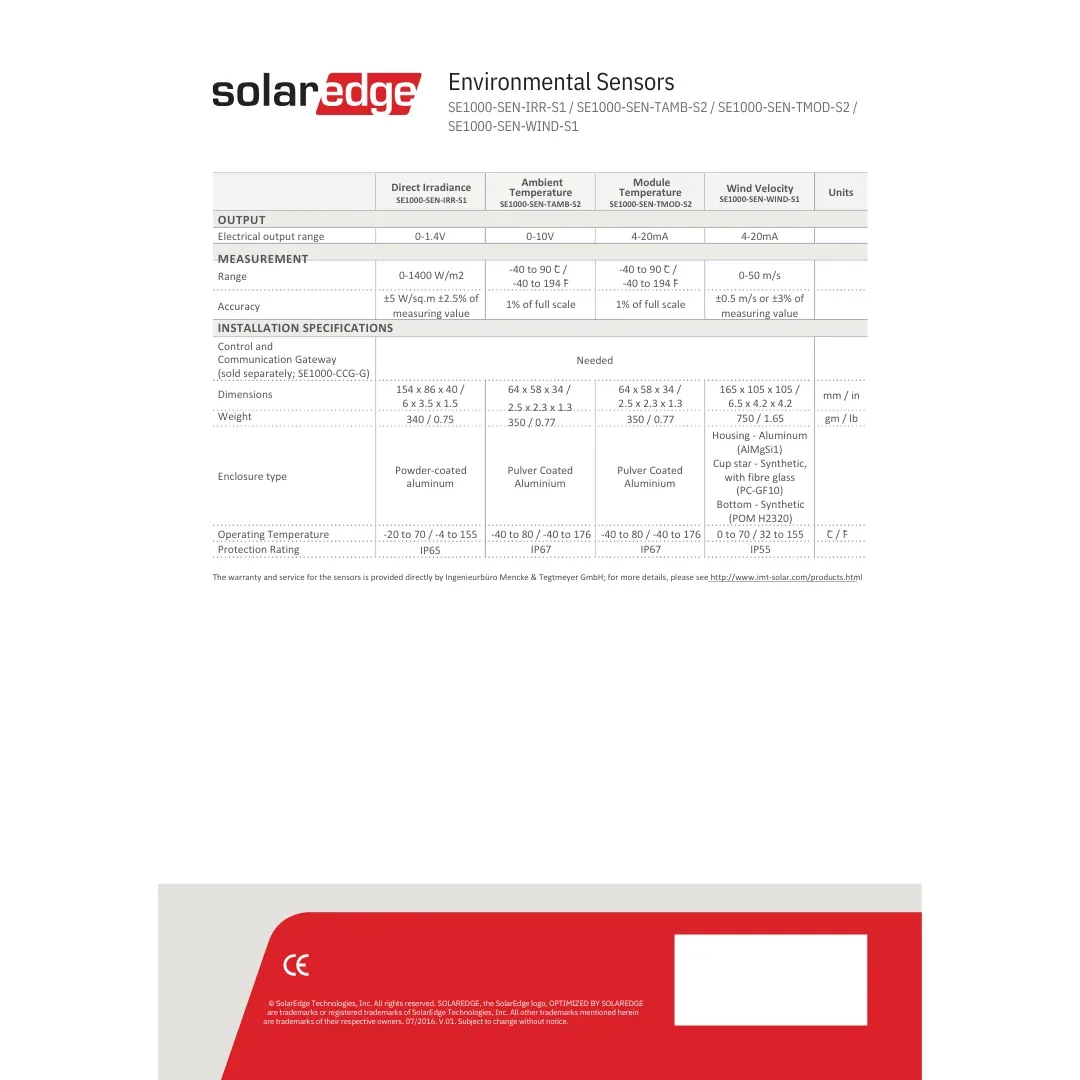

Datasheet
✔️ Datasheet
Quick Installation Guide
No installation guide available. Email support@novaasolaris.com for file request.
Warranty
✔️ Warranty
